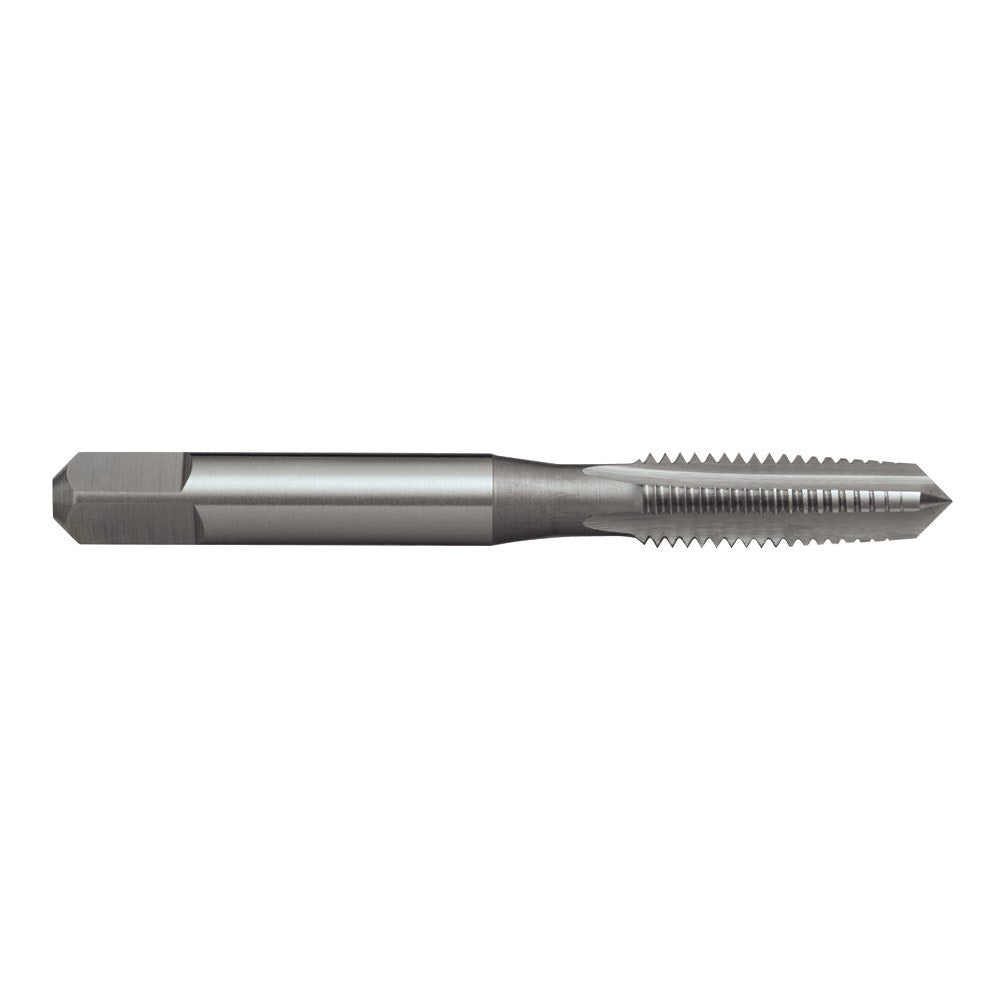

SUTTON M5.0 x 0.8 Straight Flute Taps - Taper T3840500

SUTTON M5.0 x 0.8 Straight Flute Taps - Taper T3840500

$48.00 AUD
$63.90 AUD $48.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Features

  • General-purpose use
  • Suitable for materials up to 1000N/mm²
  • Compatible with hand and machine operations
  • Maximum depth up to approx. 1 x d1
  • Designation: N
  • Finish: Brt
  • Shank Form: A
  • Type: Straight Flute
  • Thread Form: M
  • Lead: Taper
  • Material: HSS
  • Max Cut Depth: 1xD
  • Standard: ISO529
  • Nut Tolerance: ISO 2 / 6H
  • Drill Ø: 4.2
  • Pitch: 0.8

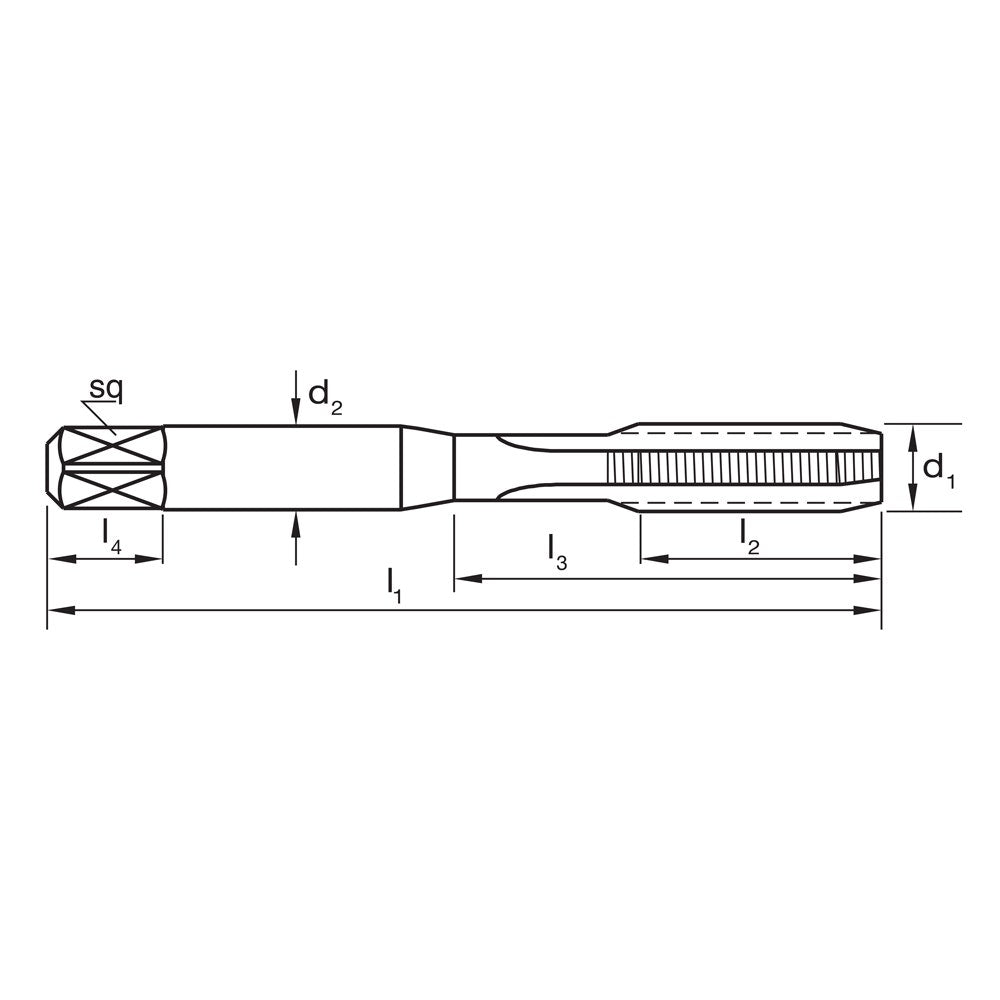

  • Size: d1: M5, 11: 58, l2: 16, d2: 5, sq: 4, l4: 7, z: 3

Specifications

  • Part No: T3840500
  • Barcode: 9311963001630
  • Brand: Sutton
  • Net Weight (kg): 0.007
  • Product Length (mm): 78
  • Product Width (mm): 10
  • Product Height (mm): 10
``
