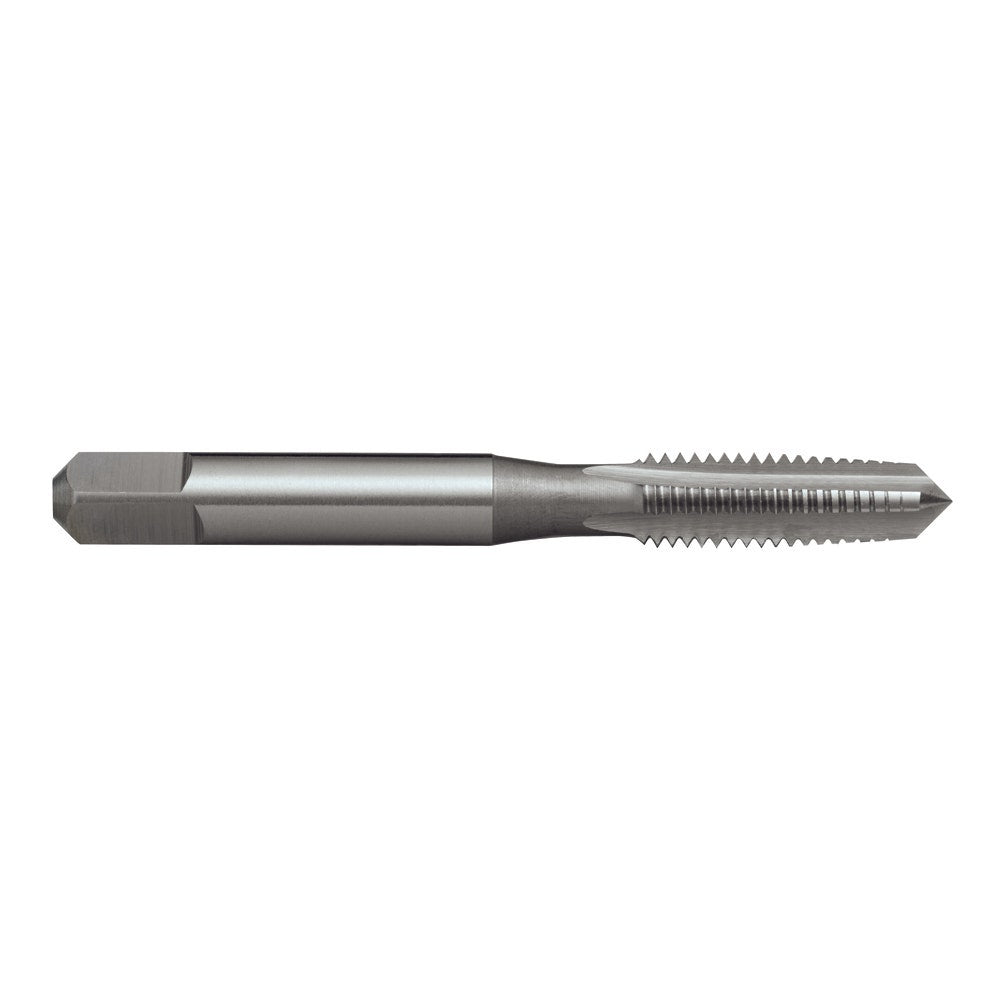

SUTTON M4.0 x 0.7 Straight Flute Taps - Taper T3840400

Features

• General-purpose use
• Compatible with materials up to 1000N/mm2
• Can be used for both hand and machine operations
• Max cut depth of approx. 1 x d1
• Designation: N
• Finish: Brt
• Shank Form: A
• Type: Straight Flute
• Thread Form: M
• Lead: Taper
• Material: HSS
• Standard: ISO529
• Nut Tolerance: ISO 2 / 6H
• Drill Ø: 3.3
• Pitch: 0.7
• d1 size: M4
• Product Length: 63 mm
• Product Width: 10 mm
• Product Height: 9 mm
• Net Weight: 0.006 kg

Specifications

• Part No: T3840400
• Barcode: 9311963001890
• Brand: Sutton
