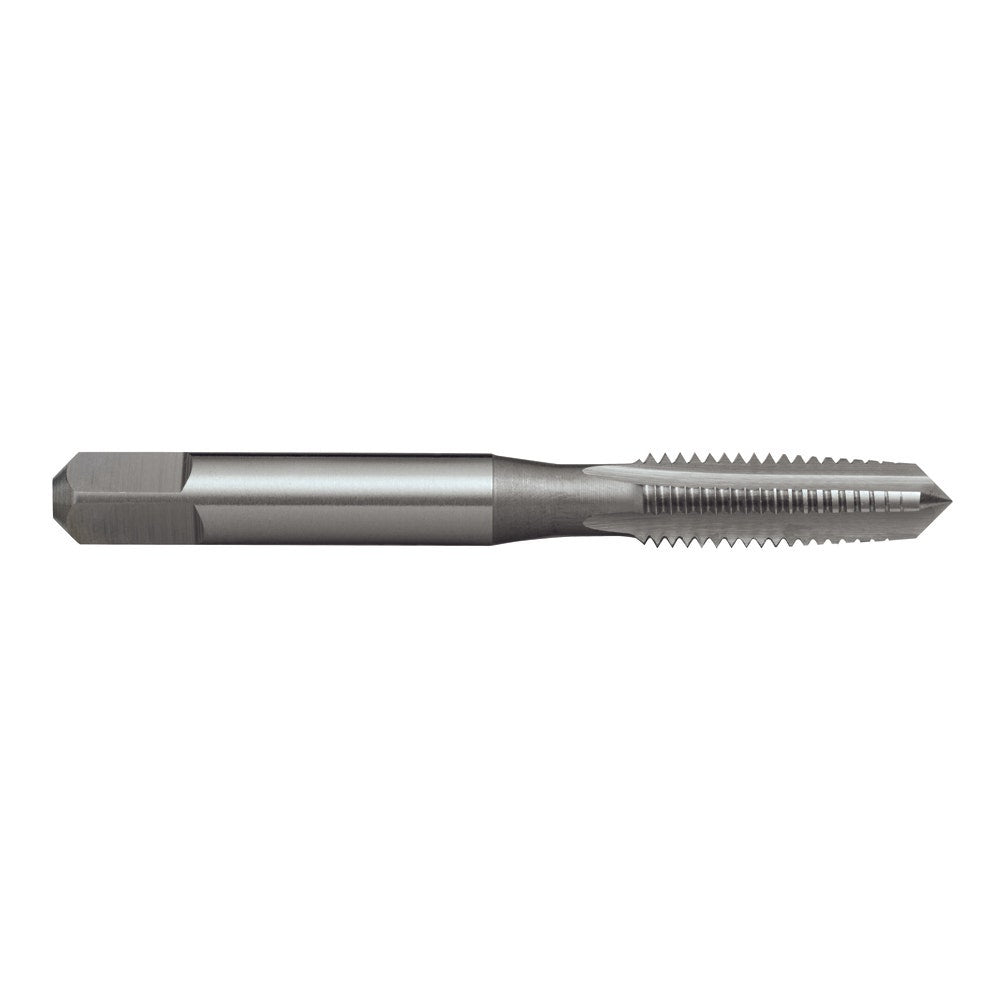

SUTTON M20 x 2.5 Straight Flute Taps - Taper T3842000

- General-purpose use
- Suitable for materials up to 1000N/mm2
- Suitable for both hand and machine operations
- Depths up to approx. 1 x d1

Specifications

- Designation: N
- Finish: Brt
- Shank Form: A
- Type: Straight Flute
- Thread Form: M
- Lead: Taper
- Material: HSS
- Max Cut Depth: 1xD
- x: als
- Standard: ISO529
- Nut Tolerance: ISO 2 / 6H
- Size:
- d1: M20
- 11: 112
- l2: 37
- d2: 14
- sq: 11.2
- l4: 14
- z: 4

- Drill Ø: 17.5
- Pitch: 2.5
