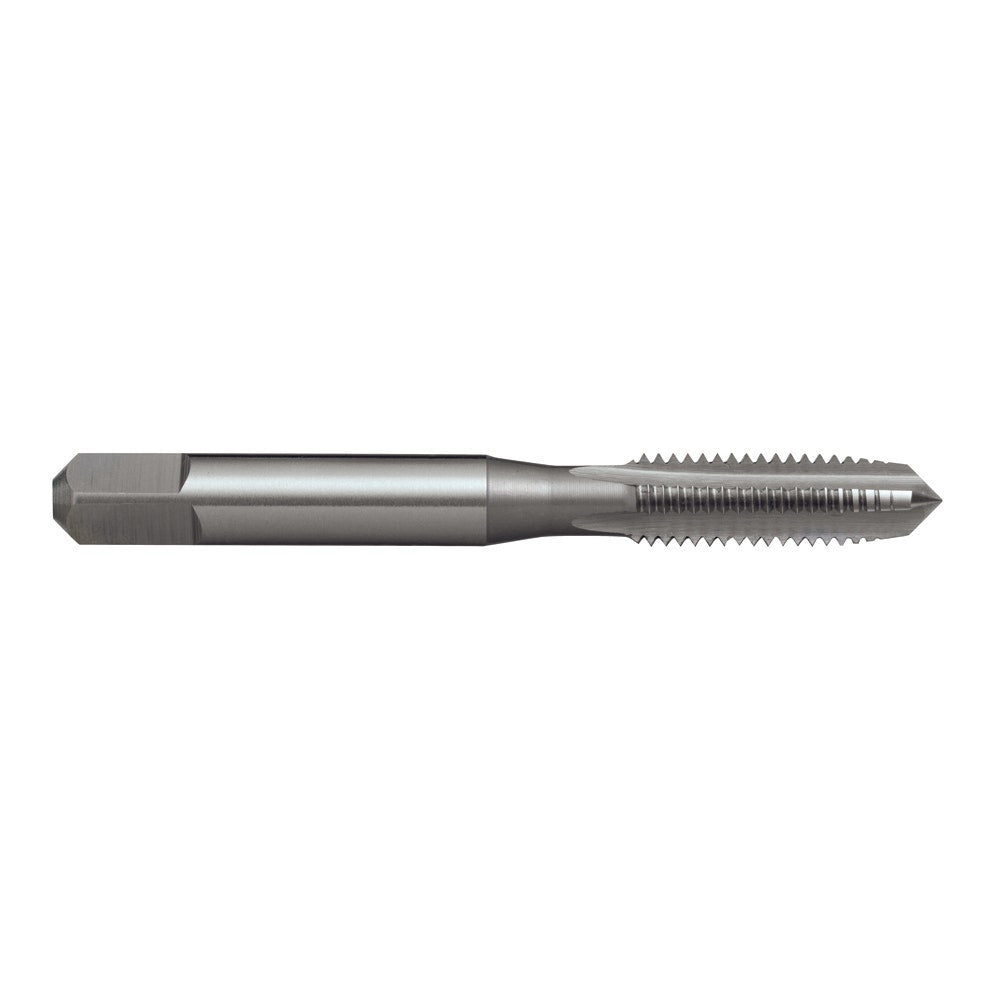

SUTTON M20 x 2.5 Straight Flute Taps - Intermediate T3852000

Features

• General-purpose use
• Suitable for materials up to 1000N/mm²
• Compatible with hand and machine operations
• Max cut depth of approx. 1 x d1
• Designation: N
• Finish: Brt
• Shank form: A
• Type: Straight Flute
• Thread form: M
• Lead: Intermediate
• Material: HSS
• Standard: ISO529
• Nut tolerance: ISO 2 / 6H
• Drill Ø: 17.5
• Pitch: 2.5

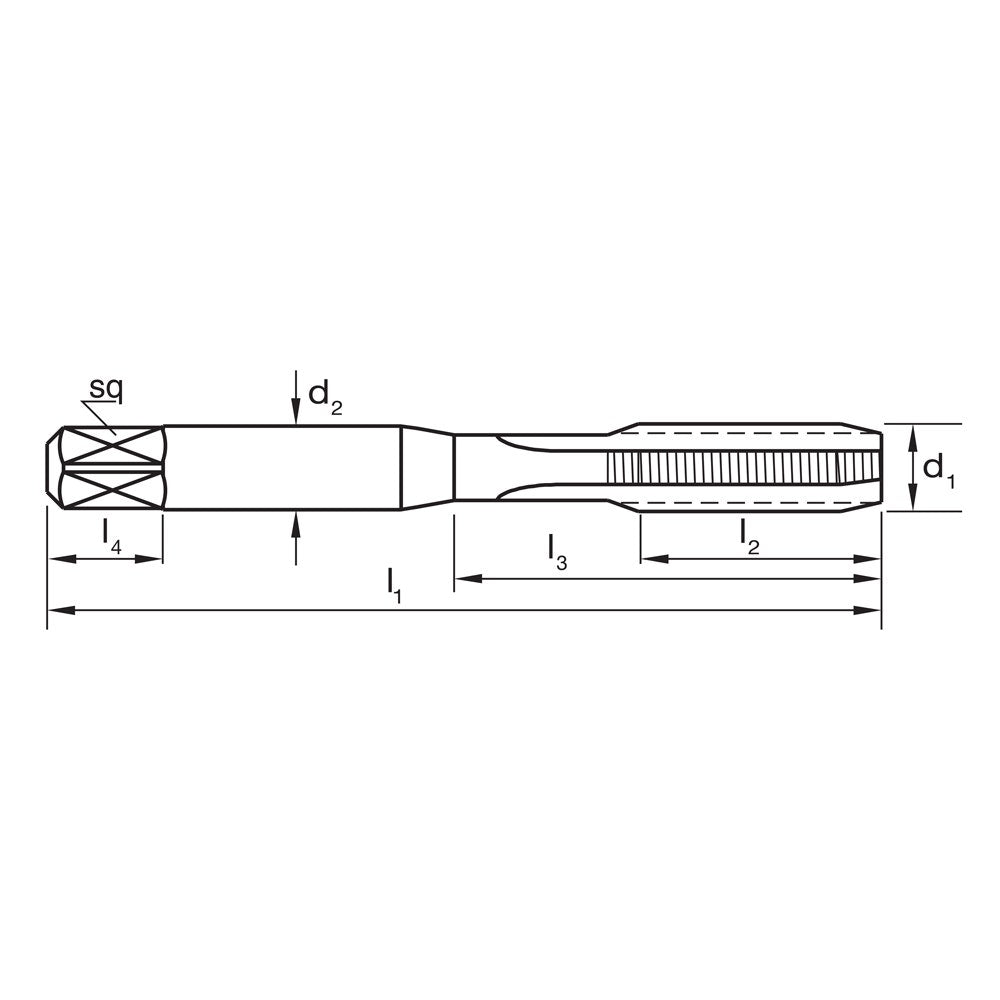

• Size details: d1: M20, l2: 37, d2: 14, sq: 11.2, l4: 14, z: 4

Specifications

• Part No: T3852000
• Barcode: 9311963004518
• Brand: Sutton
• Net Weight (kg): 0.14
• Product Length (mm): 116
• Product Width (mm): 24
• Product Height (mm): 24
