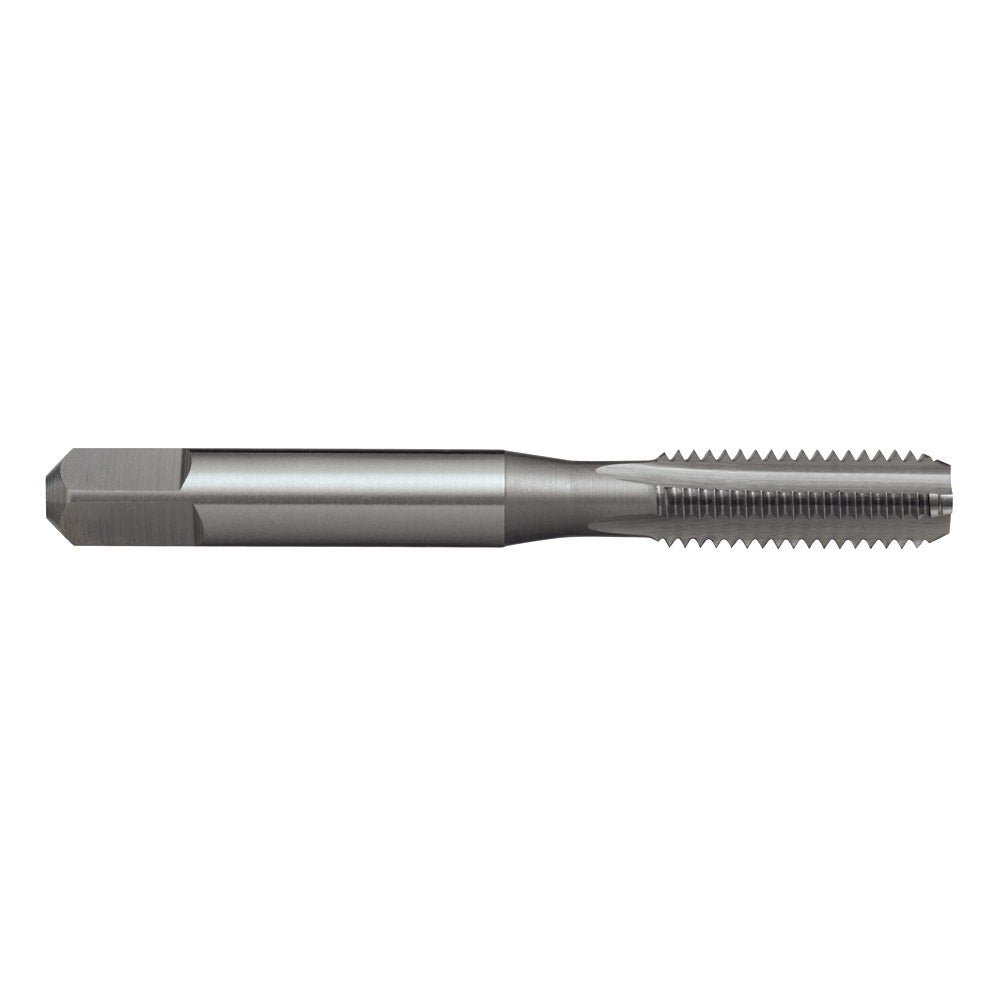

SUTTON M20 x 2.5 Straight Flute Tap - Bottom T3862000

Features

• General-purpose use
• Suitable for materials up to 1000N/mm²
• Compatible with hand and machine operations
• Max cut depth up to approx. 1 x d1
• Designation: N
• Finish: Brt
• Shank form: A
• Type: Straight Flute
• Thread form: MF
• Lead: Bottoming
• Material: HSS
• Standard: ISO529
• Nut tolerance: ISO 2 / 6H
• Drill Ø: 17.5
• Pitch: 2.5

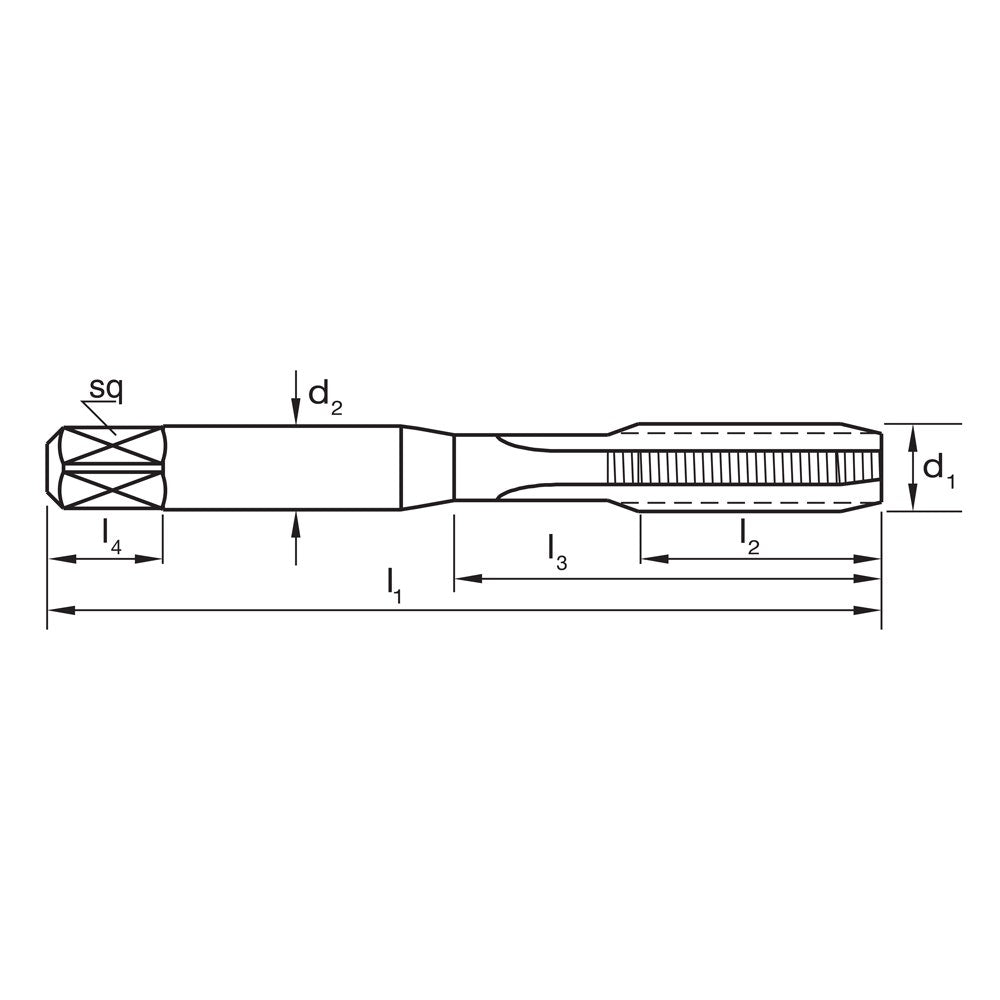

• Size: d1: M20
• l2: 37
• d2: 14
• sq: 11.2
• l4: 14
• z: 4
• 11: 112

Specifications

• Part No: T3862000
• Barcode: 9311963006390
• Brand: Sutton
• Net Weight (kg): 0.12
• Product Length (mm): 116
• Product Width (mm): 24
• Product Height (mm): 24
