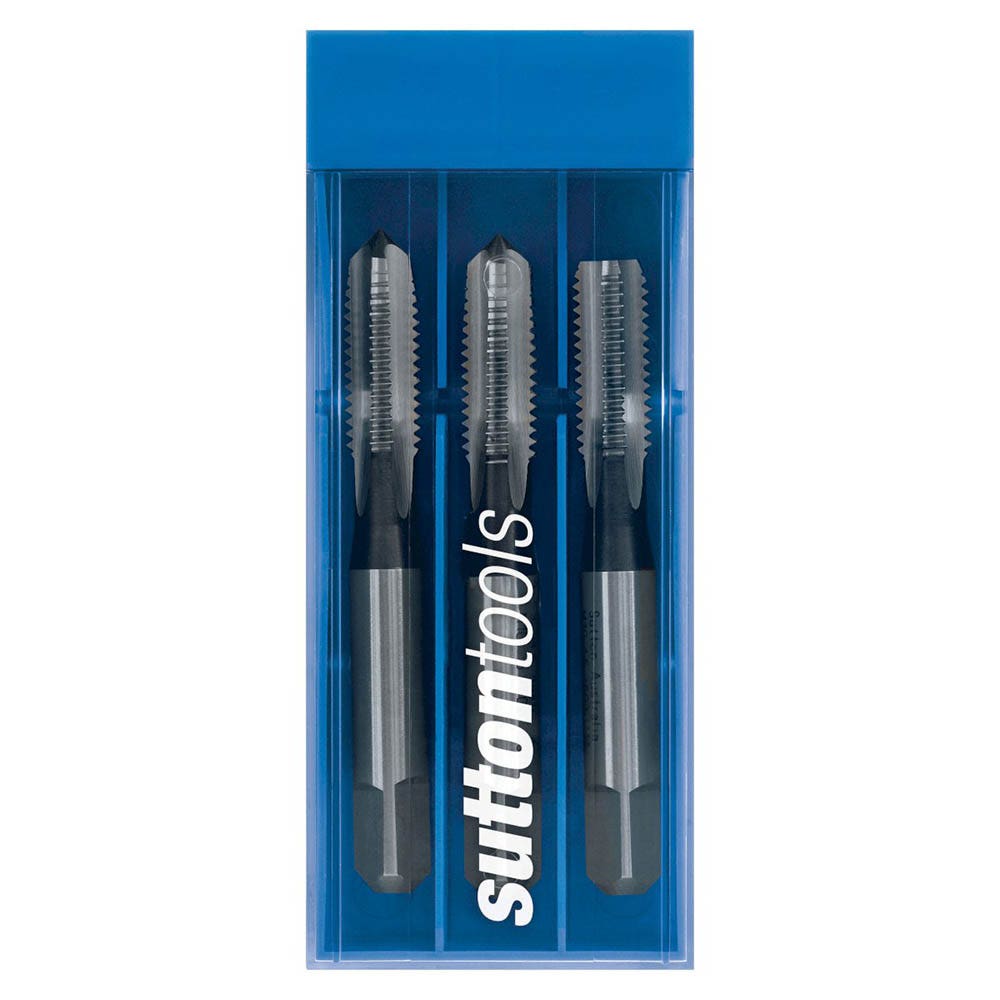

SUTTON M20 x 2.5 Metric HSS Hand Tap Set - 3 Piece T9012000

Features

• General purpose use
• Suitable for materials up to 1000N/mm²
• Compatible with both hand and machine operations
• Max cut depth up to approx. 1 x d1
• Designation: N
• Material: HSS
• Finish: Brt
• Shank Form: A
• Standard: ISO529
• Thread Form: M
• Nut Tolerance: ISO 2 / 6H
• Lead: Set
• Length l1: 112 mm
• Length l2: 37 mm
• Diameter d2: 14 mm
• sq: 11.2
• Length l4: 14 mm
• z: 4
• Pitch: 2.50

Specifications

• Part No: T9012000
• Barcode: 9311963015811
• Brand: Sutton
