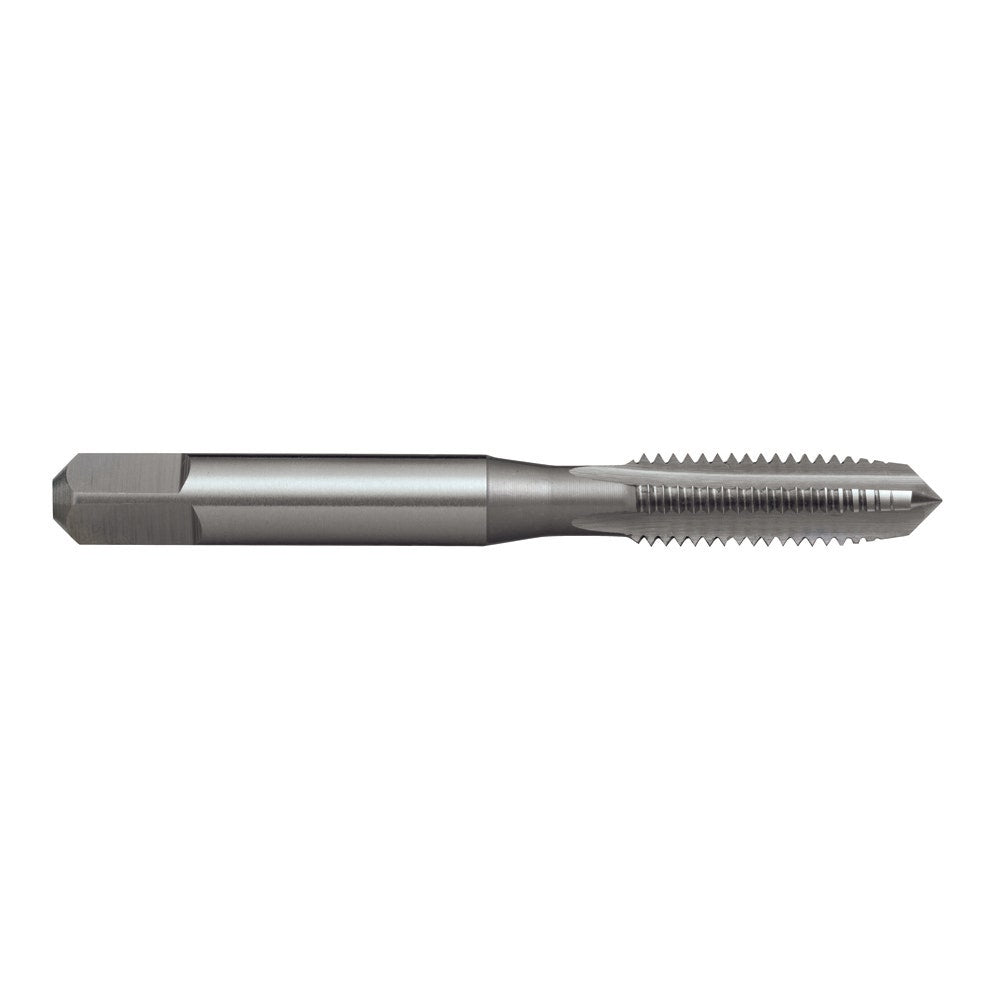

SUTTON M16 x 2.0 Straight Flute Taps - Intermediate T3851600

Features

• General-purpose use
• Compatible with materials up to 1000N/mm²
• Suitable for hand and machine operations
• Max cut depth: approx. 1 x d1
• Designation: N
• Finish: Brt
• Shank form: A
• Type: Straight flute
• Thread form: M
• Lead: Intermediate
• Material: HSS
• Standard: ISO 529
• Nut tolerance: ISO 2 / 6H
• Drill Ø: 14
• Pitch: 2

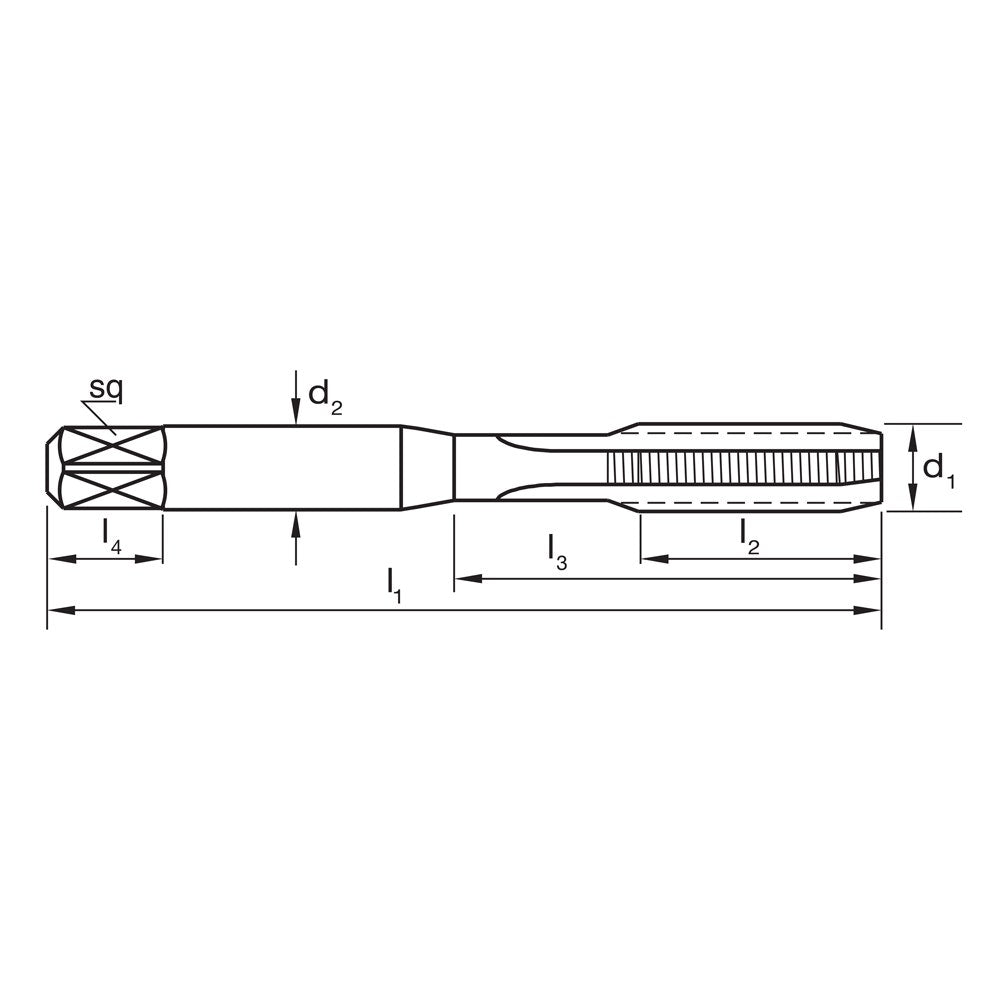

• Sizes: d1: M16, l2: 32, d2: 12.5, sq: 10, l4: 13, z: 4

Specifications

• Part No: T3851600
• Barcode: 9311963003757
• Brand: Sutton
• Net Weight (kg): 0.094
• Product Length (mm): 104
• Product Width (mm): 23
• Product Height (mm): 23
