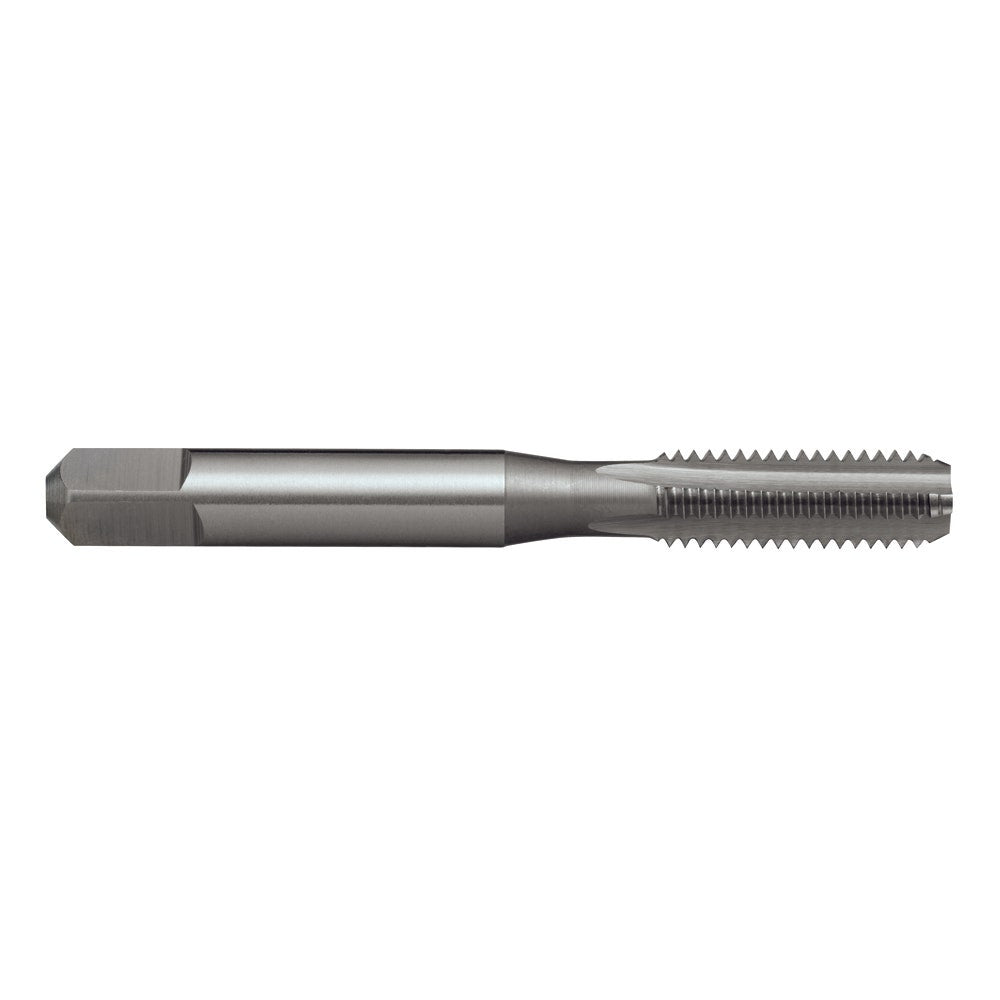

SUTTON M16 x 2.0 Straight Flute Tap - Bottom T3861600

SUTTON M16 x 2.0 Straight Flute Tap - Bottom T3861600

$114.00 AUD
$152.00 AUD $114.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Features

  • General-purpose use
  • Compatible with materials up to 1000N/mm²
  • Can be used for hand and machine operations
  • Max depths up to approx. 1 x d1
  • Designation: N
  • Finish: Brt
  • Shank Form: A
  • Type: Straight Flute
  • Thread Form: MF
  • Lead: Bottoming
  • Material: HSS
  • Max Cut Depth: 1xD
  • Standard: ISO529
  • Nut Tolerance: ISO 2 / 6H
  • d1 Size: M16
  • Drill Ø: 14
  • Pitch: 2

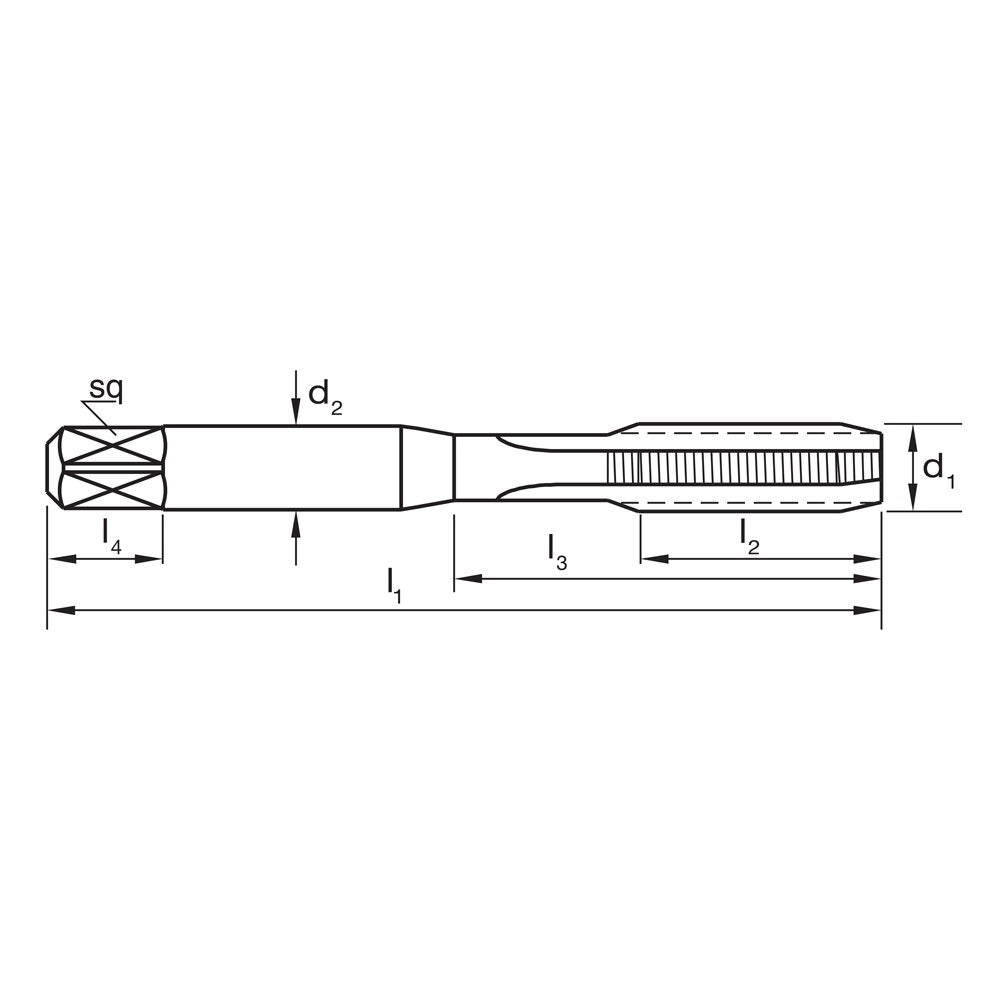

  • l2: 32
  • d2: 12.5
  • sq: 10
  • l4: 13
  • z: 4

Specifications

  • Part No: T3861600
  • Barcode: 9311963003344
  • Brand: Sutton
  • Net Weight (kg): 0.1
  • Product Length (mm): 106
  • Product Width (mm): 24
  • Product Height (mm): 24
``
