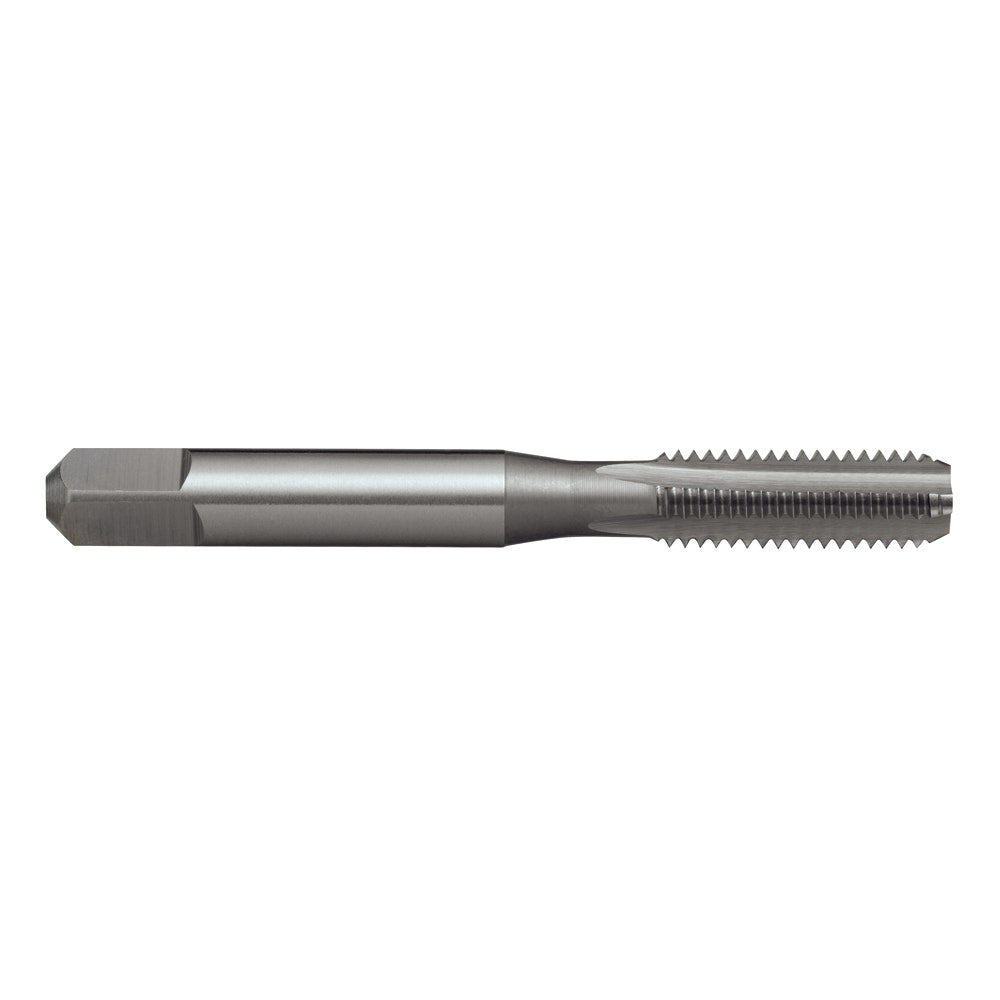

SUTTON M12 x 1.75 Straight Flute Tap - Bottom T3861200

SUTTON M12 x 1.75 Straight Flute Tap - Bottom T3861200

$95.00 AUD
$126.00 AUD $95.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Features

  • General-purpose application
  • Designed for materials up to 1000N/mm²
  • Compatible with hand and machine operations
  • Maximum depth approximately 1 x d1
  • Designation: N
  • Finish: Brt
  • Shank Form: A
  • Type: Straight Flute
  • Thread Form: MF
  • Lead: Bottoming
  • Material: HSS
  • Max Cut Depth: 1 x D
  • Standard: ISO529
  • Nut Tolerance: ISO 2 / 6H
  • Drill Ø: 10.2
  • Pitch: 1.75

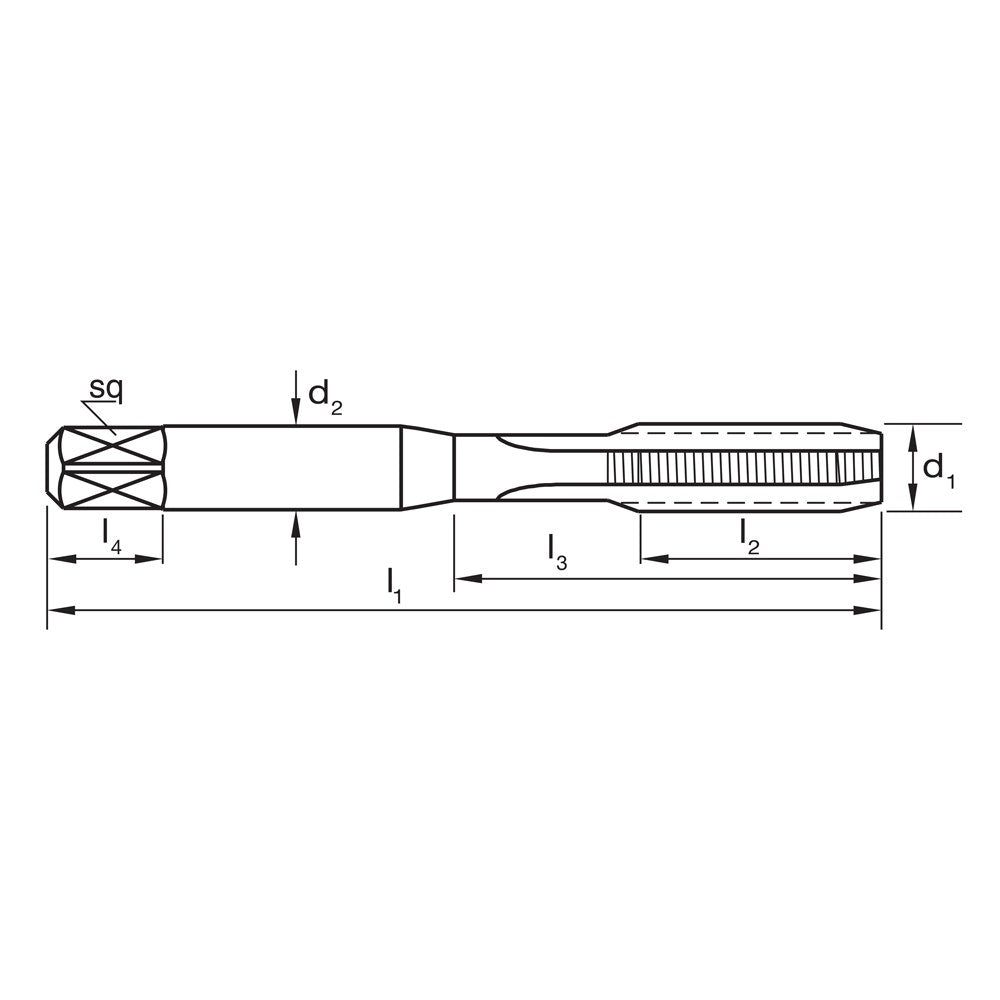

  • Size: d1: M12, l2: 29, d2: 9, sq: 7.4, l4: 10, z: 4

Specifications

  • Part No: T3861200
  • Barcode: 9311963002781
  • Brand: Sutton
  • Net Weight (kg): 0.04
  • Product Length (mm): 98
  • Product Width (mm): 20
  • Product Height (mm): 16
``
