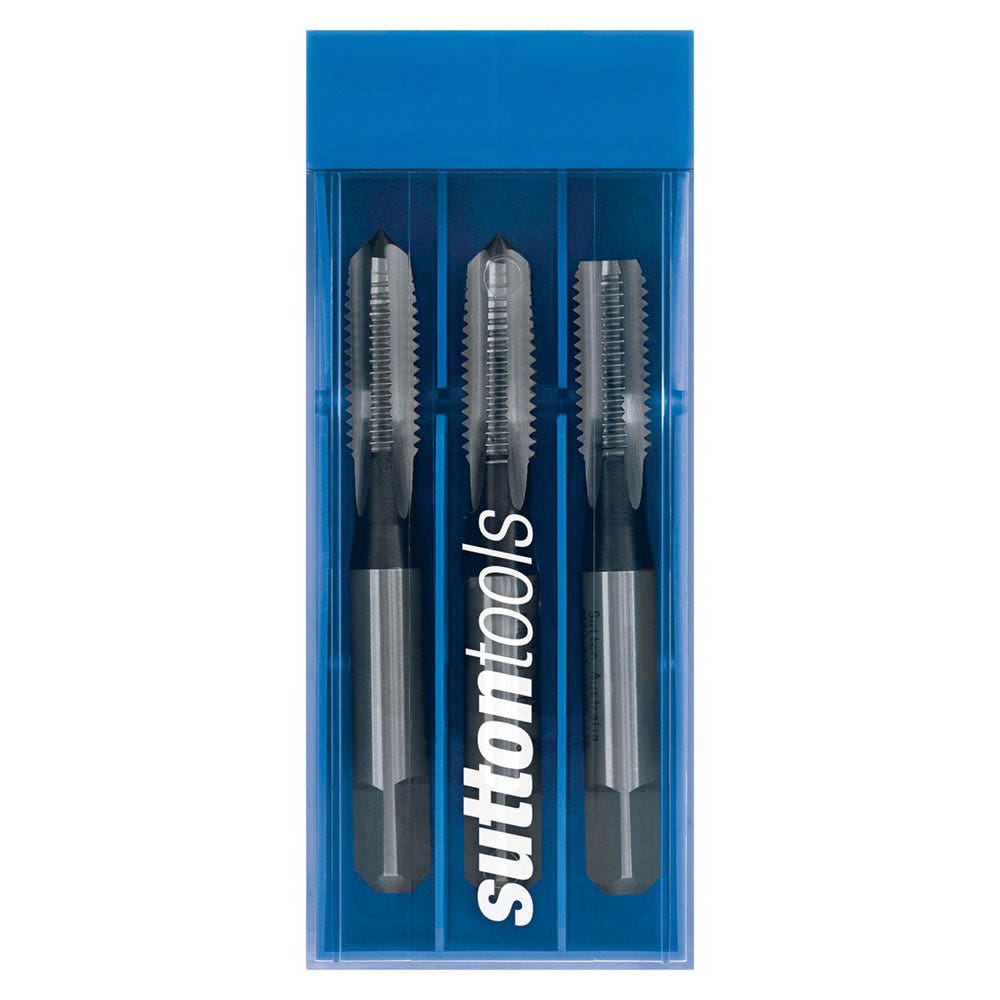

SUTTON M12 x 1.75 Metric HSS Hand Tap Set - 3 Piece T9011200

Features

• General purpose use
• Suitable for materials up to 1000N/mm²
• Compatible with hand and machine operations
• Max cut depth up to approx. 1 x d1
• Designation: N
• Material: HSS
• Finish: Brt
• Shank form: A
• Standard: ISO529
• Thread form: M
• Nut tolerance: ISO 2 / 6H
• Lead: Set
• Length l1: 89 mm
• Length l2: 29 mm
• Diameter d2: 9 mm
• Square: 7.1
• Length l4: 10 mm
• Z: 4
• Pitch: 1.75

Specifications

• Part No: T9011200
• Barcode: 9311963006154
• Brand: Sutton
