- General-purpose use
- Suitable for materials up to 1000N/mm2
- Through & blind holes
- Suitable for both hand and machine operations
- Depths up to approx. 1 x d1
Specifications
- Designation: N
- Finish: Brt
- Shank Form: A
- Type: Straight Flute
- Thread Form: MF
- Lead: Taper
- Material: HSS
- Max Cut Depth: 1xD
- x: als
- Standard: ISO529
- Nut Tolerance: ISO 2 / 6H

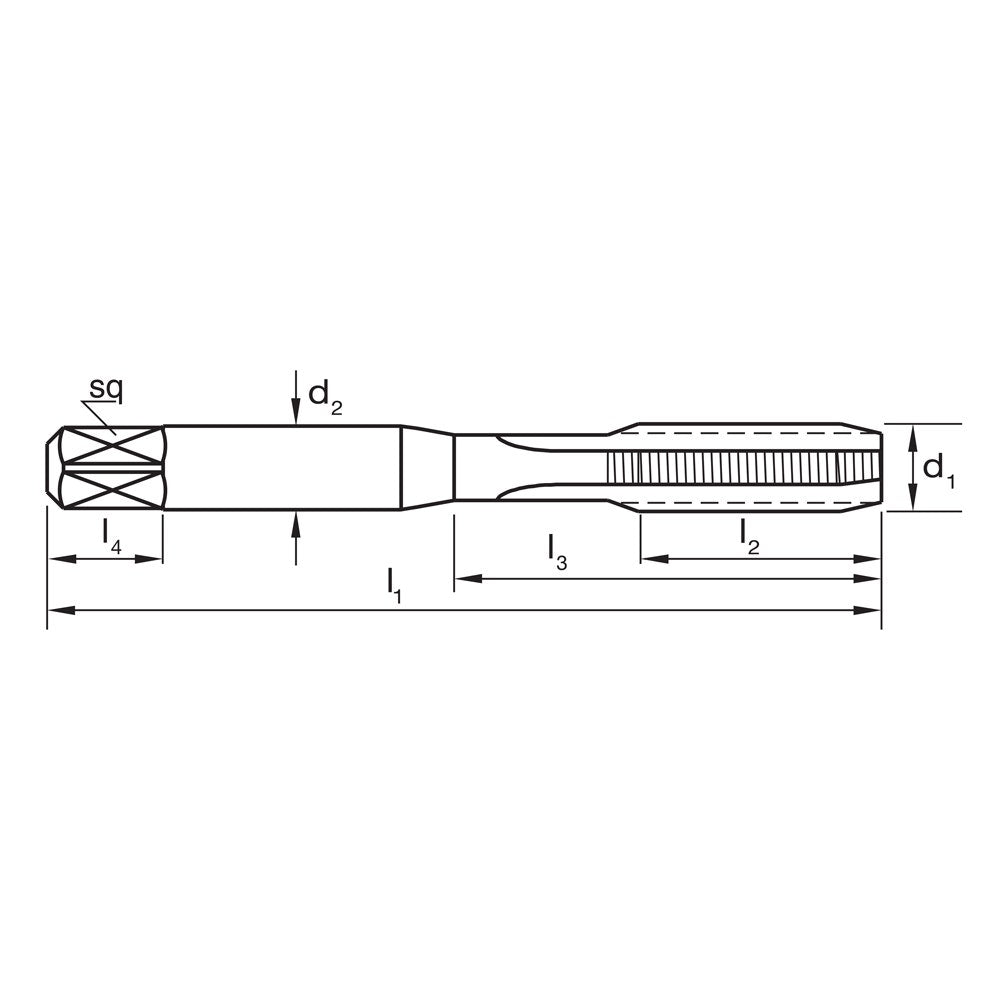

- Size:
- d1: MF12
- 11: 89
- l2: 29
- l3: -
- d2: 9
- sq: 7.1
- l4: 10
- z: 4
- Drill Ø: 10.5
- Pitch: 1.5
