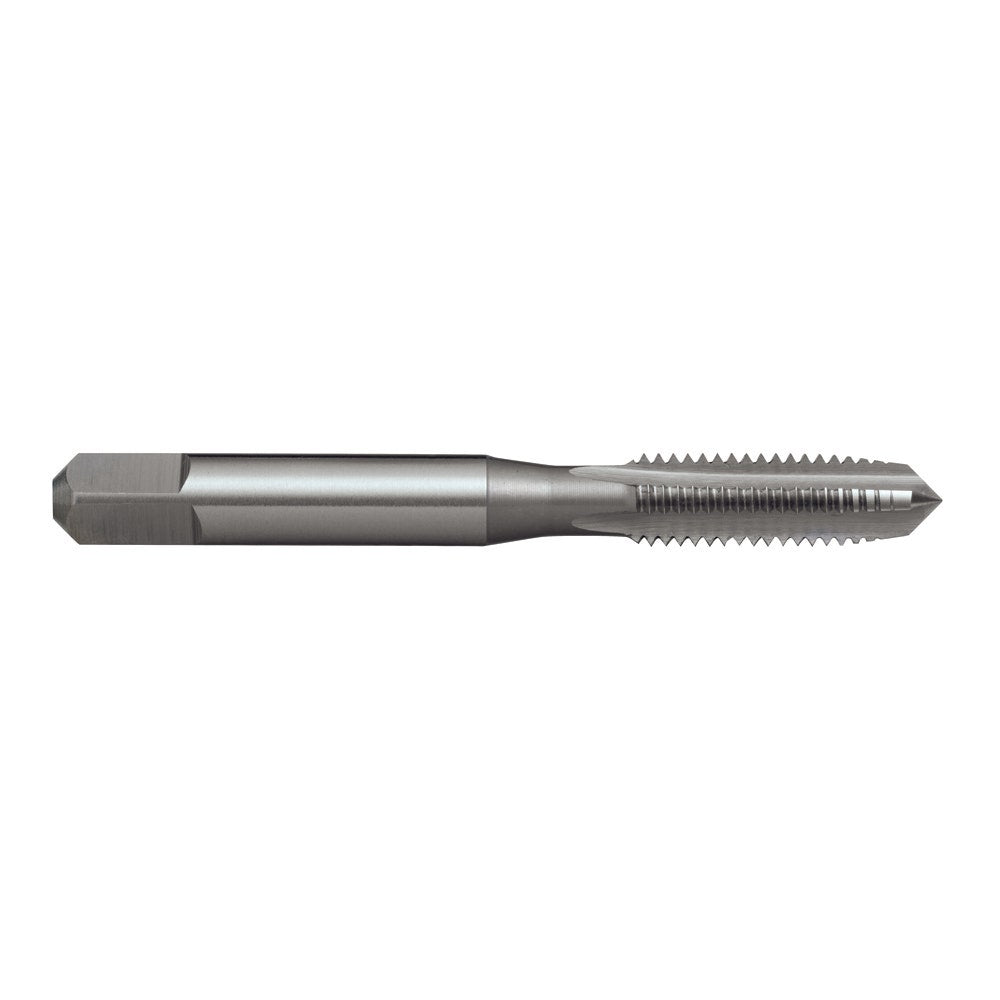

SUTTON M12 x 1.5 Straight Flute Tap - Intermediate T4021207

SUTTON M12 x 1.5 Straight Flute Tap - Intermediate T4021207

$142.00 AUD
$189.90 AUD $142.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Limited offer: $10 OFF orders above $250 using code 10OFF

Features

  • General-purpose use
  • Suitable for materials up to 1000N/mm2
  • Through & blind holes
  • Compatible with hand and machine operations
  • Max depths of approximately 1 x d1
  • Designation: N
  • Finish: Brt
  • Shank Form: A
  • Type: Straight Flute
  • Thread Form: MF
  • Lead: Intermediate
  • Material: HSS
  • Max Cut Depth: 1xD
  • Standard: ISO529
  • Nut Tolerance: ISO 2 / 6H
  • Drill Ø: 10.5
  • Pitch: 1.5

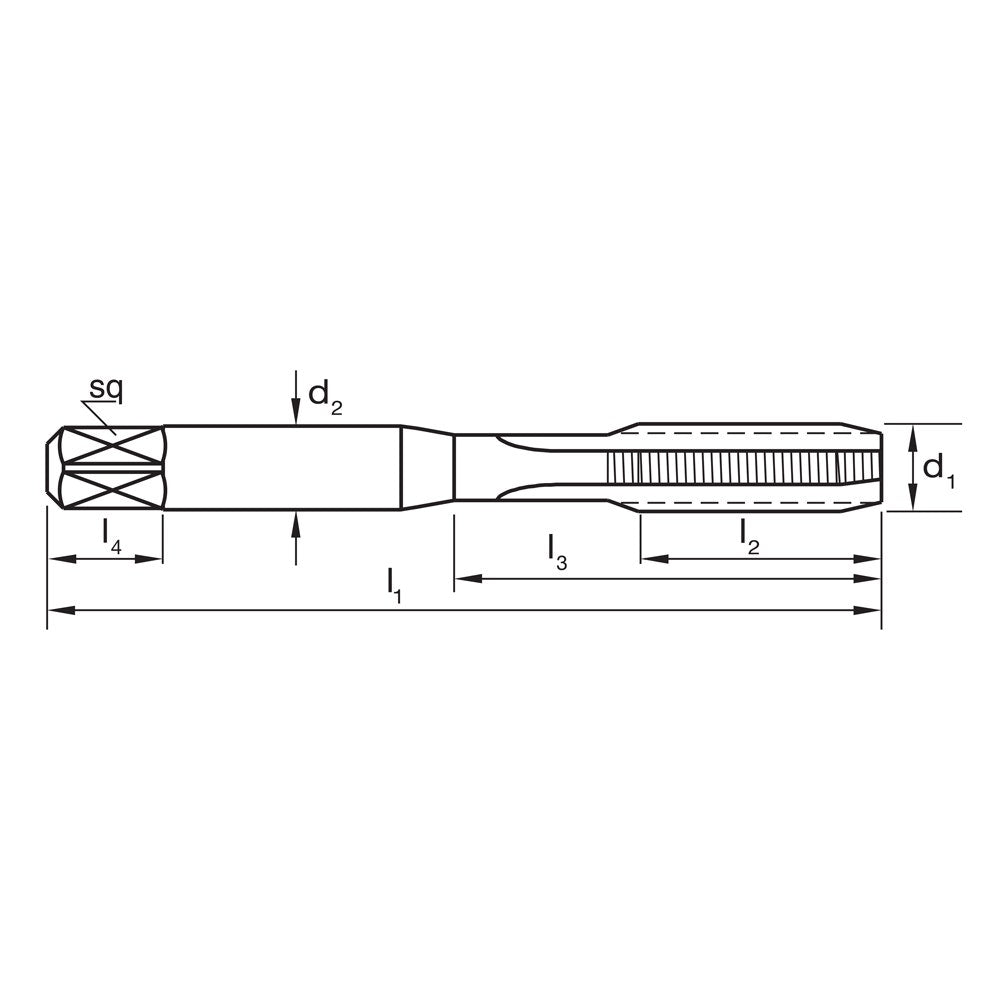

  • d1: MF12
  • 11: 89
  • l2: 29
  • d2: 9
  • sq: 7.1
  • l4: 10
  • z: 4

Specifications

  • Part No: T4021207
  • Barcode: 9311963006406
  • Brand: Sutton
  • Net Weight (kg): 0.049
  • Product Length (mm): 102
  • Product Width (mm): 17
  • Product Height (mm): 17
``
