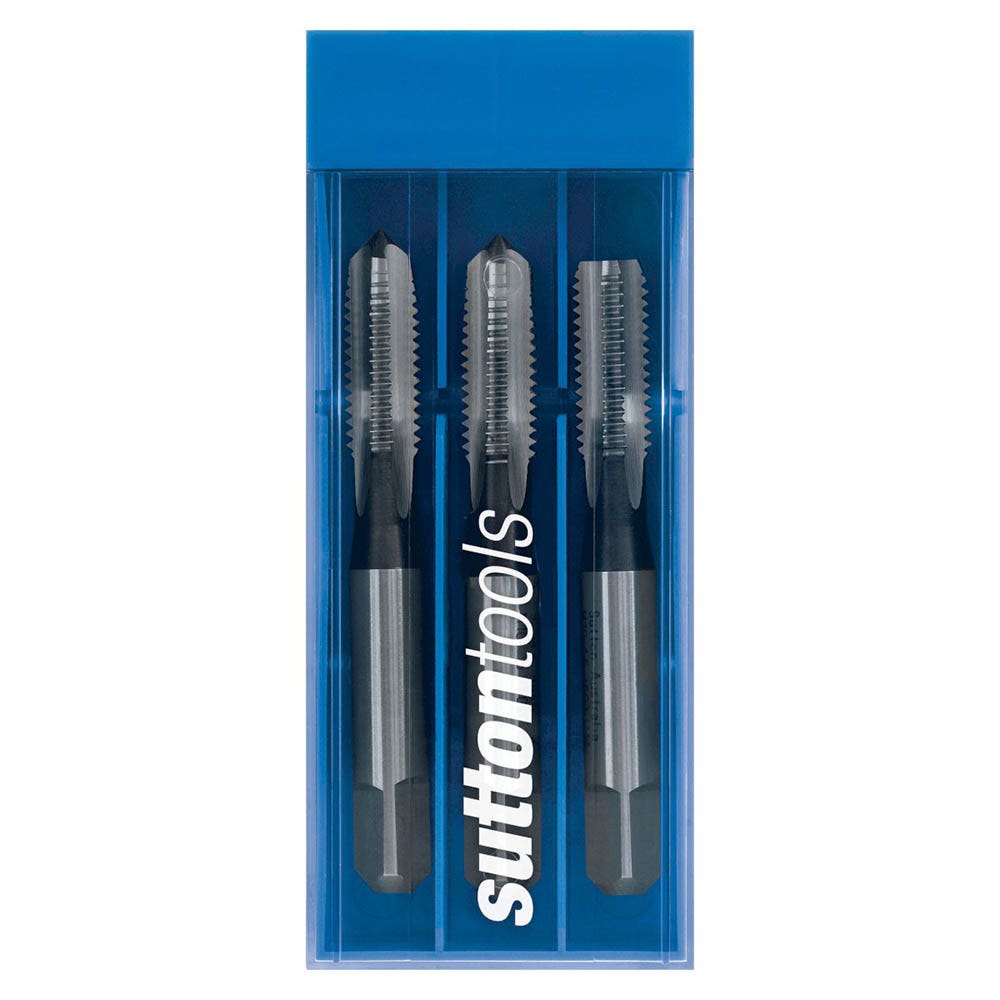

SUTTON M11 x 1.5 Metric HSS Hand Tap Set - 3 Piece T9011100

Features

• General purpose use
• Suitable for materials up to 1000N/mm²
• Compatible with both hand and machine operations
• Max cut depth of approx. 1 x d1
• Designation: N
• Material: HSS
• Finish: Brt
• Shank form: A
• Standard: ISO529
• Thread form: M
• Nut tolerance: ISO 2 / 6H
• Lead: Set
• Length l1: 85 mm
• Length l2: 25 mm
• Diameter d2: 8 mm
• sq: 6.3
• Length l4: 9 mm
• z: 4
• Pitch: 1.50
• Part No: T9011100
• Barcode: 9311963019550
• Brand: Sutton

Specifications

• Max cut depth: 1 x D
