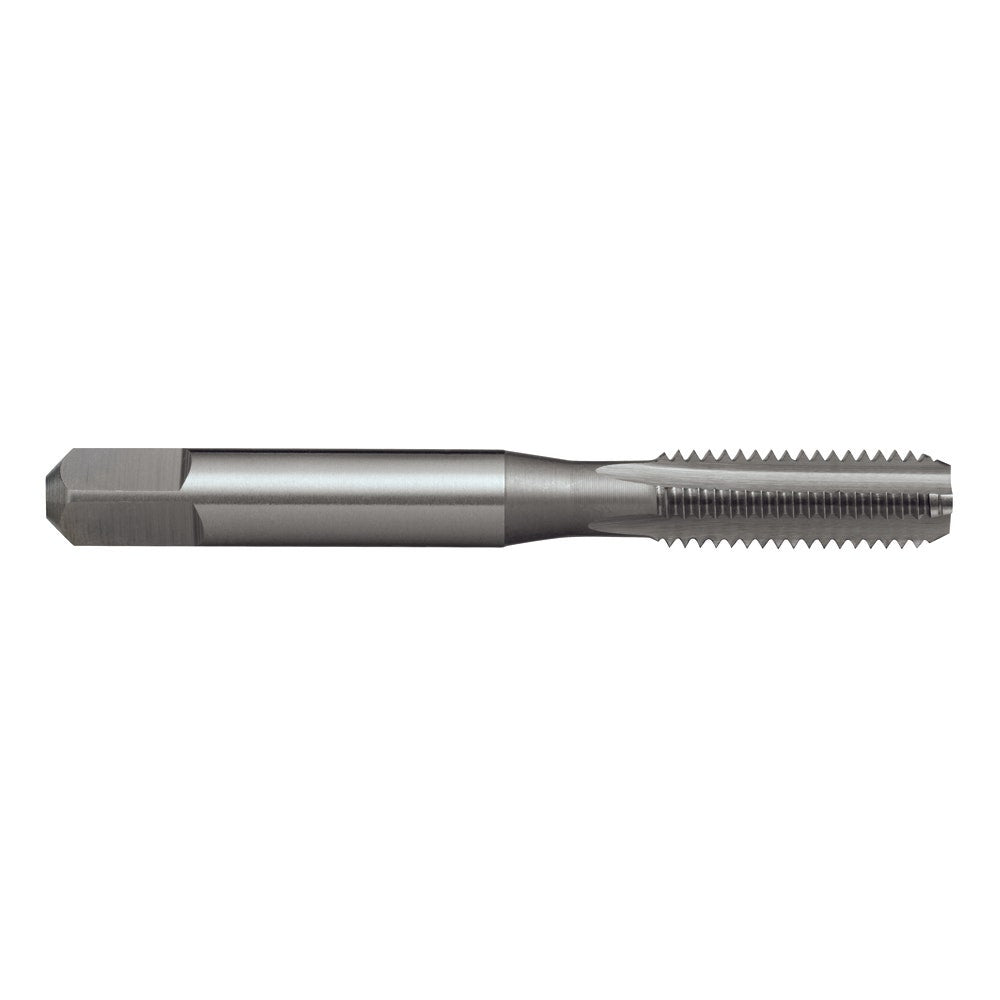

SUTTON M10 x 1.5 Straight Flute Tap - Bottom T3861000

Features

• General-purpose use
• Suitable for materials up to 1000N/mm²
• Applicable for both hand and machine operations
• Max cut depth: approximately 1 x d1
• Designation: N
• Finish: Brt
• Shank form: A
• Type: Straight flute
• Thread form: MF
• Lead: Bottoming
• Material: HSS
• Standard: ISO529
• Nut tolerance: ISO 2 / 6H
• Drill Ø: 8.5
• Pitch: 1.5

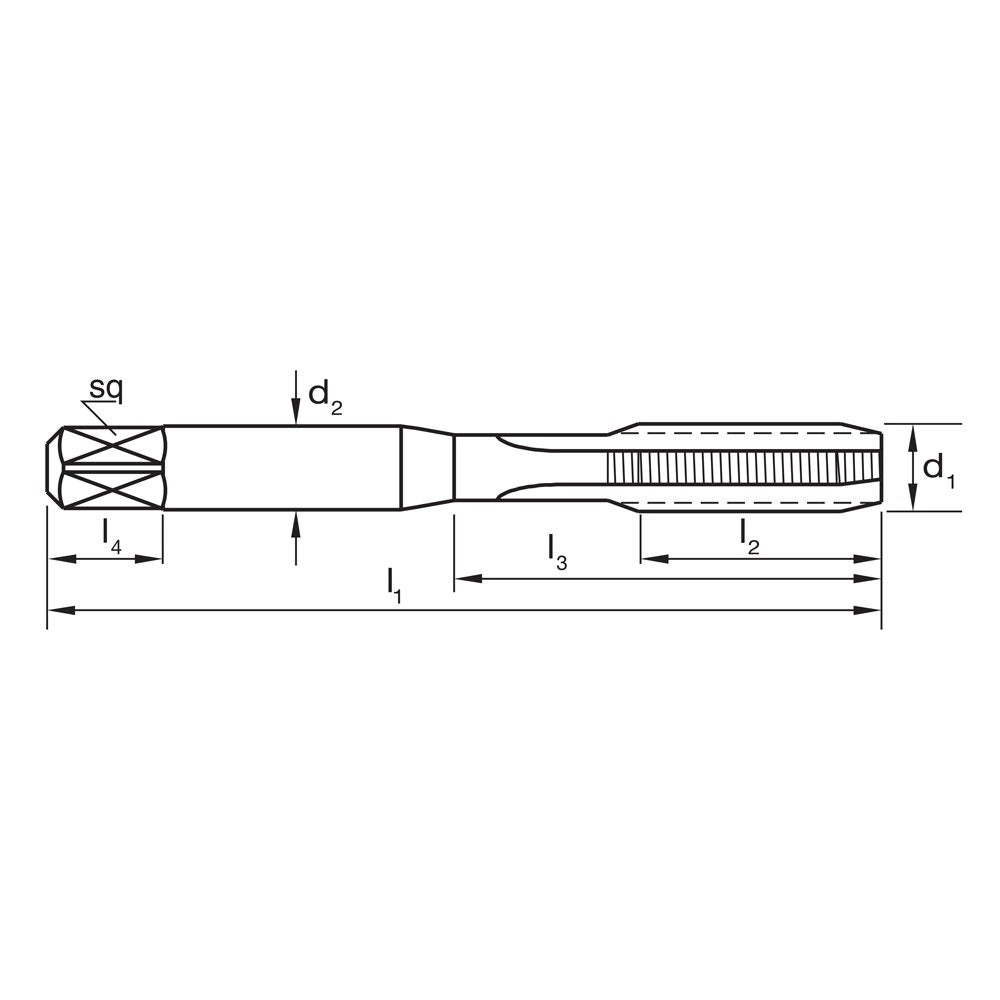

• Size details: d1: M10, 11: 80, l2: 24, d2: 10, sq: 8, l4: 11, z: 4

Specifications

• Part No: T3861000
• Barcode: 9311963001425
• Brand: Sutton
• Net Weight (kg): 0.04
• Product Length (mm): 98
• Product Width (mm): 16
• Product Height (mm): 16
