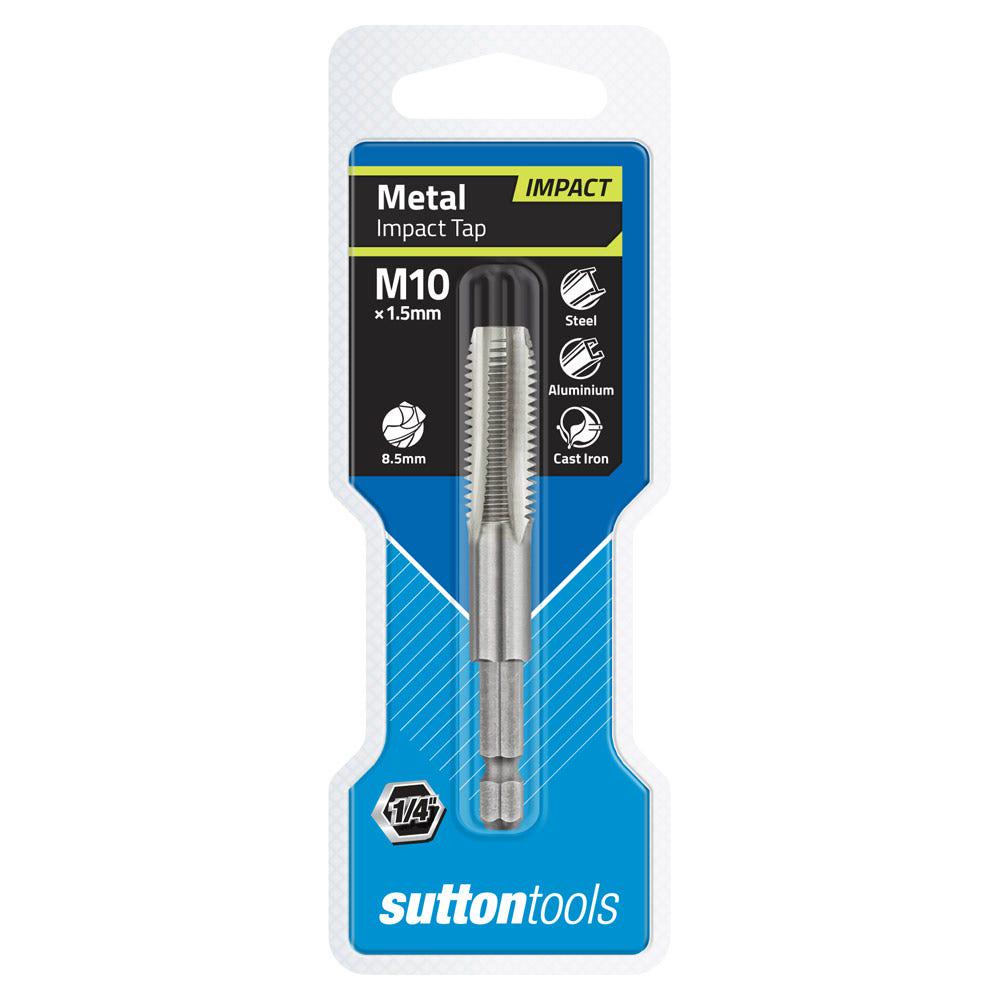

SUTTON M10 x 1.5 Impact Tap M1051000

Features

• Developed for high-torque impact driver use
• Suitable for steel, aluminum, brass, cast iron, plastic, and nylon
• Approximately 20X faster; 3 seconds to tap a hole
• 1/4" hex shank fits impact drivers
• Straight Flutes for through-hole tapping up to 1-1/2 x diameter
• Intermediate lead for through or blind holes
• Constructed from tungsten chrome alloy
• Bright finish for general applications with non-ferrous metals and plastics
• Not suitable for precision, safety, or critical threads
• Drill not included for sizes M10 & M12

Specifications

• Designation: N
• Finish: Brt
• Shank Form: A
• Type: Straight Flute
• Thread Form: M
• Lead: Intermediate
• Material: TCA
• Max Cut Depth: 1.5xD
• Standard: Sutton
• Nut Tolerance: ISO 2 / 6H
• Drill Ø: 8.5
• Pitch: 1.5
• Size: M10
• Part No: M1051000
• Barcode: 9311963607412
• Brand: Sutton
• Net Weight (kg): 0.029
• Product Length (mm): 17
• Product Width (mm): 55
• Product Height (mm): 150
