SUTTON M10 x 1.25 Straight Flute Tap - Taper T4011006

SUTTON M10 x 1.25 Straight Flute Tap - Taper T4011006

$124.00 AUD
$165.90 AUD $124.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Limited offer: $10 OFF orders above $250 using code 10OFF

Features

  • General-purpose usage
  • Compatible with materials up to 1000N/mm²
  • Designed for through & blind holes
  • Applicable for hand and machine operations
  • Max depth of approx. 1 x d1
  • Designation: N
  • Finish: Brt
  • Shank Form: A
  • Type: Straight Flute
  • Thread Form: MF
  • Lead: Taper
  • Material: HSS
  • Max Cut Depth: 1 x D
  • Standard: ISO529
  • Nut Tolerance: ISO 2 / 6H
  • Drill Ø: 8.8
  • Pitch: 1.25

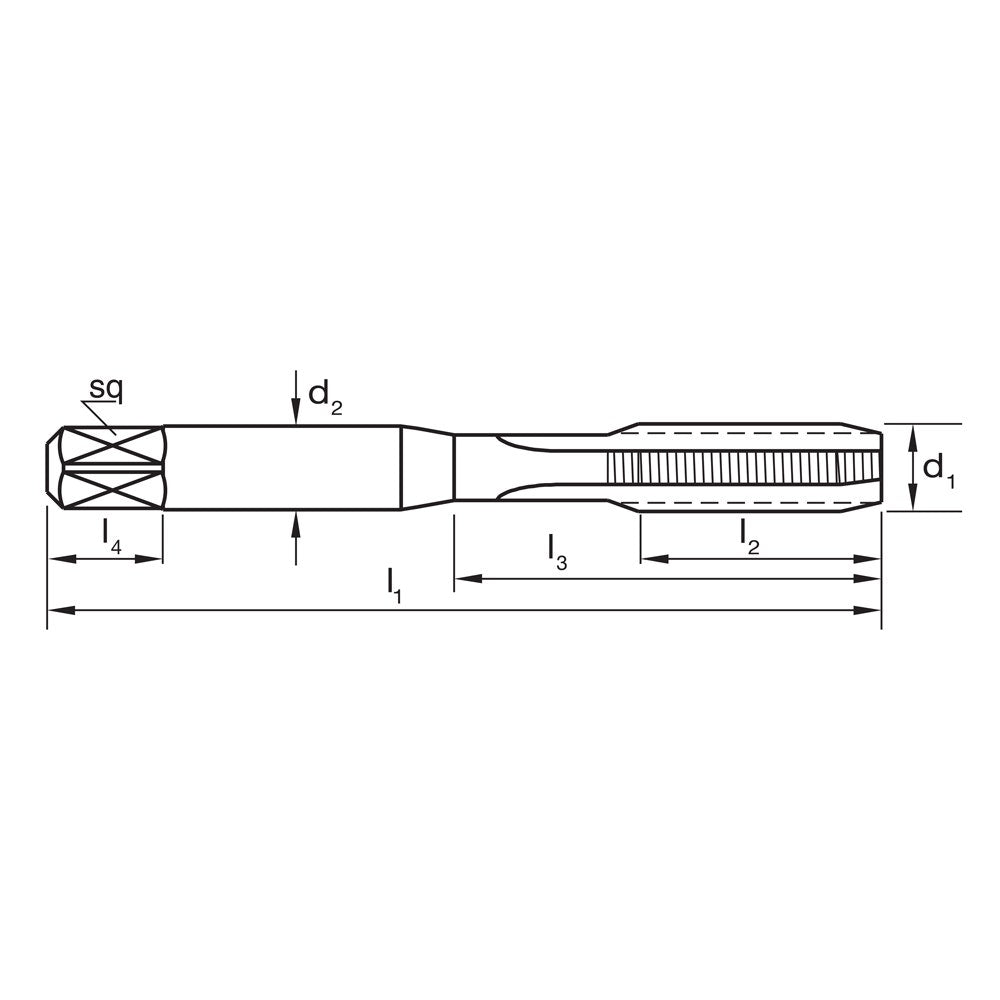

  • d1: MF10
  • Size: 11: 80
  • l2: 24
  • l3: 34
  • d2: 10
  • sq: 8
  • l4: 11
  • z: 4

Specifications

  • Part No: T4011006
  • Barcode: 9311963007311
  • Brand: Sutton
  • Net Weight (kg): 0.045
  • Product Length (mm): 102
  • Product Width (mm): 18
  • Product Height (mm): 16
``
