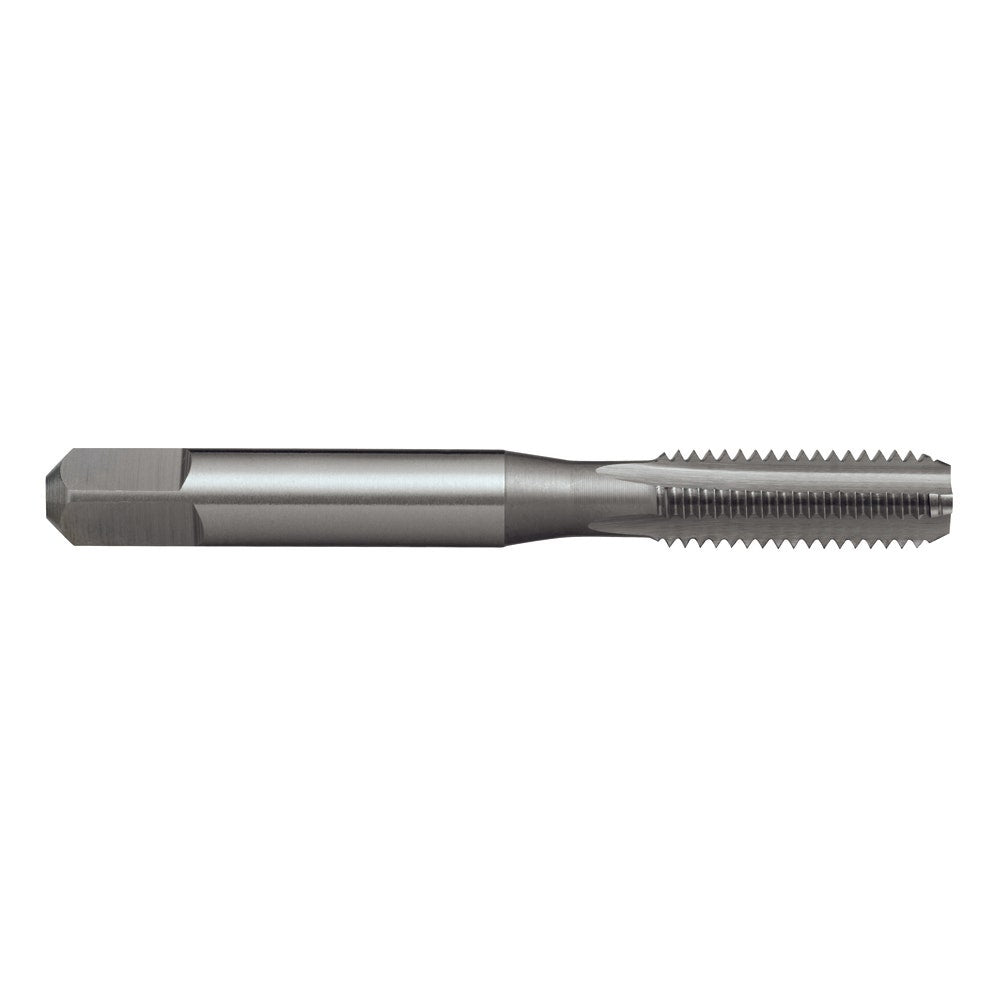

SUTTON M10 x 1.25 Straight Flute Tap - Bottom T4031006

Features

• General-purpose use
• Suitable for materials up to 1000N/mm²
• Compatible with through & blind holes
• Usable for both hand and machine operations
• Max depth up to approx. 1 x d1
• Designation: N
• Finish: Brt
• Shank Form: A
• Type: Straight Flute
• Thread Form: MF
• Lead: Bottoming
• Material: HSS
• Max Cut Depth: 1xD
• Standard: ISO529
• Nut Tolerance: ISO 2 / 6H
• Drill Ø: 8.8
• Pitch: 1.25

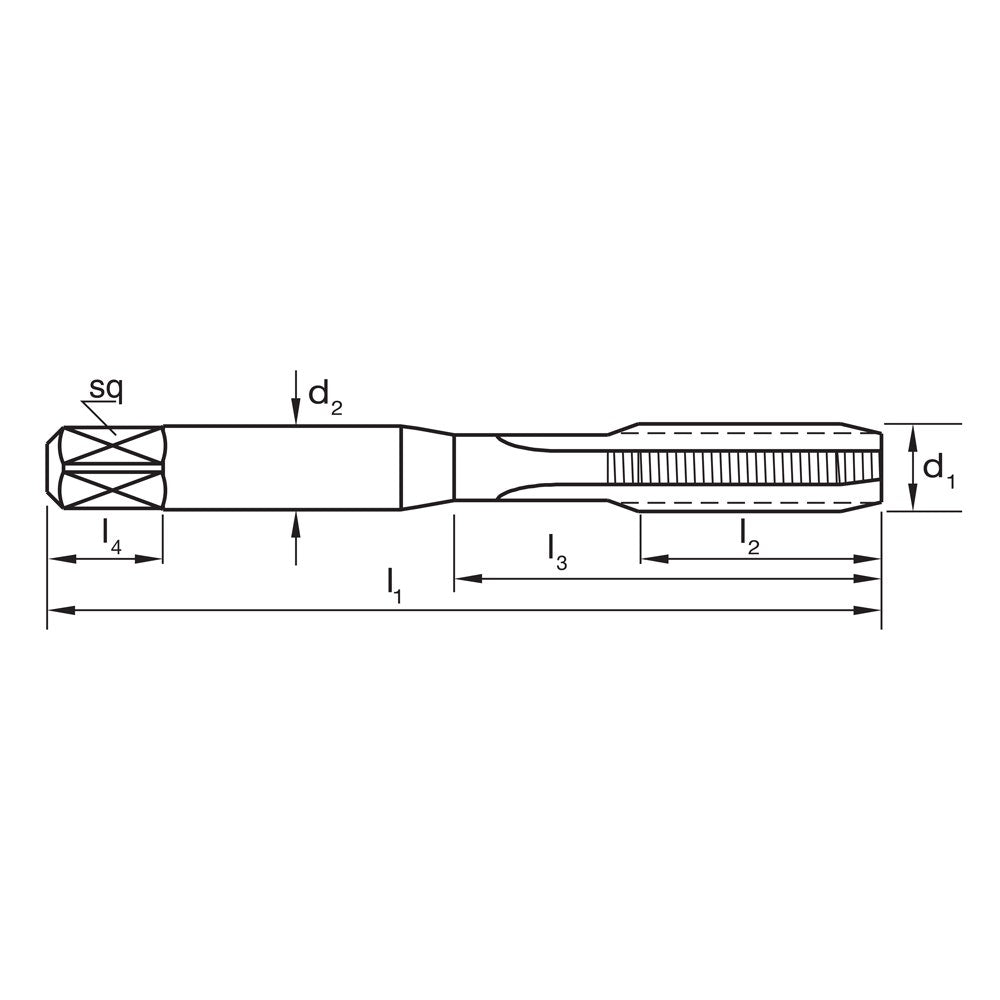

• d1: MF10
• l2: 24
• l3: 34
• d2: 10
• sq: 8
• l4: 11
• z: 4
• Part No: T4031006
• Barcode: 9311963005058
• Brand: Sutton
• Net Weight (kg): 0.04
• Product Length (mm): 98
• Product Width (mm): 16
• Product Height (mm): 16

Specifications

• Size: 11: 80
