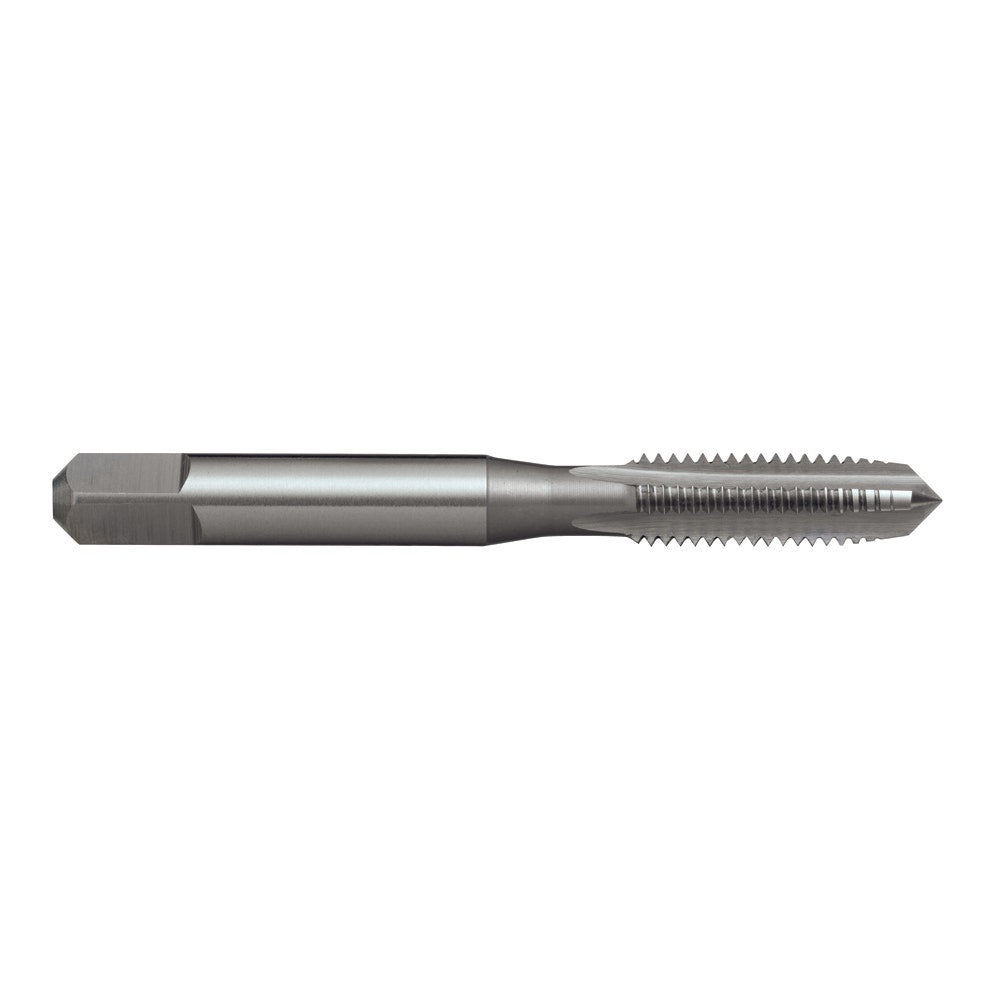

SUTTON M10 x 1.0 Straight Flute Tap - Intermediate T4021005

SUTTON M10 x 1.0 Straight Flute Tap - Intermediate T4021005

$124.00 AUD
$165.90 AUD $124.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Features

  • General-purpose use
  • Suitable for materials up to 1000N/mm²
  • Depths up to approx. 1 x d1
  • Through & blind holes
  • Compatible with hand and machine operations
  • Designation: N
  • Finish: Brt
  • Shank Form: A
  • Type: Straight Flute
  • Thread Form: MF
  • Lead: Intermediate
  • Material: HSS
  • Max Cut Depth: 1xD
  • Standard: ISO529
  • Nut Tolerance: ISO 2 / 6H

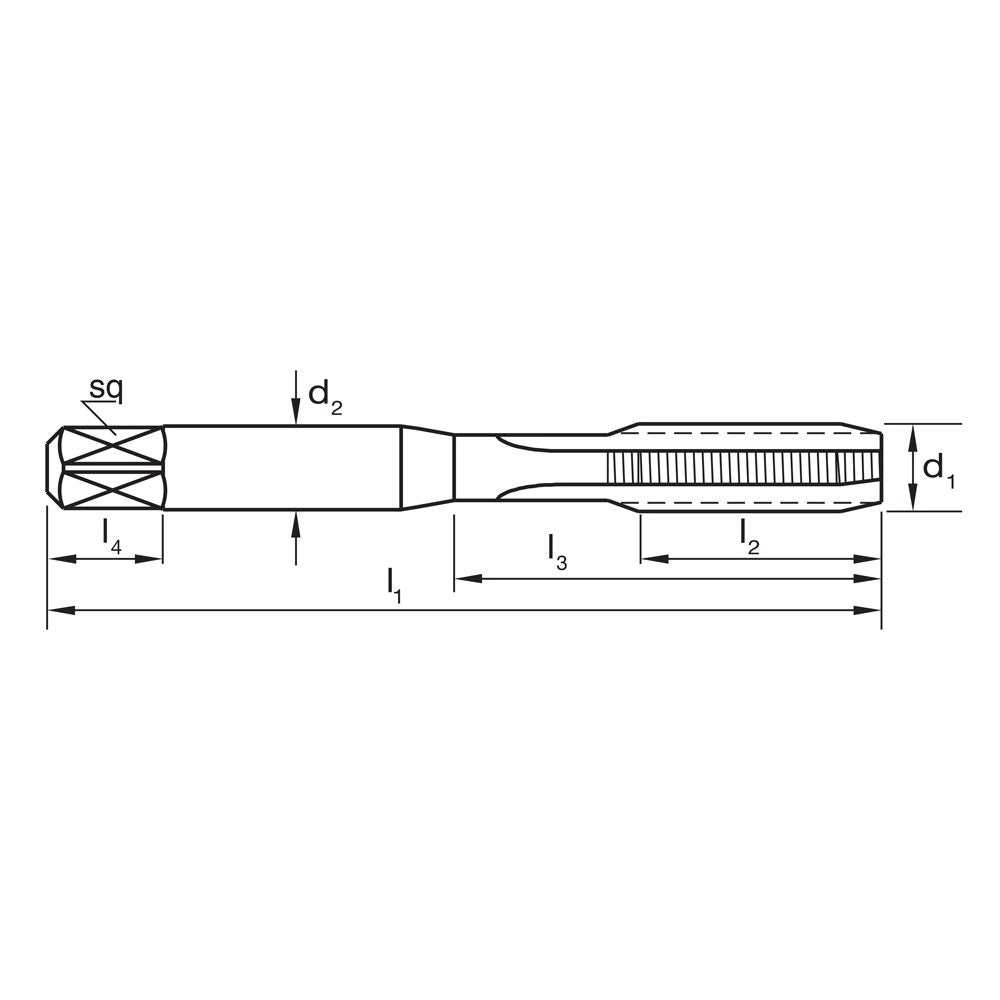

  • d1: MF10
  • Pitch: 1
  • Drill Ø: 9
  • l2: 24
  • l3: 3
  • d2: 10
  • sq: 8
  • l4: 11
  • z: 4

Specifications

  • Part No: T4021005
  • Barcode: 9311963018058
  • Brand: Sutton
  • Net Weight (kg): 0.045
  • Product Length (mm): 97
  • Product Width (mm): 18
  • Product Height (mm): 16
``
