SUTTON M10 x 1.0 Straight Flute Tap - Bottom T4031005

Features

• General-purpose use
• Suitable for materials up to 1000N/mm²
• Through & blind holes compatible
• Appropriate for hand and machine operations
• Max depth up to approximately 1 x d1
• Designation: N
• Finish: Brt
• Shank Form: A
• Type: Straight Flute
• Thread Form: MF
• Lead: Bottoming
• Material: HSS
• Max Cut Depth: 1xD
• Standard: ISO529
• Nut Tolerance: ISO 2 / 6H
• Drill Ø: 9
• Pitch: 1

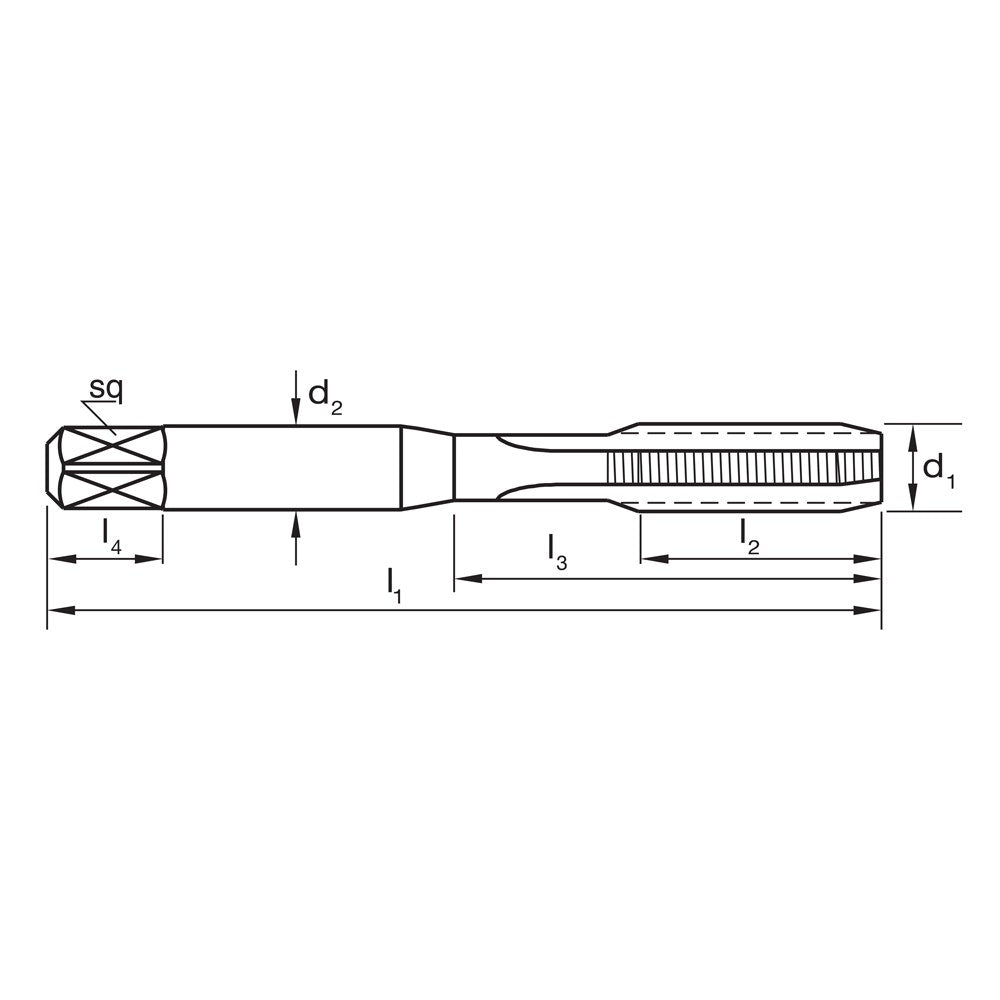

• Size: d1: MF10, 11: 80, l2: 24, l3: 34, d2: 10, sq: 8, l4: 11, z: 4

Specifications

• Part No: T4031005
• Barcode: 9311963013947
• Brand: Sutton
• Net Weight (kg): 0.045
• Product Length (mm): 10
• Product Width (mm): 20
• Product Height (mm): 20
