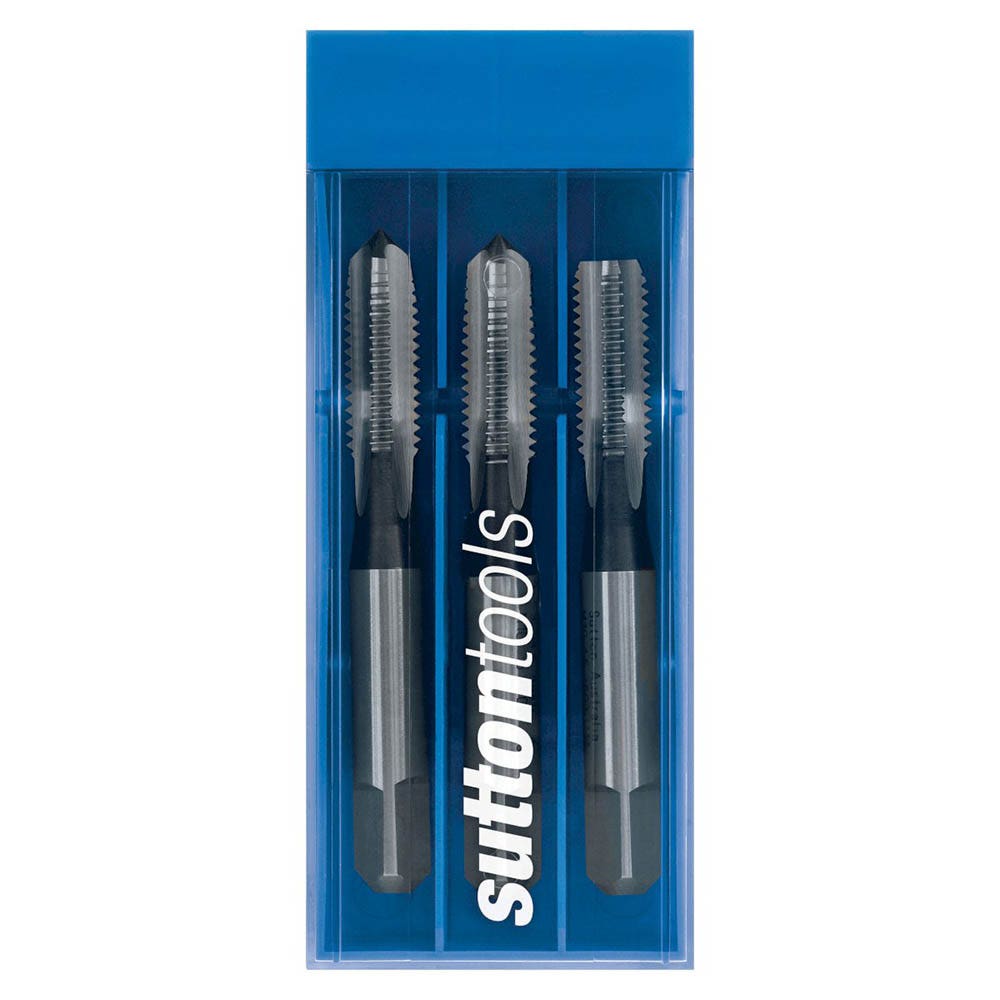

SUTTON 7 8 x 14 UNF HSS Hand Tap Set - 3 Piece T9042223

Features

• General purpose use
• Suitable for materials up to 1000N/mm²
• Can accommodate through & blind holes
• Compatible with hand and machine operations
• Max depth up to approximately 1 x d1
• Designation: N
• Material: HSS
• Finish: Brt
• Max cut depth: 1 x D
• Shank form: A
• Standard: ISO529
• Thread form: UNF
• Nut tolerance: 2B
• Lead: Set
• TPI: 14
• Length l1: 118 mm
• Length l2: 38 mm
• Diameter d2: 16 mm
• sq: 12.5
• Length l4: 16 mm
• z: 4

Specifications

• Part No: T9042223
• Barcode: 9311963026107
• Brand: Sutton
