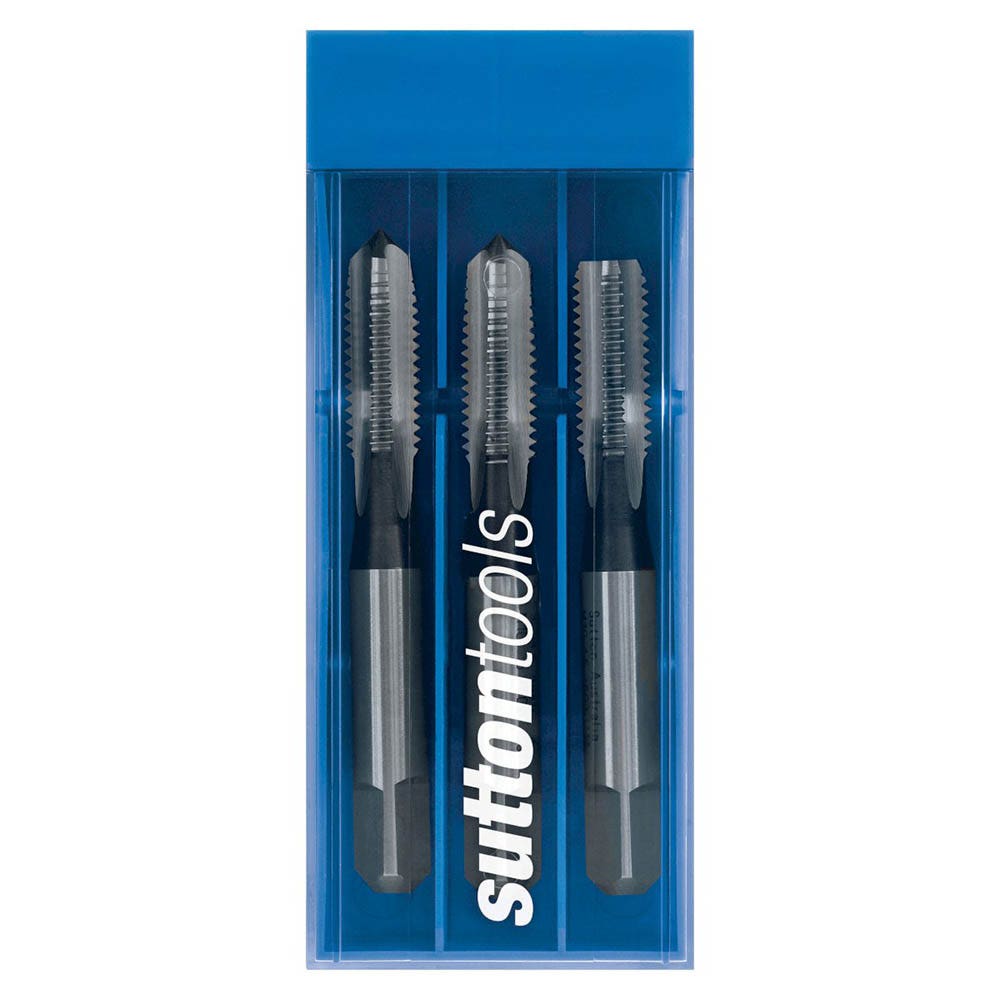

Sutton HSS General Purpose Tapping Tool

The Sutton HSS General Purpose Tapping Tool is your go-to solution for creating precise threads in various materials, suitable for both hand and machine operations. Engineered for exceptional performance, it handles materials with a tensile strength of up to 1000 N/mm² and is versatile enough to work with both through and blind holes. Elevate your tooling game with this reliable and efficient tapping solution.

Key Features

• General purpose use for varied applications
• Suitable for materials with tensile strength up to 1000 N/mm²
• Compatible with both through and blind holes
• Designed for use in hand and machine operations
• Maximum cut depth of approximately 1 x d1

Contents

• 1 x Sutton HSS Tapping Tool

Specifications

• Designation: N
• Material: HSS (High-Speed Steel)
• Finish: Bright (Brt)
• Maximum Cut Depth: 1 x D
• Shank Form: A
• Standard: ISO529
• Thread Form: BSF
• Nut Tolerance: Z3 Medium
• Lead: Set
• TPI (Threads Per Inch): 22
• Limit: Z3
• Length (l1): 72 mm
• Length (l2): 22 mm
• Diameter (d2): 8 mm
• Square (sq): 6.3 mm
• Length (l4): 9 mm
• Z: 4
• Part Number: T9060794
• Barcode: 9311963093055
• Brand: Sutton
