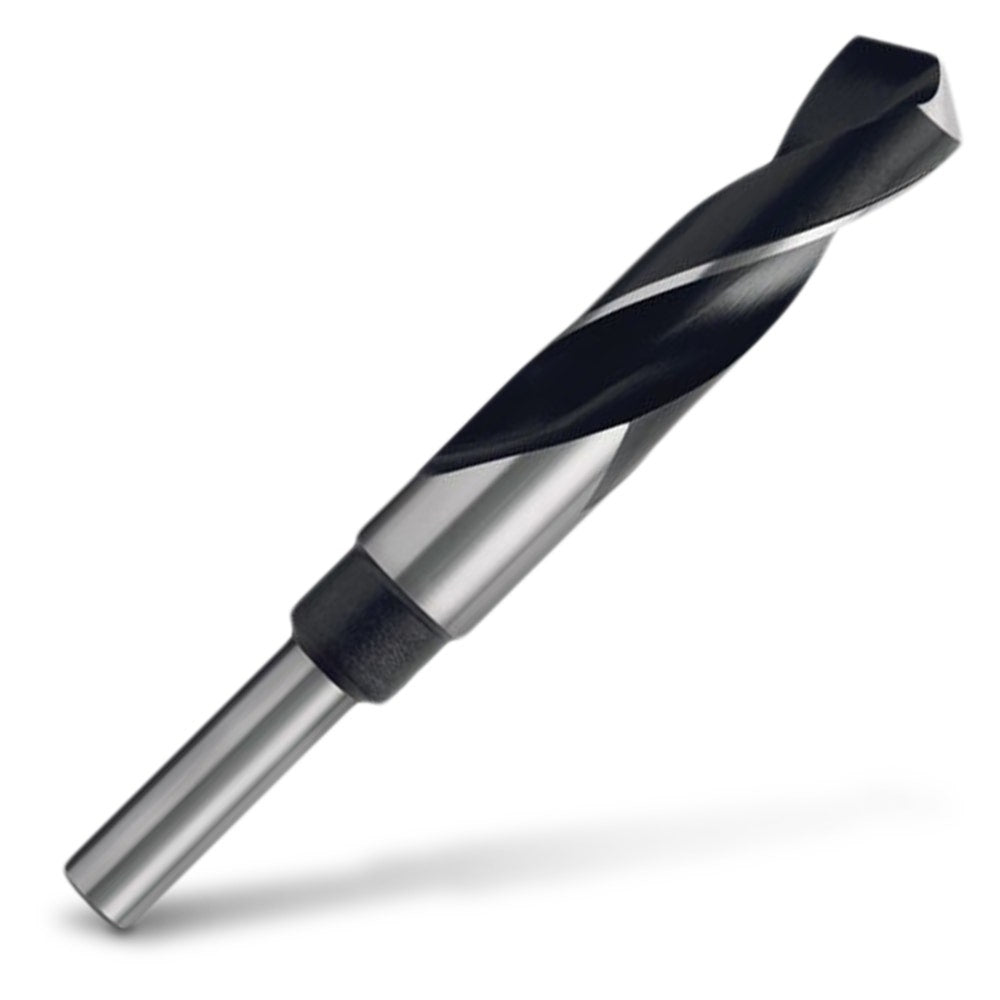

Sutton Tools D188-Series Reduced Shank Drill - 23mm

The Sutton Tools D188-Series Reduced Shank Drill is expertly designed for industrial applications and is suitable for a wide range of materials. This high-performance drill bit features a special blue surface finish, ideal for ferrous metal drilling. Its unique steam oxide finish minimizes chip buildup on cutting edges, significantly reducing cutting friction, particularly when working with low carbon steels.

Features

• Reduced Shank: Compatible with 13mm (or larger) drill chucks

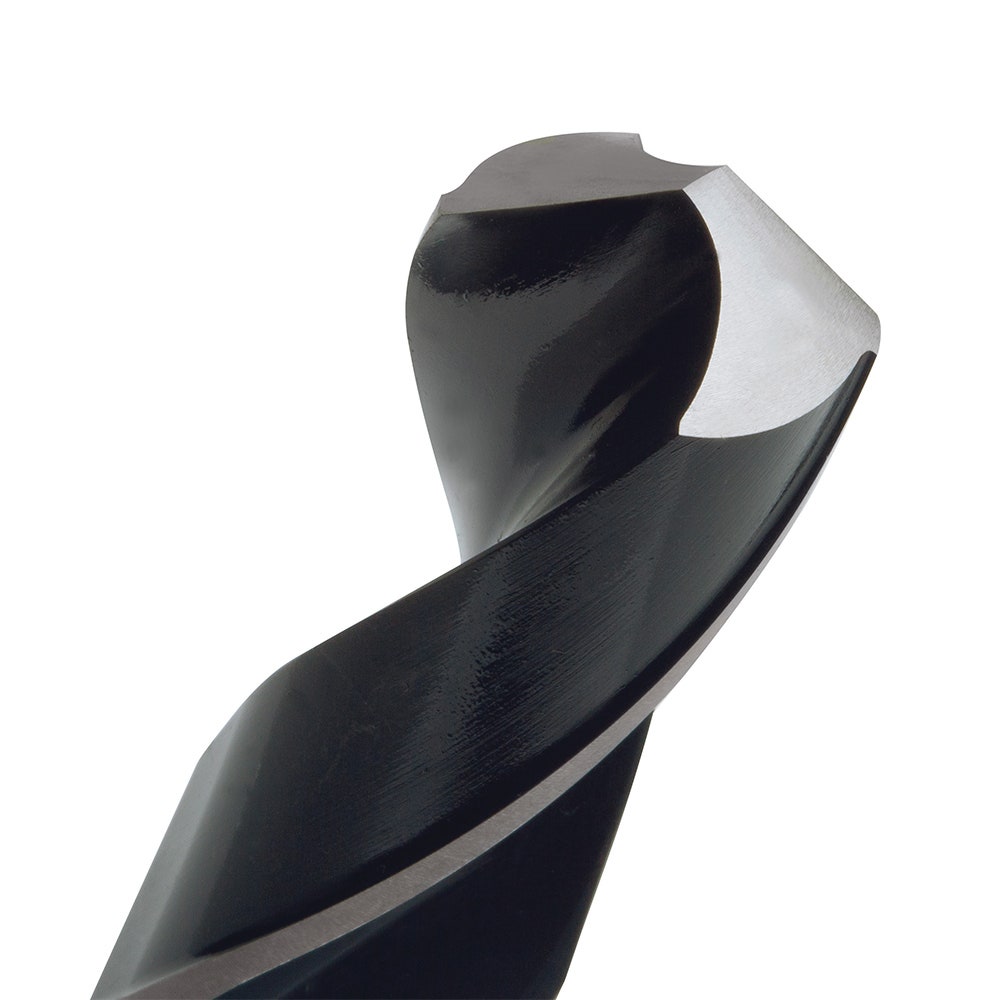

• 118° Standard Point: Ideal for general-purpose applications
• Premium Material: Made from M2 High Speed Steel (HSS) for superior strength, heat, and wear resistance
• Blue Surface Finish: Specifically designed for ferrous metal drilling applications

Contents

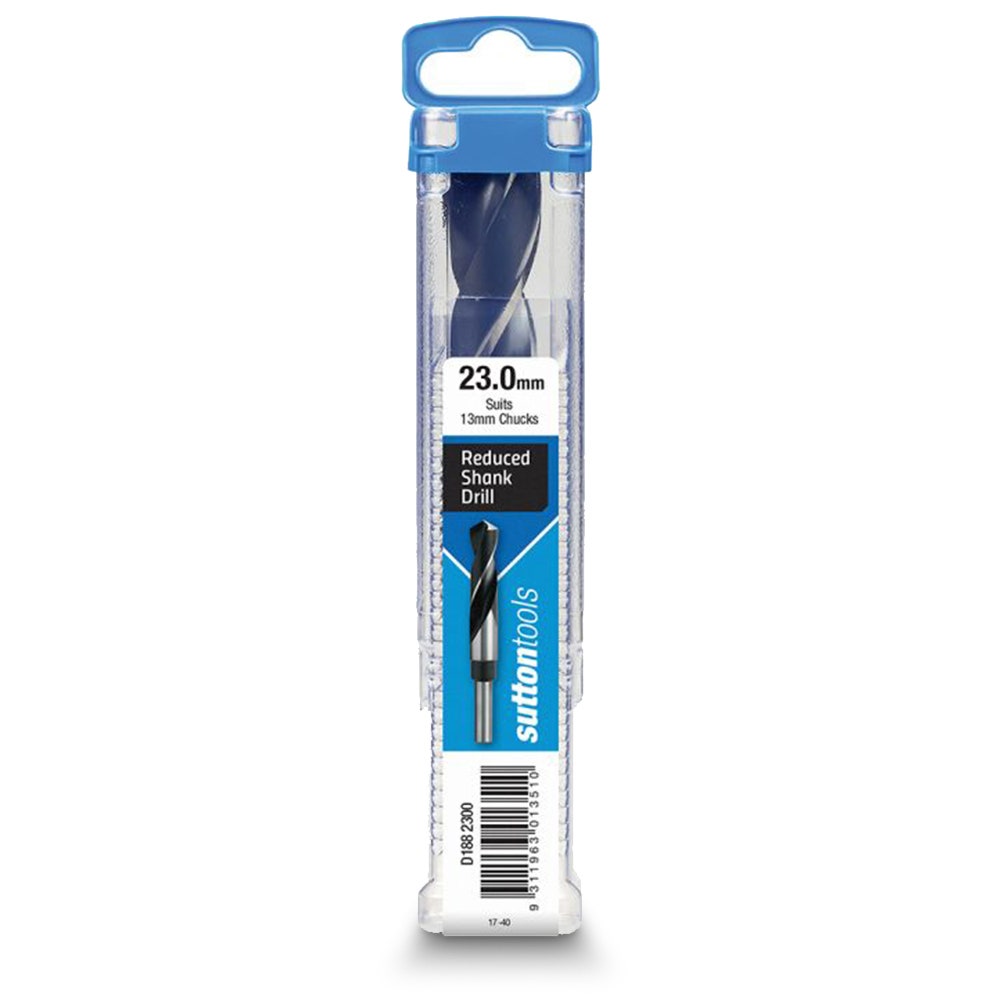

• 1 x Sutton Tools D188-Series Reduced Shank Drill - 23mm

Specifications

• Diameter: 23.0 mm
• Overall Length: 152 mm (6")
• Flute Length: 86 mm (3-3/8")
• Reduced Shank Diameter: 12.5 mm (1/2")
• Point Angle: 118° Standard
• Brand: Sutton
• Part No: D1882300
• Barcode: 9311963013510

Usage Guidelines

For optimal performance, use the Sutton Tools D188-Series Reduced Shank Drill at low speeds (350 RPM or less) to achieve the best results and prolong the lifespan of the drill bit.
