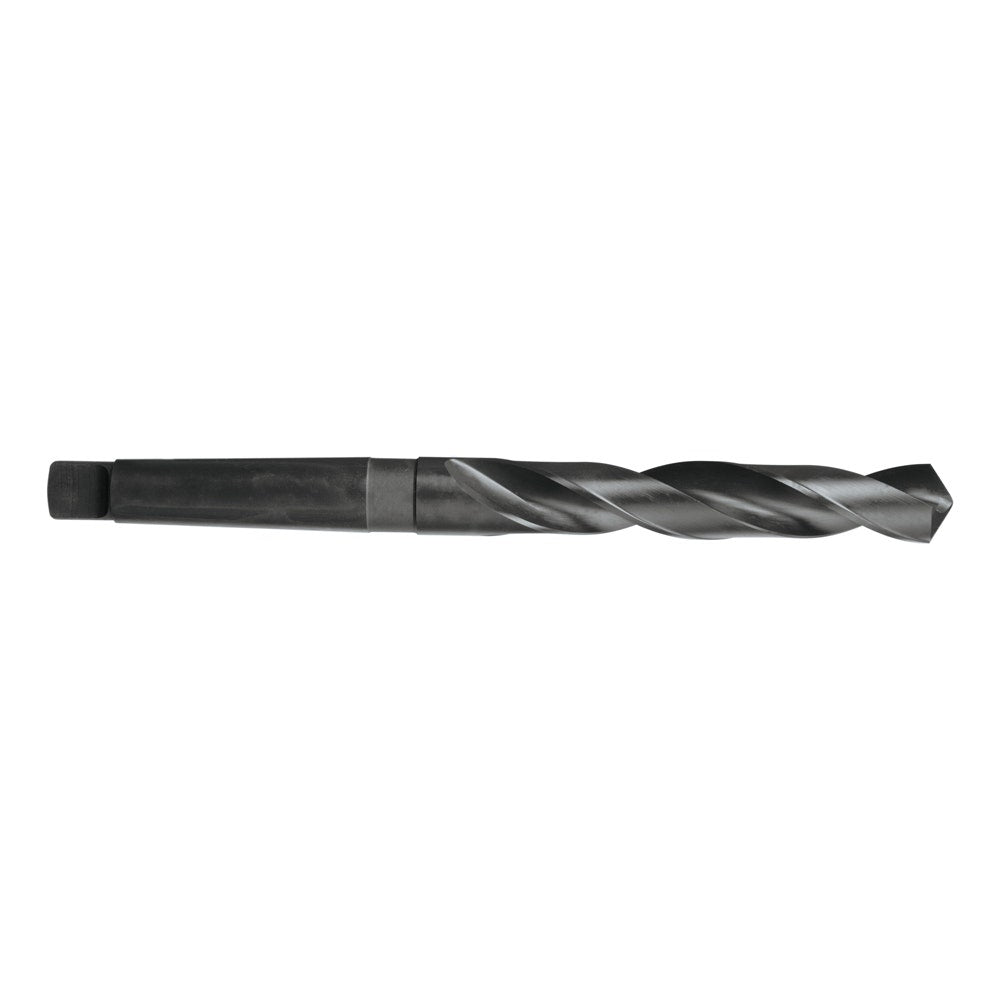

Sutton Tools D115-Series Morse Taper Shank Drill

The Sutton Tools D115-Series Morse Taper Shank Drill is expertly crafted to expand the drilling capacity of drill chucks, making it an ideal choice for large-scale boring applications. Engineered with a blue surface finish, this drill is specifically designed for ferrous metal drilling, ensuring optimal performance through reduced chip build-up and cutting friction, particularly in low carbon steels.

Contents

• 1 x Sutton Tools D115-Series Morse Taper Shank Drill

Key Features

• Reduced Shank: Compatible with 13mm (or larger) drill chucks.
• 118° Standard Point: Ideal for general-purpose applications.
• High-Speed Steel Construction: Made from M2 HSS for superior strength, heat, and wear resistance.
• Blue Surface Finish: Specifically designed for ferrous metal drilling to enhance performance.

Specifications

• Diameter: 2-5/16" (58.74 mm)
• Overall Length: 413 mm
• Flute Length: 225 mm
• Morse Taper Shank: MT5
• Point Angle: 118° Standard
• Brand: Sutton Tools
• Part Number: D1155874
• Barcode: 9311963050249

Usage Guidelines

For optimal results, it is recommended to operate the drill at low speeds (350 RPM or less) to ensure precision and longevity.
