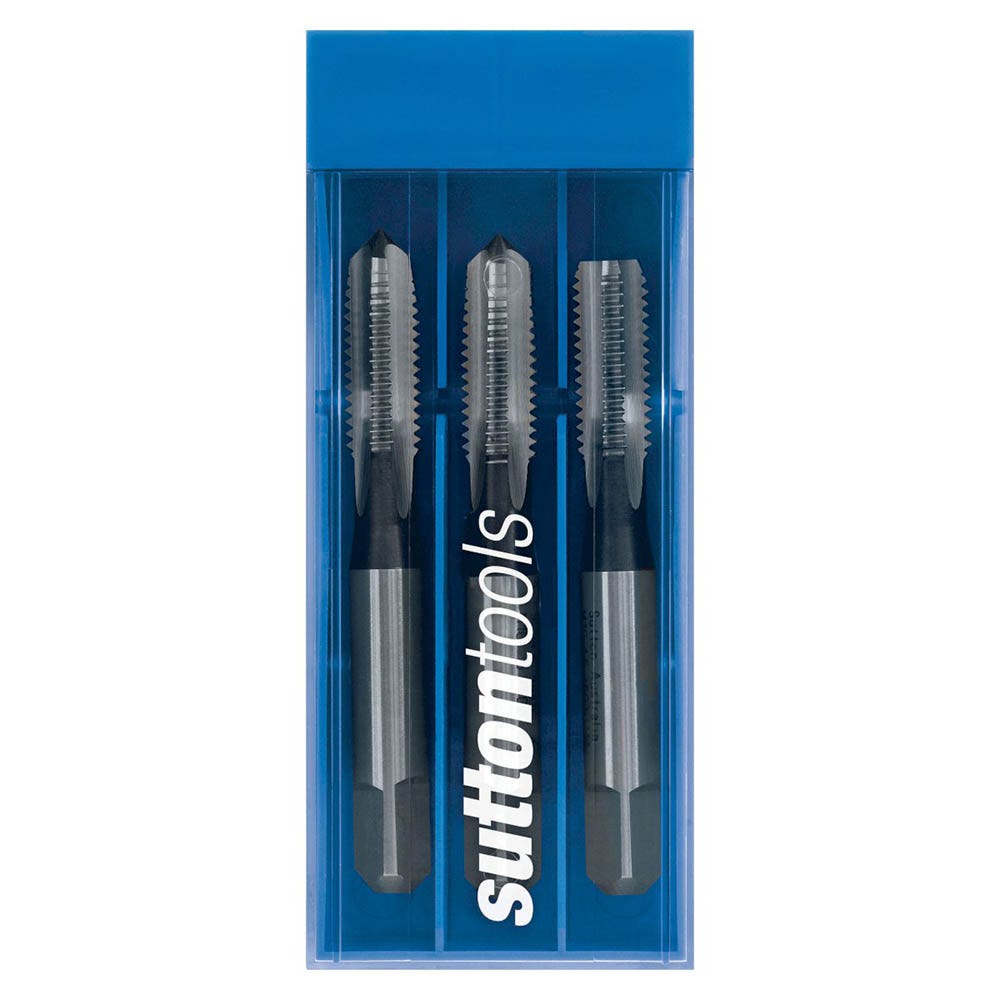

Sutton N Type HSS Taps

Introducing the Sutton N Type HSS Taps, your go-to solution for reliable threading in various applications. Designed for general-purpose use, these taps are perfect for both hand and machine operations, making them an essential tool for professionals and enthusiasts alike. Built to handle materials with strength up to 1000N/mm², they deliver consistent performance in both through and blind hole applications.

Features

• General purpose use for versatility
• Suitable for materials up to 1000N/mm²
• Compatible with both through and blind holes
• Ideal for hand and machine operations
• Maximum cut depth of approximately 1 x d1

Contents

• 1 x Sutton N Type HSS Tap

Specifications

• Designation: N
• Material: High-Speed Steel (HSS)
• Finish: Bright (Brt)
• Max Cut Depth: 1 x D
• Shank Form: A
• Standard: ISO 529
• Thread Form: UNC
• Nut Tolerance: 2B
• Lead: Set
• Threads Per Inch (TPI): 13
• Length (l1): 89 mm
• Length (l2): 29 mm
• Diameter (d2): 9 mm
• Square Size (sq): 7.1 mm
• Length (l4): 10 mm
• Number of Flutes (z): 4

Additional Information

• Part No: T9031270
• Barcode: 9311963014074
• Brand: Sutton
