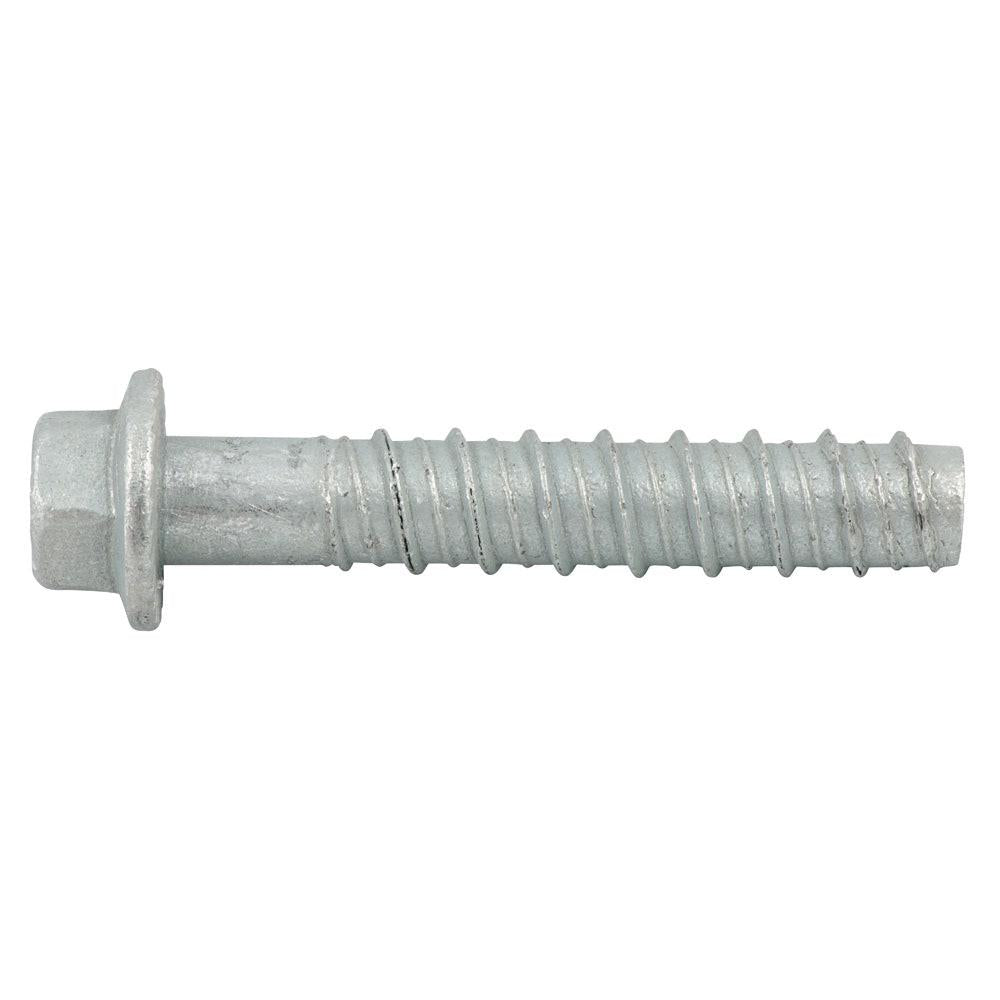

RAMSET 10 x 100mm Mechanically Galvanized WERCS AnkaScrew Screw-In Anchors 25pcs AS10100WGM

Features

• Medium duty, thread forming anchor for temporary or permanent use
• Removable design with no expansion, preventing substrate damage
• High thread engagement enhances clamp force and holding capacity
• Self-tapping installation suitable for close-to-edge or close-to-anchor applications
• Compatible with concrete, brick, solid and hollow blocks
• Quick removal leaves no protruding metal parts
• Fast and easy to install by screwing into pre-drilled holes
• Available in galvanized finish for outdoor use
• Can be installed using impact wrenches
• Thread design allows for material clearance and reduces jamming

Specifications

• Material: High Carbon Steel
• Corrosion Protection: Mechanical Galvanising
• Head Styles: Flanged Hex
• Fixing Method: Through Fixture
• Setting Method: Rotation
• Anchoring Method: Thread Forming
• Drilled Hole Diameter: 10mm
• Anchor Length: 100mm
• Maximum Fixture Thickness: 50mm
• Indicative Working Loads in 32MPa Concrete: Max Tensile 4.1kN - 14.4kN | Max Shear 4.5kN - 16.7kN
• Substrates: Concrete, Solid Brick, Solid Block, Hollow Block, Hollow Slab, Hollow Brick
