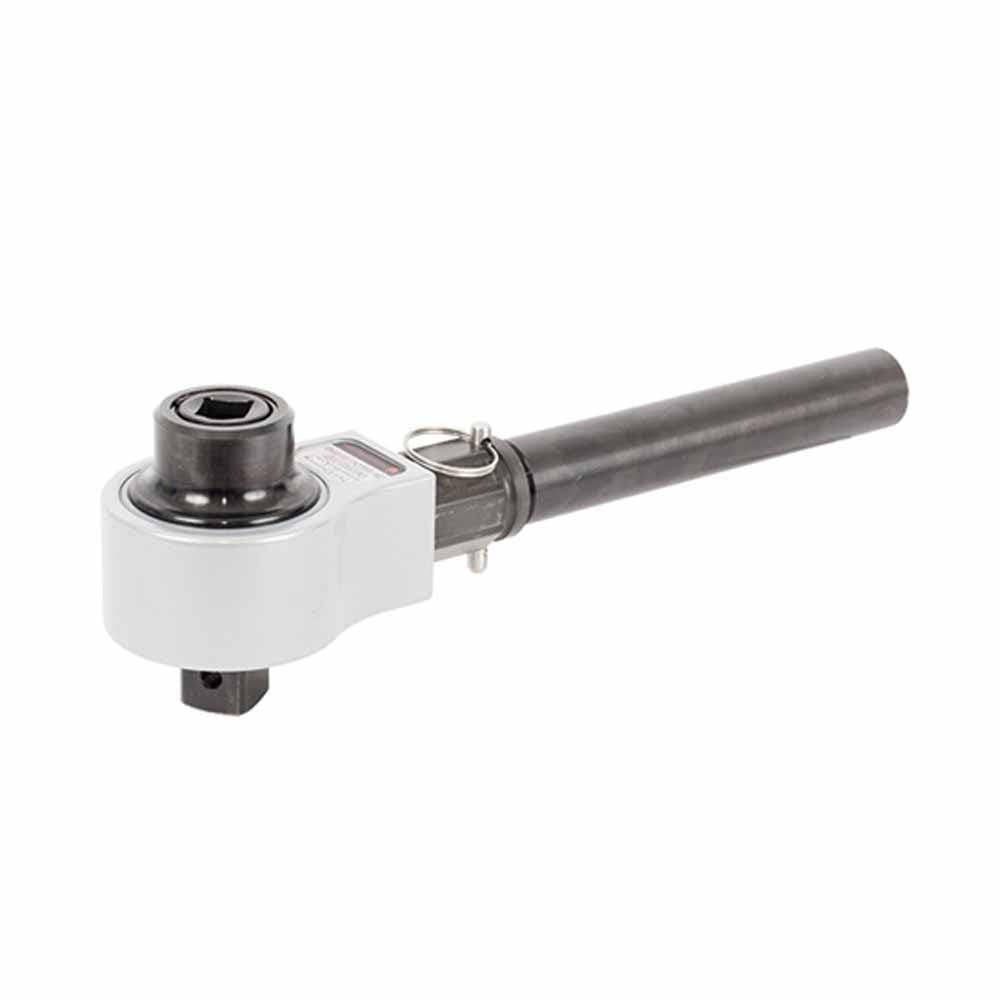

NORBAR 3 4 Inch Torque Multiplier HT3-1000 180260

Features

• Designed for higher torque applications in tight spaces
• Input via ratchet torque wrench set to 1/5 of desired output torque

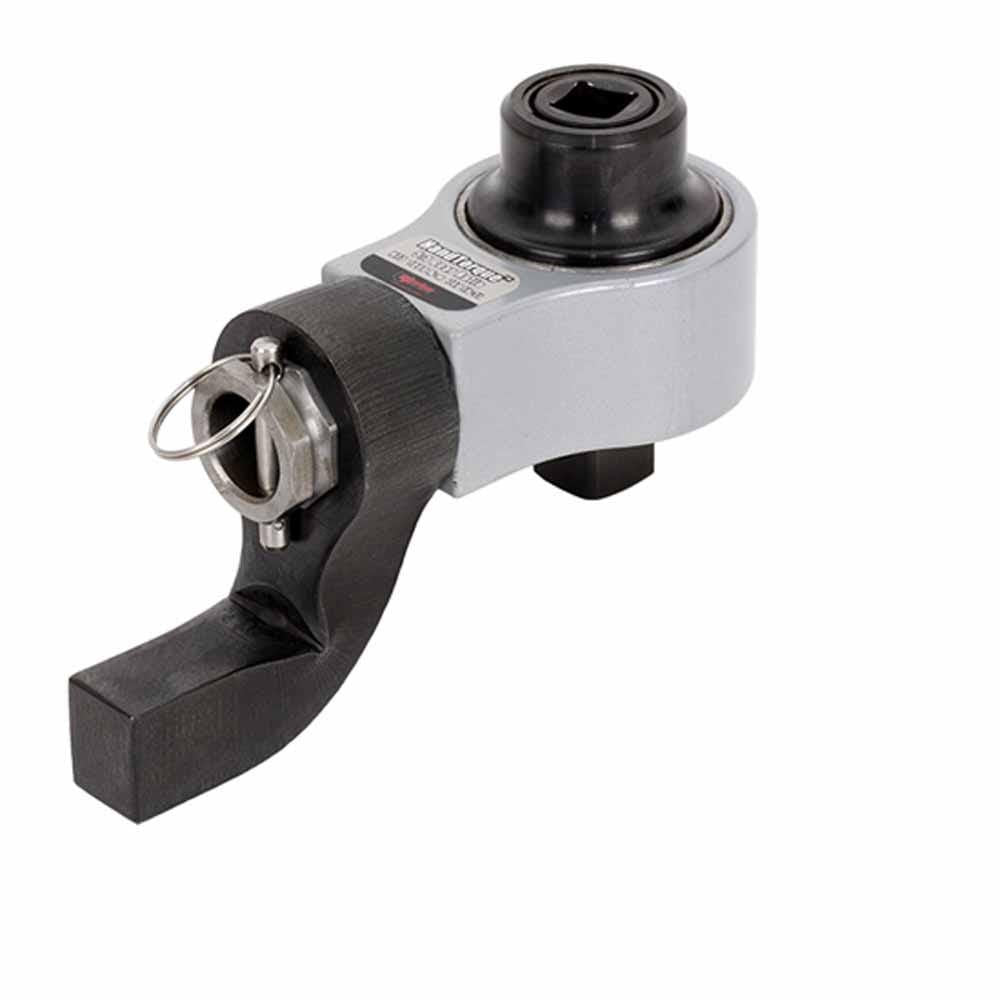

• Quick change cranked reaction with 8 orientation options
• Durable construction for low maintenance and extended lifespan
• Compact and lightweight design

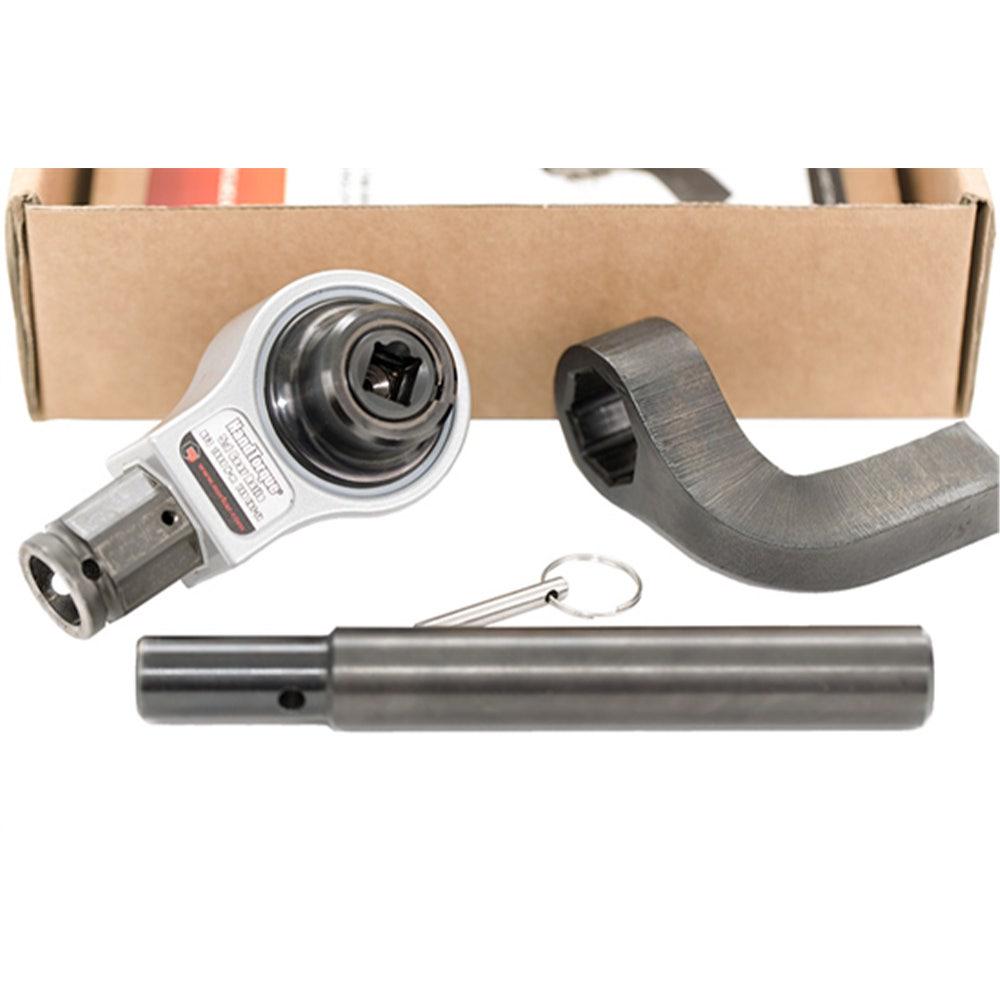

• Includes 2 reaction bar styles for enhanced versatility
• Optional UKAS accredited calibration certificate available (additional cost)

Specifications

• Output Square: 3/4"
• Input Square: 1/2"
• Reaction Plate Weight: 0.5 Kg (cranked) / 0.69 Kg (straight)
• Nominal torque multiplication: 5:1 (cranked foot: 4.8:1; straight: 4.9:1)
• Accuracy: ±4%
• Operating range: 100.00 - 1000.00 N·m | 74.00 - 738.00 lbf·ft
• Brand: Norbar
• Part No: 180260
• Barcode: 5060207565622
• Net Weight: 1.5 kg
