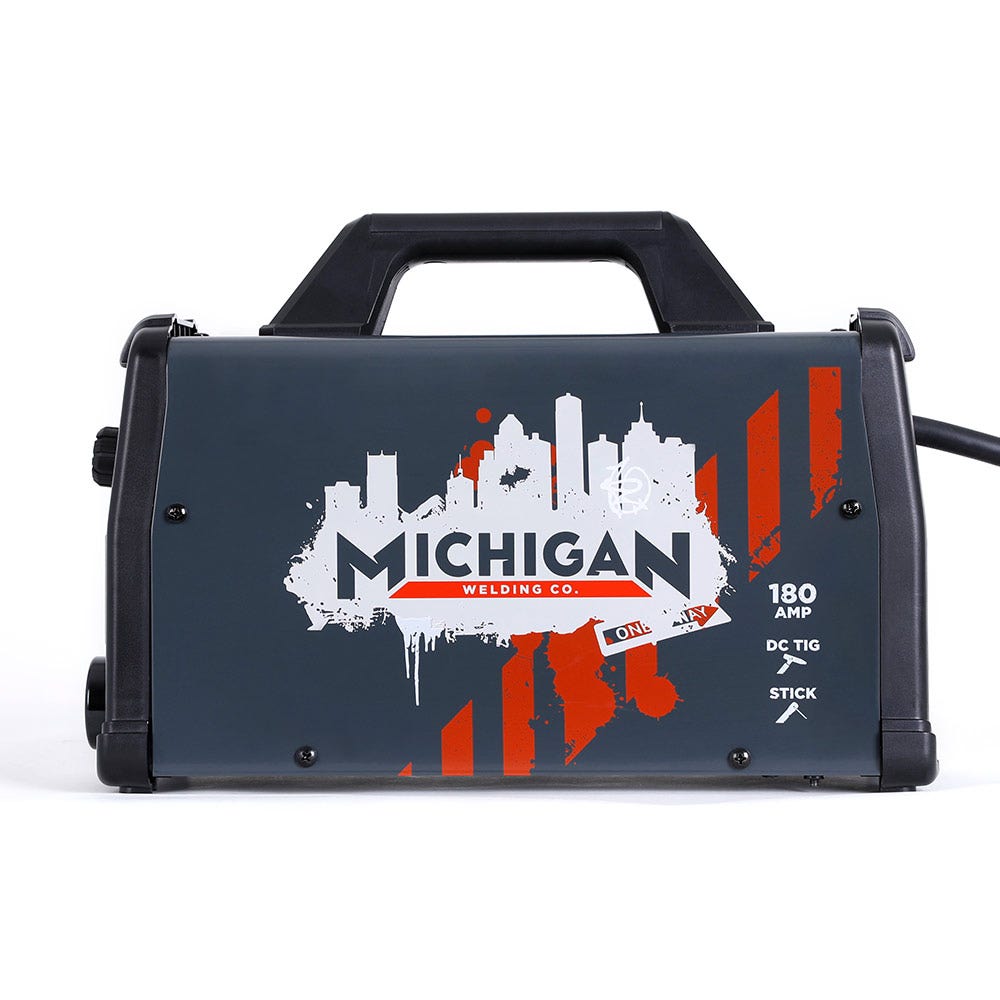

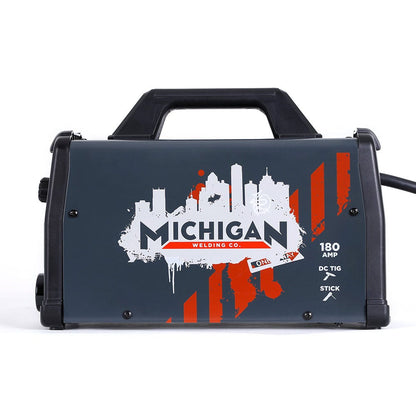

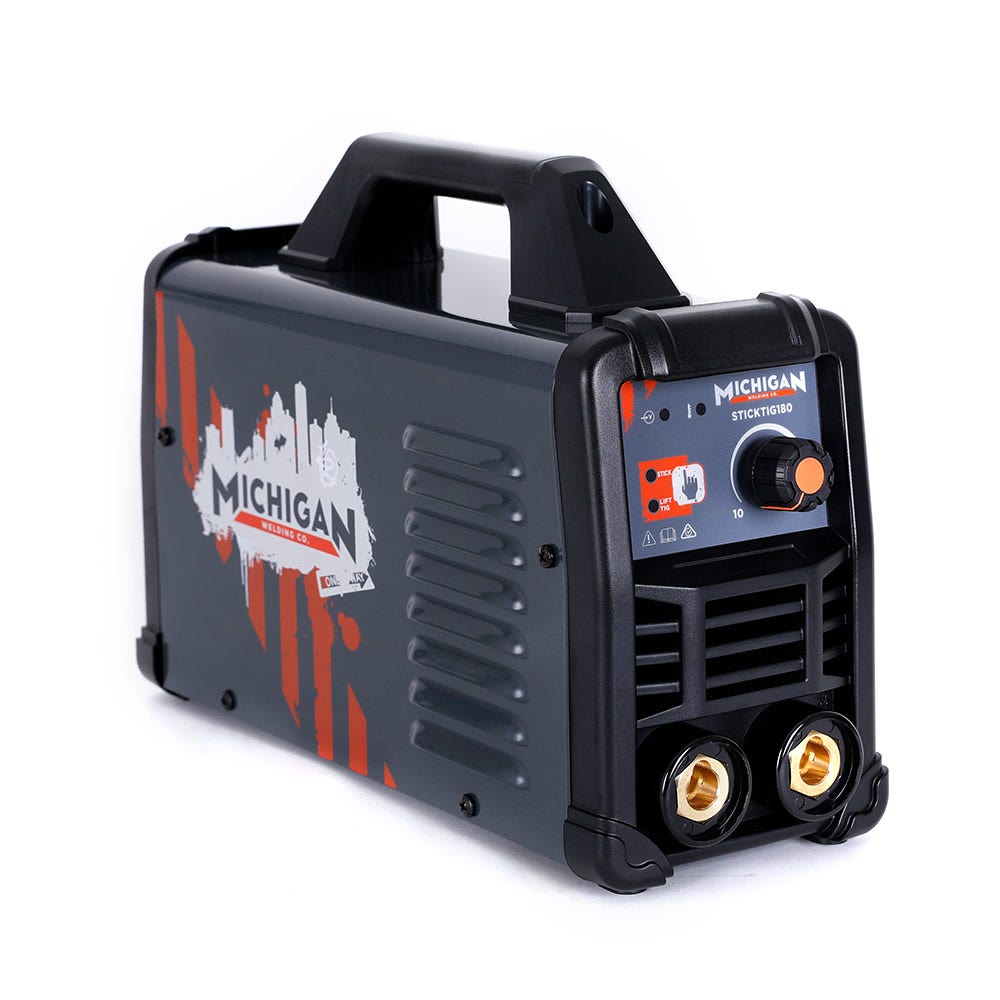

STICKTIG180 Portable DC Stick and TIG Welder

Introducing the STICKTIG180, a compact and portable stick and DC TIG welder designed for versatility and ease of use. Ideal for both DIY enthusiasts and professionals, this welder allows you to handle general-purpose electrodes up to 4.0mm with precision. Equipped with advanced features such as hot start, arc force, and anti-stick functions, the STICKTIG180 makes welding straightforward and efficient, ensuring high-quality results every time.

Key Features

• Portable and lightweight design, perfect for DIY projects
• 10-180A output range for 2.0-4.0mm general-purpose electrodes
• DC lift TIG functionality for versatile welding options
• Incorporates hot start, arc force, and anti-stick functions for enhanced performance
• 15A plug and cable for easy connection
• Professional-grade twist-lock electrode holder with 3m lead
• Thermal overload protection to safeguard internal components
• Fan-cooled for optimal performance
• Utilizes advanced IGBT inverter technology
• 3-year industry-leading warranty for peace of mind

Contents

• 180A STICK DC TIG Welder
• 3m Earth clamp

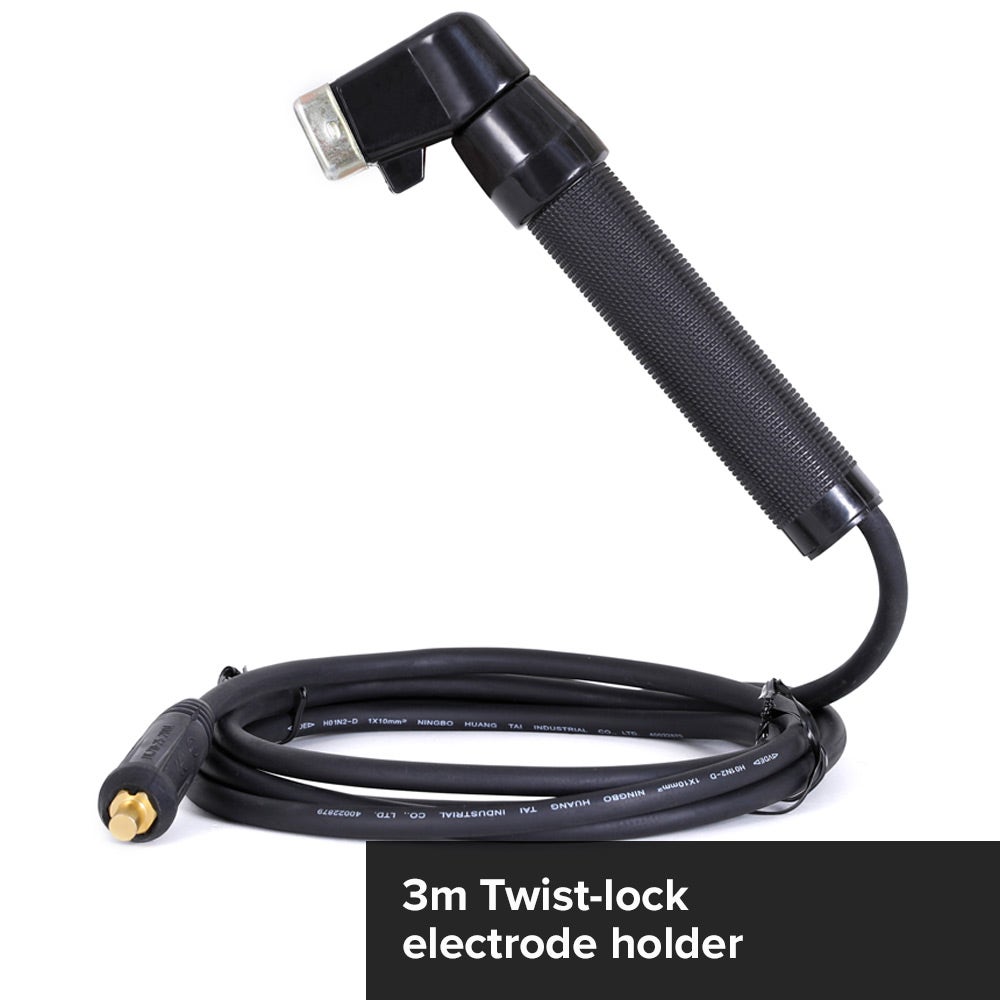

• 3m Twist-lock electrode holder
• Operating manual

Specifications

• Input Voltage: 240V/50Hz (+/- 15%)
• I1e (Effective Input Amps): 14.2A (STICK), 9.9A (TIG)
• Plug & Cable: 15A, 3G2.5mm² Core (2m length)
• I1max (Max Effective Amps): 31.7A (STICK), 22.1A (TIG)
• Output Amp Range: 10-180A
• 30-50 Dinse plug
• Recommended Generator Size: 8kVA
• Open Circuit Voltage (OCV): 92V (STICK), 14V (TIG)
• Duty Cycle: 20% at 180A for both STICK and TIG
• Power Source Weight: 4.0kg
• IP Rating: IP21S
• Maximum Size GP Electrode: 4.0mm
• Compliance: AS60974.1
