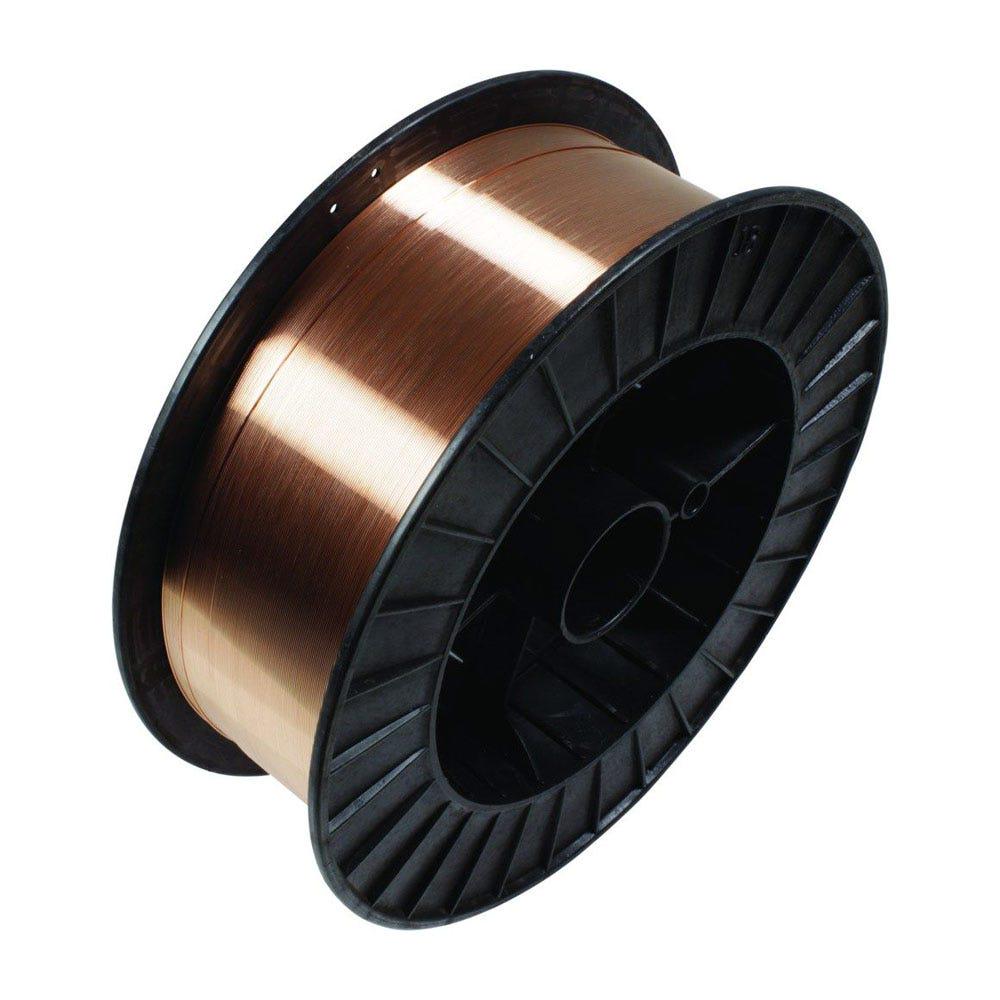

MICHIGAN 1.2mm 15kg ER70S-6 MIG Wire MER70S61215

Features

• General purpose mild steel welding wire for MIG (GMAW) applications, including multipass.
• Higher manganese and silicone content aids in de-oxidising base materials.
• Improved silicone content ensures better wetting, flatter bead shapes, and reduced spatter compared to other wire grades.
• DC EP - requires DC current with electrode positive polarity.
• Copper coated precision layer wound for enhanced performance.
• Recommended gases: 80% Argon / 20% CO2, 92% Argon / 5% CO2 / 2% O2, and 100% O2.
• Classifications: ISO14341-A-G3Si1, AS/NZS 14341:2012, AWS A5:18, ER70S-6.
• Typical mechanical properties for C02 welding grade: Yield Stress - 440 MPa, Tensile Strength - 545 MPa, Elongation - 28%, CVN Impact - 91J (-30°C).
• Typical mechanical properties for Argon & 10-25% CO2 welding grade: Yield Stress - 450 MPa, Tensile Strength - 560 MPa, Elongation - 28%, CVN Impact - 87J (-20°C).
• Approvals: Lloyds Register Grade 3YS (CO2), Grade 4YS (80% Argon/20% CO2), American Bureau of Shipping 4YSA, DB Systemtechnik Germany, Vd TUV.
• Spool diameter - 300mm.

Specifications

• Brand: Michigan
• Part No: MER70S61215
• Barcode: 9328225036866
• Net Weight: 15.24 kg
• Product Length: 310 mm
• Product Width: 110 mm
• Product Height: 310 mm
