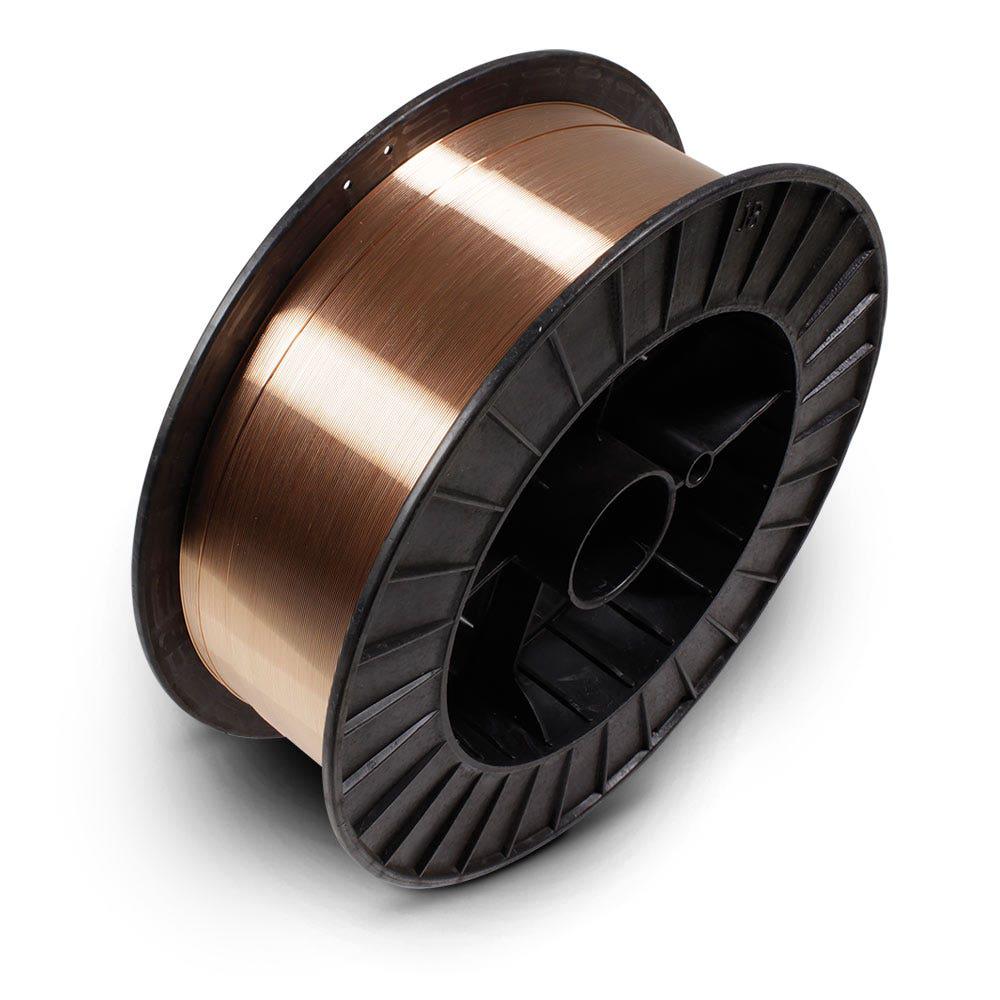

MICHIGAN 0.9mm 15kg ER70S-6 MIG Wire MER70S60915

Features

• General purpose mild steel welding wire for MIG (GMAW) applications, including multipass
• Higher manganese and silicone content aids in de-oxidising base materials
• Better wetting, flatter bead shapes, and lower spatter due to higher silicone content
• DC EP - DC current with electrode positive polarity
• Copper coated precision layer wound
• Recommended gases: 80% Argon / 20% CO2, 92% Argon / 5% CO2 / 2% O2, 100% O2
• Classifications: ISO14341-A-G3Si1, AS/NZS 14341:2012, AWS A5:18, ER70S-6
• Yield Stress: 440 MPa (CO2), 450 MPa (Argon & 10-25% CO2)
• Tensile Strength: 545 MPa (CO2), 560 MPa (Argon & 10-25% CO2)
• Elongation: 28% (both grades)
• CVN Impact: 91J (-30°C) (CO2), 87J (-20°C) (Argon & 10-25% CO2)
• Approvals: Lloyds Register to Grade 3YS (CO2), Grade 4YS (80% Argon/20% CO2), American Bureau of Shipping to 4YSA, DB Systemtechnik Germany, Vd TUV
• Spool diameter: 300mm

Specifications

• Brand: Michigan
• Part No: MER70S60915
• Barcode: 9328225036859
• Net Weight: 15.24 kg
• Product Length: 310 mm
• Product Width: 110 mm
• Product Height: 310 mm
