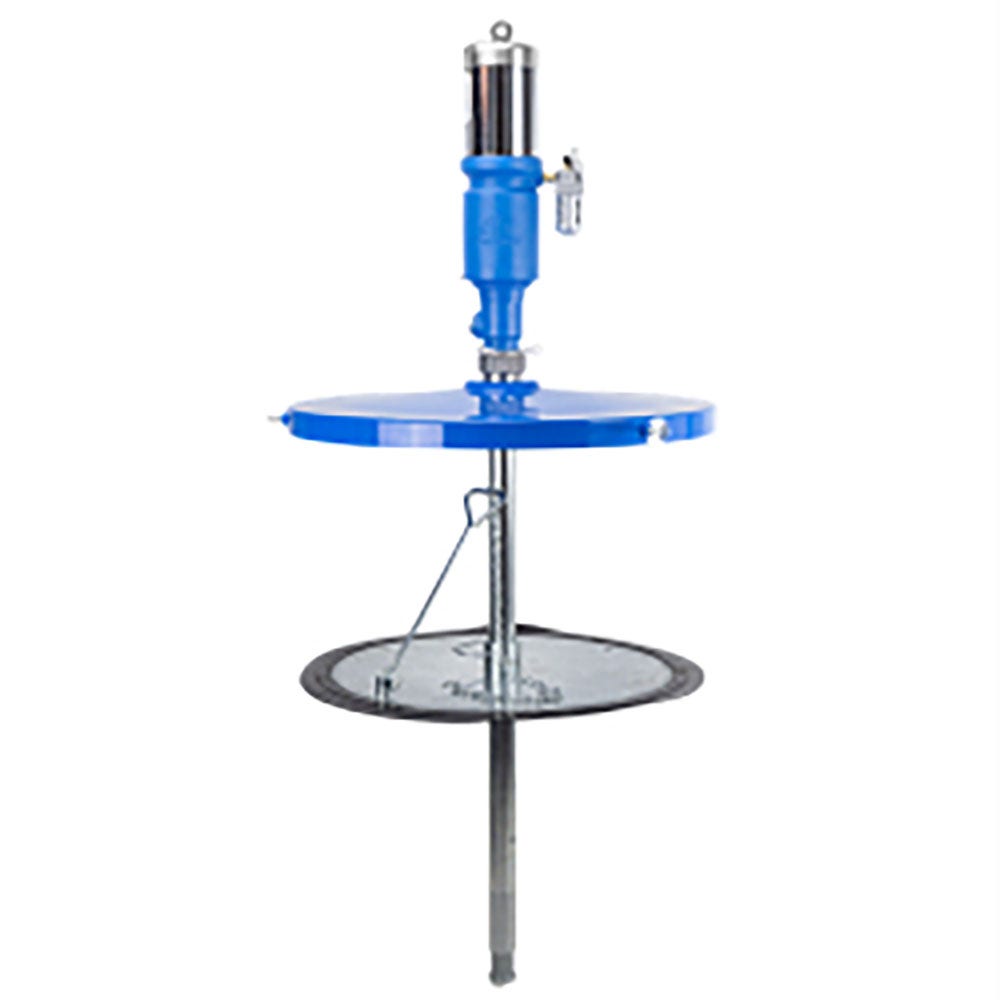

P58 MAXILUBE Heavy Duty Grease Pump

The P58 MAXILUBE is the latest innovation in air-operated grease pumps by Macnaught, engineered and manufactured in Australia. This high-performance grease pump is designed to deliver exceptional volume and pressure for 180kg grease systems, making it an ideal choice for large workshops and demanding applications.

Contents

• Introduction
• Features
• Specifications

Features

• Heavy-Duty Construction: Built for long-lasting reliability.
• High Flow Rate: Up to 6kg/min (free flow) for fast greasing.
• Quality Components: Designed for dependable operation in harsh environments.
• Noise Reduction: Large silencer integrated into the aluminium alloy body reduces noise and prevents icing.
• Rapid Pressure Recovery: Ensures instant greasing with minimal downtime.
• Extended Delivery Capability: Suitable for long grease line delivery, ideal for expansive workshop layouts.
• Fully Repairable: Spare parts readily available for ongoing maintenance.
• Peace of Mind: Backed by a 10-year warranty.
• Efficient Air Consumption: Low air consumption at just 23.5 cfm.

Specifications

• Part No: P58PLF-01
• Barcode: 9317147742450
• Brand: Macnaught
• Warranty: 10 Years
• Pressure Ratio: 58:1
• Compatible Drums: 180kg (400lb)
• Operating Air Pressure Range: 60 to 150 psi (413 kPa to 1,034 kPa)
• Max Fluid Outlet Pressure: 8700 psi (59,900 kPa)
• Max Free Flow Delivery Rate: 6 kg/min (13 lb/min) at 120 psi and 20°C (68°F)
• Noise Level: 85 dB(A) at 120 psi
• Air Inlet Size: 1/4" BSPT
• Fluid Outlet Size: 3/8" BSPT
• Grease Viscosity: Up to NLGI No.2
• Included Accessories: Lid and follower compatible with 180kg (400lbs)
• Wetted Components: Aluminium, nitrile rubber, zinc plated carbon steel, carbon PTFE
