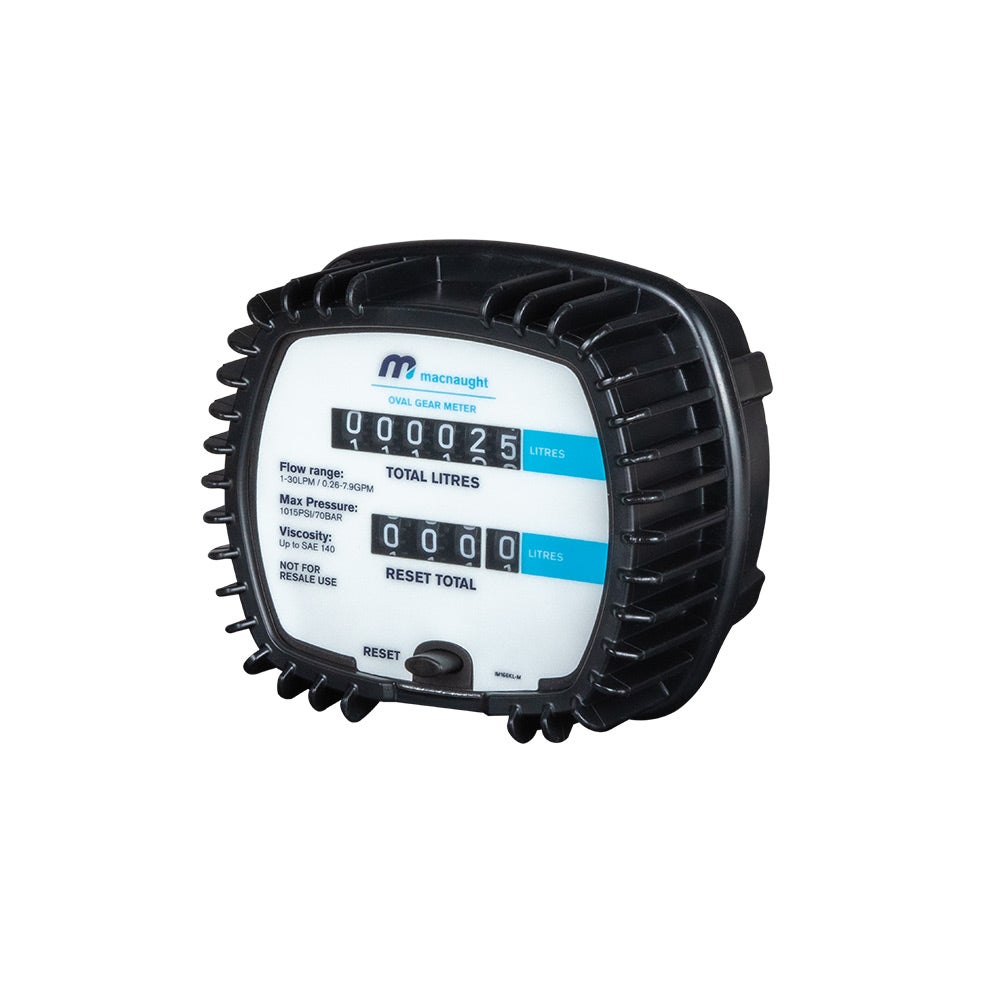

MACNAUGHT Mechanical Oil Inline Meter IM012KMM-01

Features

• Oval gear technology for precise fluid measurement
• Heavy-duty construction for durability
• Mechanical register for cumulative and resettable batch totals
• Small and versatile design suitable for mobile use
• No batteries required
• Shock-absorbing housing for protection
• Made with acetal resin oval gear
• Ready to use out of the box
• Mechanical 6-digit totaliser with 999.9 litre batch reset

Specifications

• Flow Range: 1-30 L/min
• Maximum Pressure: 1000 psi / 6895 kPa / 69 bar
• Minimum Temperature: -10°C
• Maximum Temperature: 60°C
• Meter/Register Type: Oval gear / Mechanical
• Accuracy (Flow Rate): +/- 1% (for lube oils)
• Inlet Port: 1/2 BSPT (F)
• Outlet Port: 1/2 BSPT (F)
• Compatible Fluids: Oils up to SAE140
• Accumulative Totaliser: 6 Digit
• Resettable Totaliser: 999.9 litre
• Part No: IM012KMM-01
• Barcode: 9317147753562
• Brand: Macnaught
• Warranty: 2 Year
