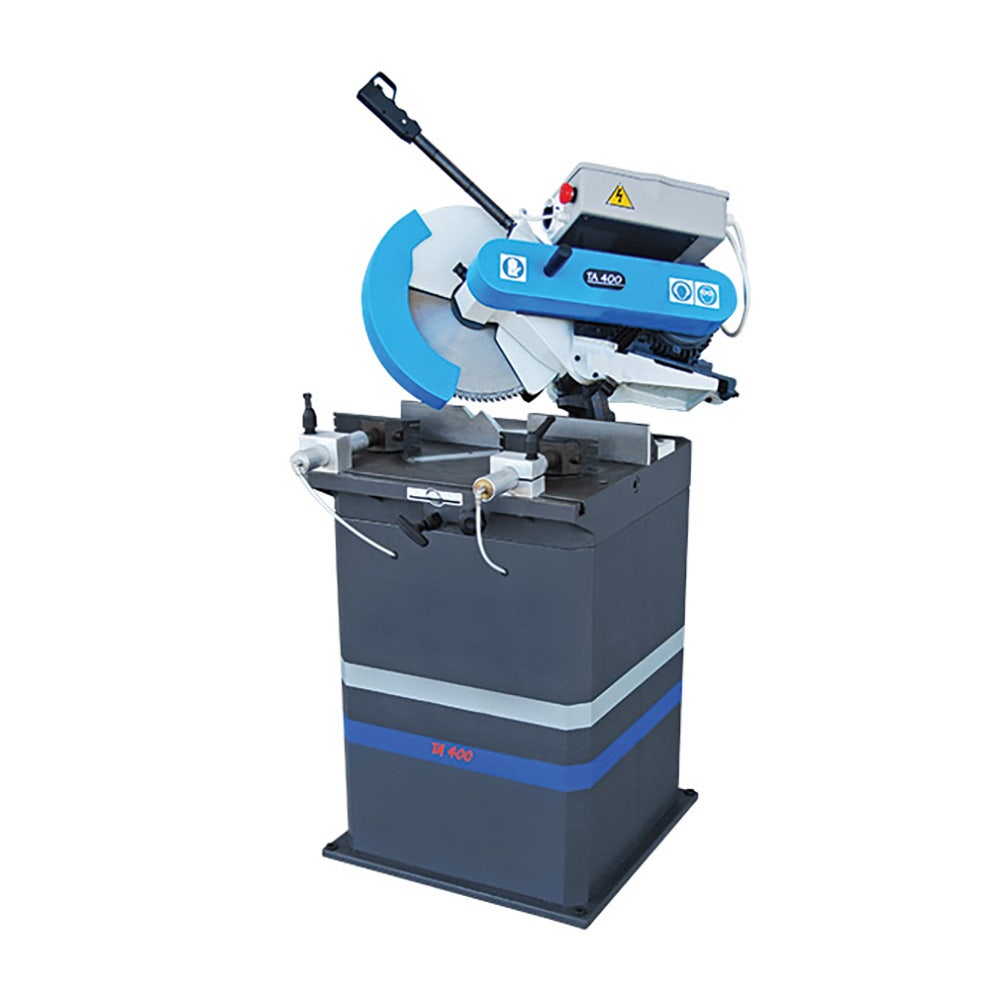

MACC 400mm Non Ferrous Cutting Saw On Stand With Pneumatic Vice and Coolant Spray 3 Phase MC-TA400P-3

Features

• Italian-made, extra heavy-duty design
• Compound mitre saw for non-ferrous metals
• Cutting capabilities for aluminium, copper, brass, etc.
• Swivel head with 45° right and left movement
• 45° mitre head to the left
• Easy trigger switch operation
• Twin manual sliding vices with Teflon jaws
• Fully recirculating coolant system
• Pneumatic features as per TA400 model
• Automatically clamps material with pneumatic spring return vices
• Activates cutting fluid supply when triggering
• Material releases when cutting head returns; fluid mist deactivates
• Safety emergency stop switch included
• Comes with a stand
• 12 months warranty
• Blade sold separately
• Compressor required for vice operation

Specifications

• Motor: 3hp Three Phase 415V
• Blade Speed: Single Speed 3000rpm
• Blade Size: 400mm
• Blade Bore: 32mm
• Weight: 190kg
• 90° Cutting Capacity: Solid Round: 60mm
• 90° Cutting Capacity: Hollow Round: 140mm
• 90° Cutting Capacity: Square: 110mm
• 90° Cutting Capacity: Rectangle: 180 x 100mm
• 45° Left Cutting Capacity: Solid Round: 60mm
• 45° Left Cutting Capacity: Hollow Round: 130mm
• 45° Left Cutting Capacity: Square: 100mm
• 45° Left Cutting Capacity: Rectangle: 150 x 100mm
