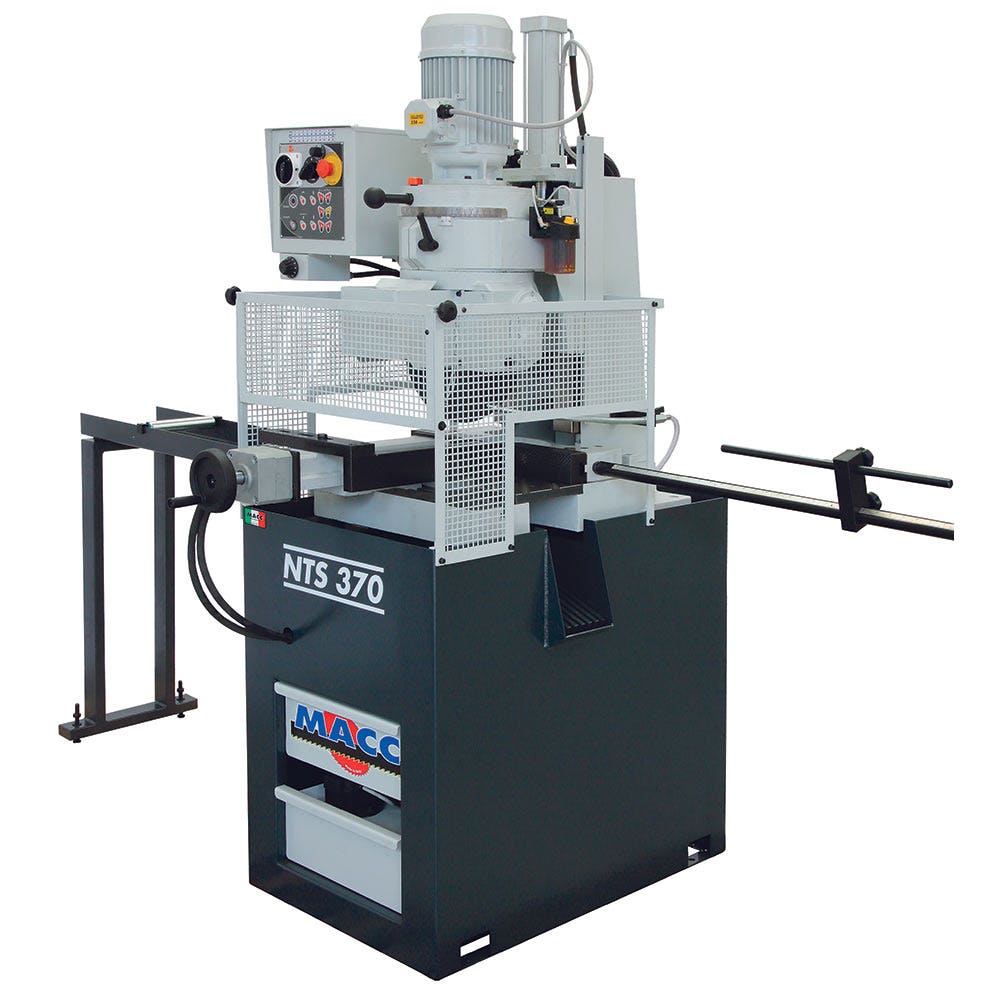

MACC 370mm Semi Automatic Vertical Coldsaw 3 Phase MC-NTS370-3

Features

• Vertical coldsaws provide better rigidity than standard horizontal models, reducing chatter and improving cut finish quality.
• Semi-Auto machine automates the cutting cycle with the following steps:
• Vice closes and blade motor starts.
• Cutting head downstroke occurs.
• Return of head and blade motor stops.
• Vice re-opens.
• Made in Italy, ensuring high quality.
• Swivel head adjusts 45° left & right.
• Recirculating coolant system with an electric pump included.
• Adjustable material stop for repeated production.
• Material output conveyor facilitates easier handling.
• Guarded cutting area enhances safety.
• Includes blade and stand.

Specifications

• Motor: 3.4HP Three Phase 415V
• Blade Speed: 2 Speed 12 / 25rpm
• Blade Size: 370mm
• Blade Bore: 32mm
• Weight: 500kg
• Cutting Capacity at 90°: Solid Cylinder 100mm, Hollow Cylinder 130mm, Box 120 x 120mm, Rectangle 170 x 100mm
• Cutting Capacity at 45° (L&R): Solid Cylinder 100mm, Hollow Cylinder 130mm, Box 100 x 100mm, Rectangle 140 x 100mm
• Part No: MC-NTS370-3
• Barcode: 9328042032669
• Brand: Macc
• Warranty: 1 Year
• Net Weight: 500kg
