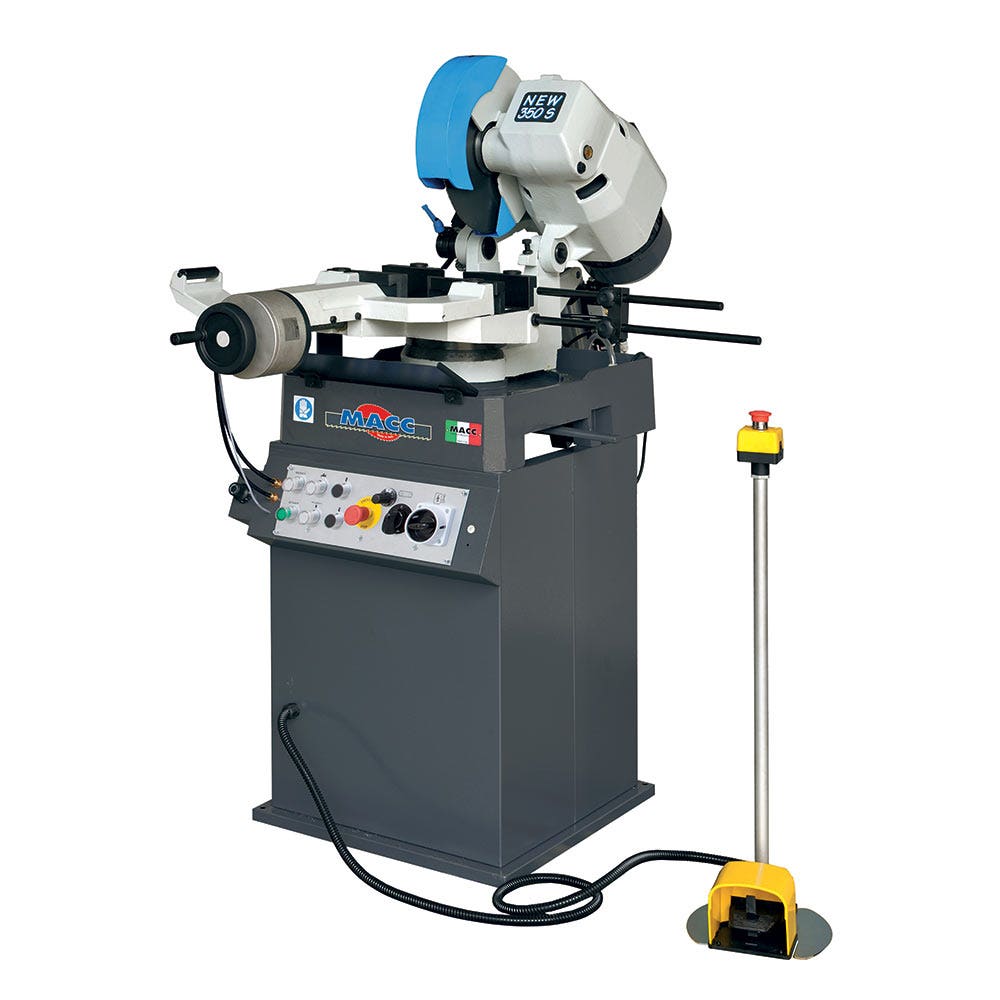

MACC 350mm Doble Vice Semi Automatic Coldsaw 3 Phase MC-NEW350S-3

Features

• Semi-Auto machine automates cutting cycle operations:
• Vice closes and blade motor initiates.
• Cutting head descends.
• Head returns and blade motor stops.
• Vice re-opens.
• Italian quality construction.
• Swivel head with 45° left & right movement.
• Quick-locking double vice for burr-free cutting.
• Mechanical coolant system circulates coolant on both sides of the blade.
• Adjustable material stop included.
• Requires compressor to operate vice.
• Includes blade and stand with purchase.
• Optional remote foot switch and emergency stop switch (part# MCP-NEW350S-090).

Specifications

• Motor: 3.2HP Three Phase 415V
• Blade Speed: 2 Speed 20 / 40rpm
• Blade Size: 350mm
• Blade Bore: 32mm
• Weight: 280kg
• Cutting Capacity at 90°: Solid Cylinder: 60mm / Hollow Cylinder: 110mm / Box: 100 x 100mm / Rectangle: 120 x 80mm
• Cutting Capacity at 45°: Solid Cylinder: 55mm / Hollow Cylinder: 80mm / Box: 80 x 80mm / Rectangle: 80 x 80mm
