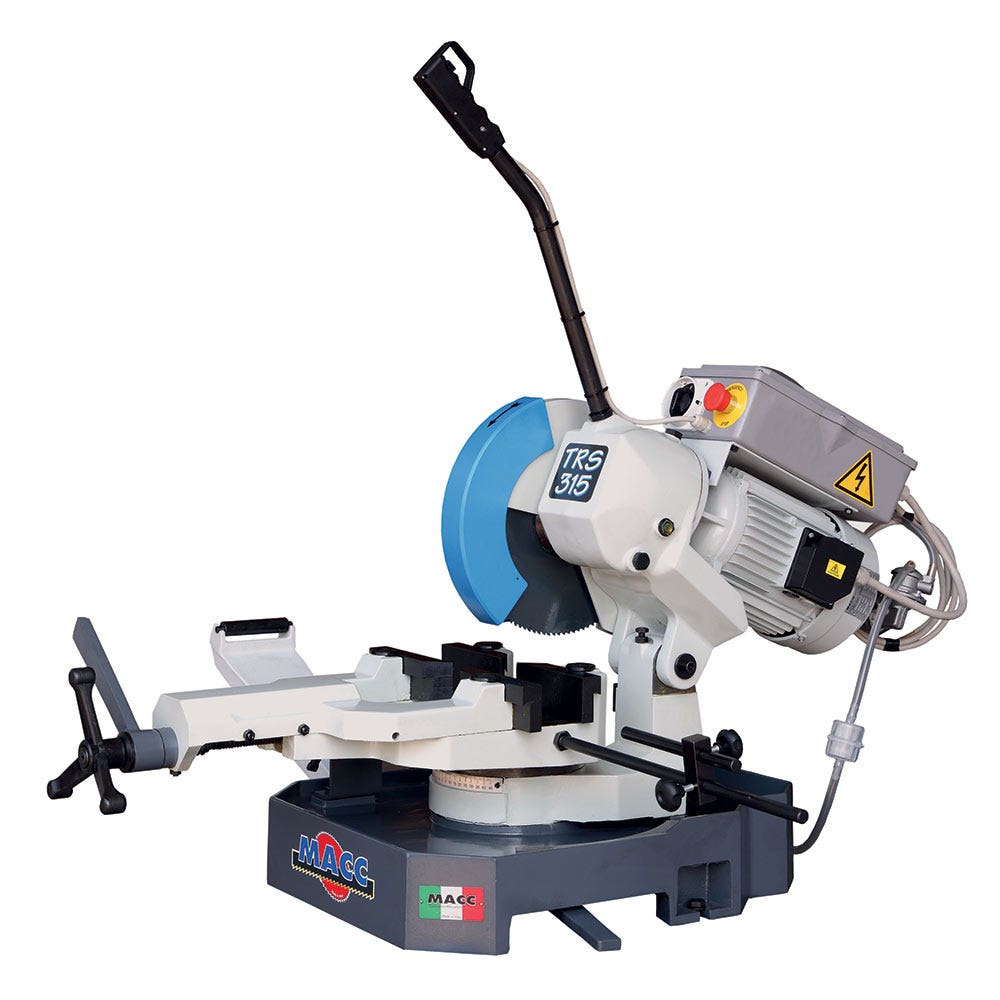

MACC 315mm Slow Speed Coldsaw 3 Phase MC-TRS315EDVS-3

Features

• Specially designed for cutting stainless steel.
• High-quality Italian craftsmanship.
• Electric pump recirculating coolant system.
• Instant coolant flow for efficient operation.
• Flood coolant application for cooler cuts and enhanced blade life.
• Swivel head with 45° left and right movement.
• Trigger switch operation for easy use.
• Quick locking double vice for burr-free cutting.
• Mechanical coolant system supplies coolant to both sides of the blade.
• Adjustable material stop for repeatable production.
• Includes blade upon purchase.
• Optional stand available (part# MC-STAND315).

Specifications

• Motor: 3HP Three Phase
• Blade Speed: 2 Speed 20 / 40rpm
• Blade Size: 315mm
• Blade Bore: 32mm
• Weight: 165kg
• Cutting Capacity at 90°: Solid Cylinder: 55mm, Hollow Cylinder: 90mm, Box: 80 x 80mm, Rectangle: 115 x 70mm
• Cutting Capacity at 45°: Solid Cylinder: 50mm, Hollow Cylinder: 80mm, Box: 70 x 70mm, Rectangle: 70 x 70mm
