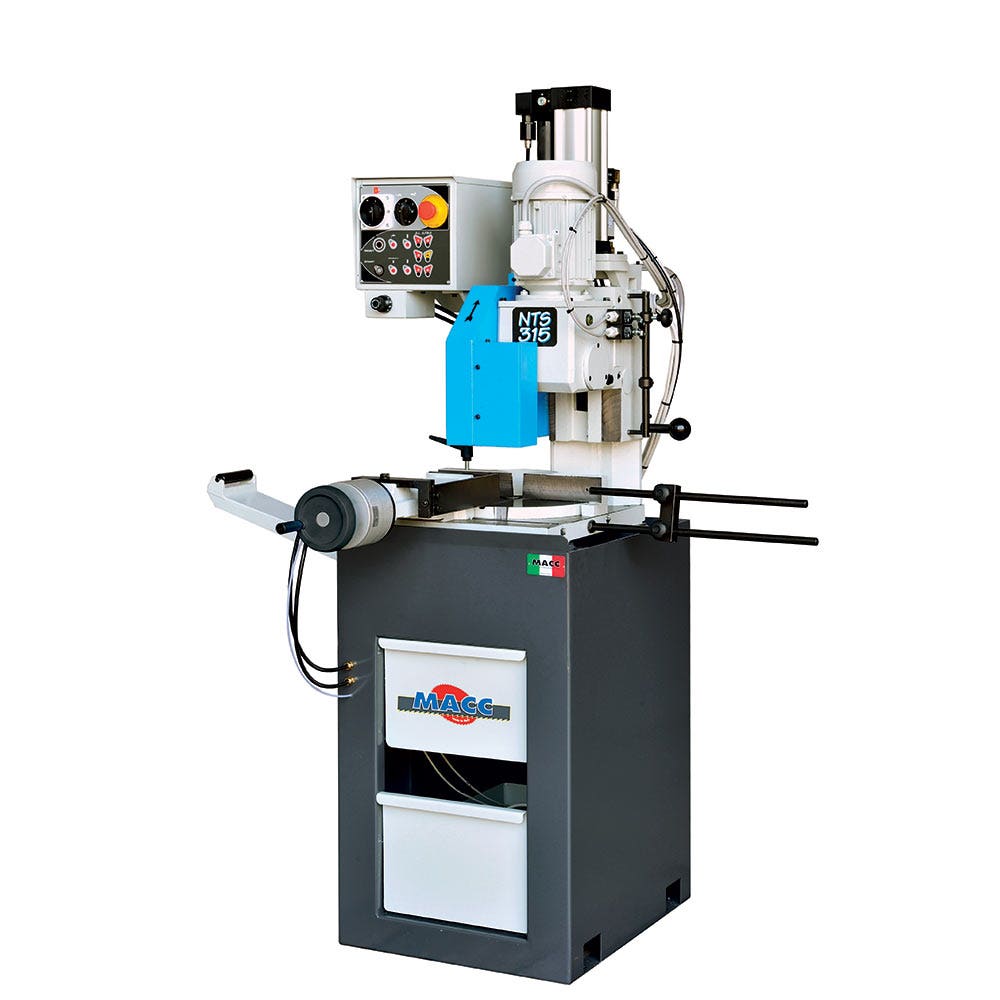

MACC 315mm Semi Automatic Vertical Coldsaw 3 Phase MC-NTS315-3
MACC 315mm Semi Automatic Vertical Coldsaw 3 Phase MC-NTS315-3
Regular price
$17,602.50 AUD
Regular price
$23,470.00 AUD
Sale price
$17,602.50 AUD
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Features
- Increased rigidity with vertical coldsaws reduces chatter and improves cut finish.
- Semi-Auto operation includes: vice closing, blade motor start, cutting head downstroke, head return, and vice reopening.
- Italian crafted for quality.
- Swivel head capability: 45° left & 60° right.
- Electric pump recirculating coolant system.
- Adjustable material stop for repetitive cutting tasks.
- Requires compressor to operate vice.
- Includes blade and stand.
Specifications
- Motor: 2.5HP Three Phase 415V
- Blade Speed: 2 Speed 33 / 66rpm
- Blade Size: 315mm
- Blade Bore: 32mm
- Weight: 300kg
- Cutting Capacity at 90°: Solid Cylinder 70mm, Hollow Cylinder 100mm, Box 90 x 90mm, Rectangle 135 x 80mm
- Cutting Capacity at 45° (L&R): Solid Cylinder 70mm, Hollow Cylinder 100mm, Box 90 x 90mm, Rectangle 100 x 80mm
- Cutting Capacity at 60° (R): Solid Cylinder 70mm, Hollow Cylinder 80mm, Box 70 x 70mm, Rectangle 80 x 70mm
