LEICA 3x360-Deg Green Multiline Laser Kit LG918977

Features

• Two vertical and one horizontal 360° green laser lines
• Optimal visibility with green ultra-power laser diodes
• Self-leveling capability across a wide range
• Fixed plumb point with integrated base
• Adjustable laser line intensity
• Operating range up to 35 meters
• Powered by Li-Ion battery for up to 11 hours
• Continuous operation with Triple-Power concept
• Smart magnetic adapters for versatile use

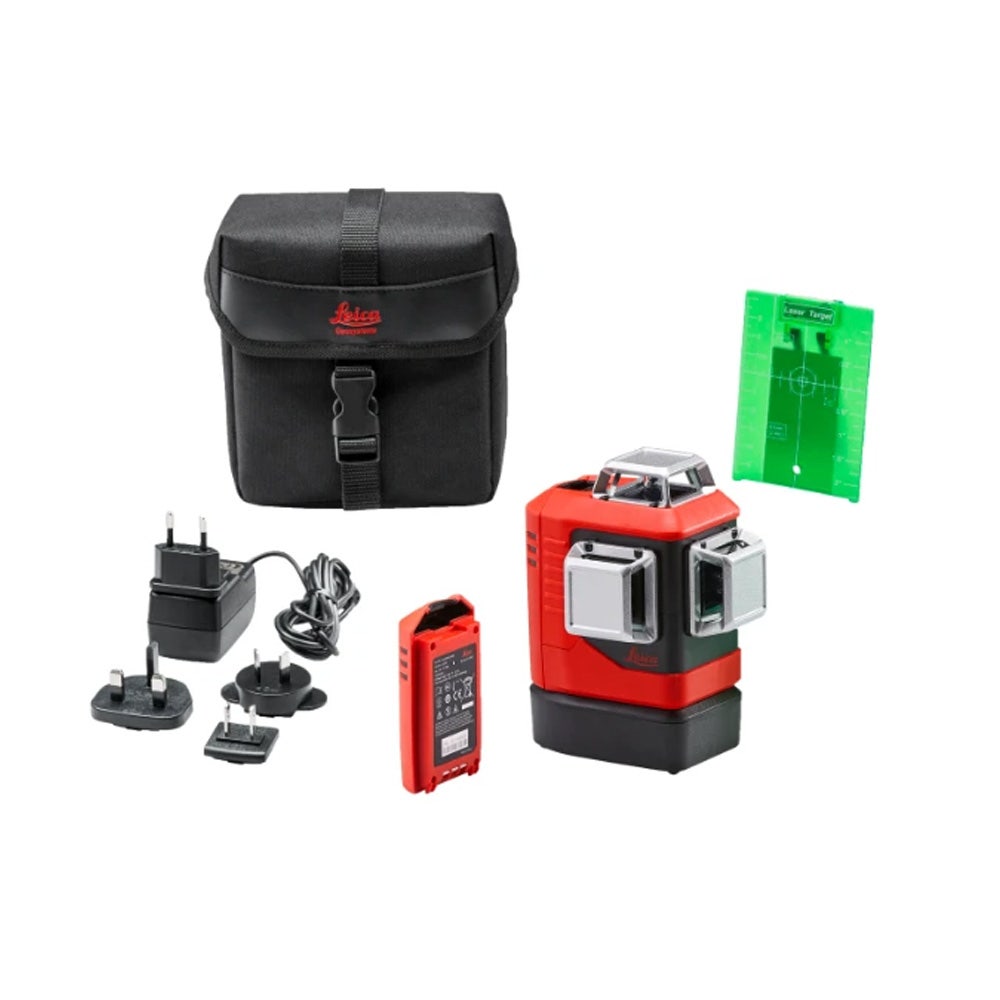

• Includes: 3x360-Deg Green Multiline Laser, Li-Ion battery pack, charger, alkaline battery tray, target plate, quick start guide, calibration certificate, soft case

Specifications

• Beam horizontal: 360°
• Beam vertical: 2 x 360°
• Intersection points: up, down, right, left, front, back (90° / 180°)
• Range / diameter: 35 m / 70 m (115 ft / 230 ft)
• Range / diameter with Leica RGR 200 receiver: 70 m / 140 m (230 ft / 460 ft)
• Levelling accuracy: ± 0.2 mm/m (± 0.002 in/ft)
• Horizontal and vertical line accuracy: ± 0.3 mm/m (± 0.004 in/ft)
• Intersection point accuracy: ± 0.2 mm/m (± 0.002 in/ft)
• Self-levelling range: ± 4°
• Self-levelling time: < 5 seconds
• Fine adjustment: ± 10° around vertical intersection point
• Out-of-level warning: blinking lines every 5 seconds
• Levelling: pendulum (lockable)
• Laser: 525 nm / class 2 (according to IEC 60825-1)
• Protection class: IP54 (dust and splash water resistant)
• Battery type: Li-Ion battery pack 5200mAh / 18.7Wh or 3xAA Alkaline
• Laser line intensity (selectable): 100 %, 75 %, 50 %
• Operating time with Li-Ion: up to 11 h (3 beam, 50 % power)
• Operating time with Alkaline: up to 8 h (3 beam, 50 % power)
• Operating temperature: -10 to +50° C (14 to 122° F)
• Storage temperature: -25 to +70° C (-13 to +158° F)
• Tripod thread: 1/4 in (5/8 in with adapter)
