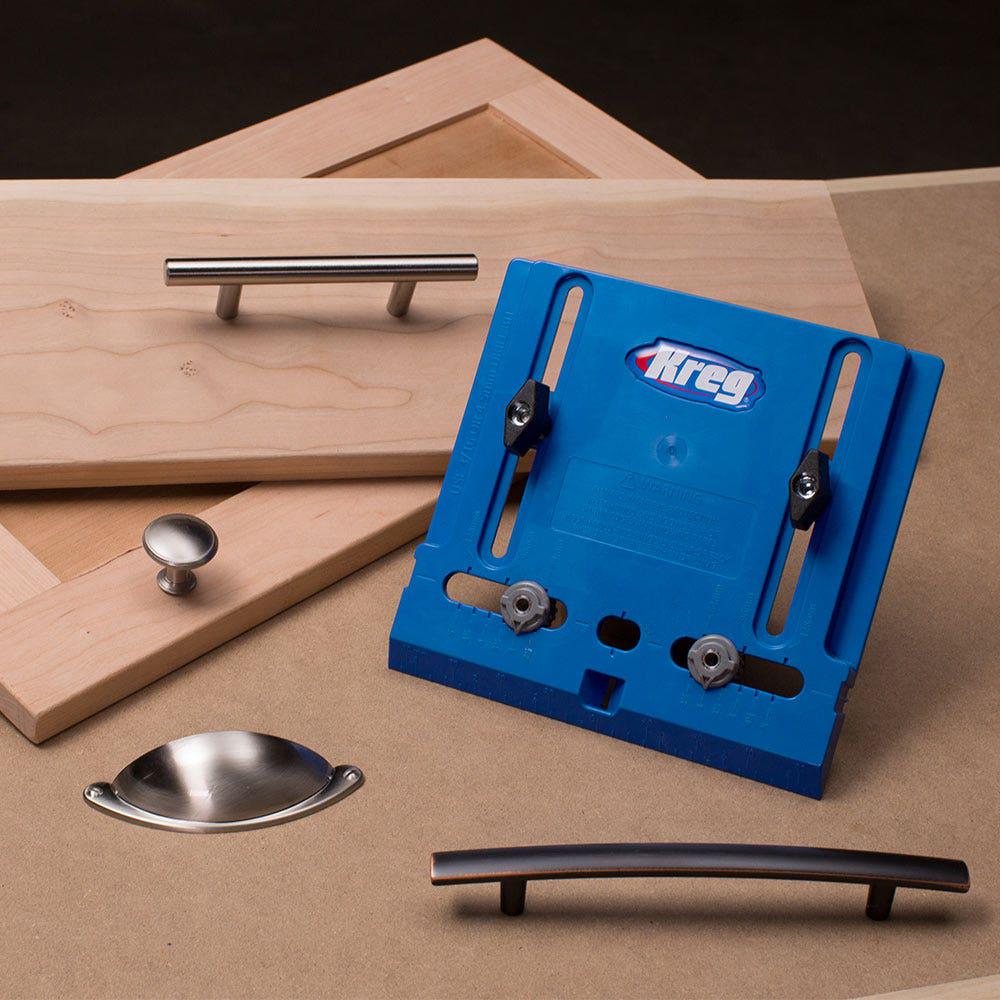

KREG Cabinet Hardware Jig KR-KHI-PULL

Features

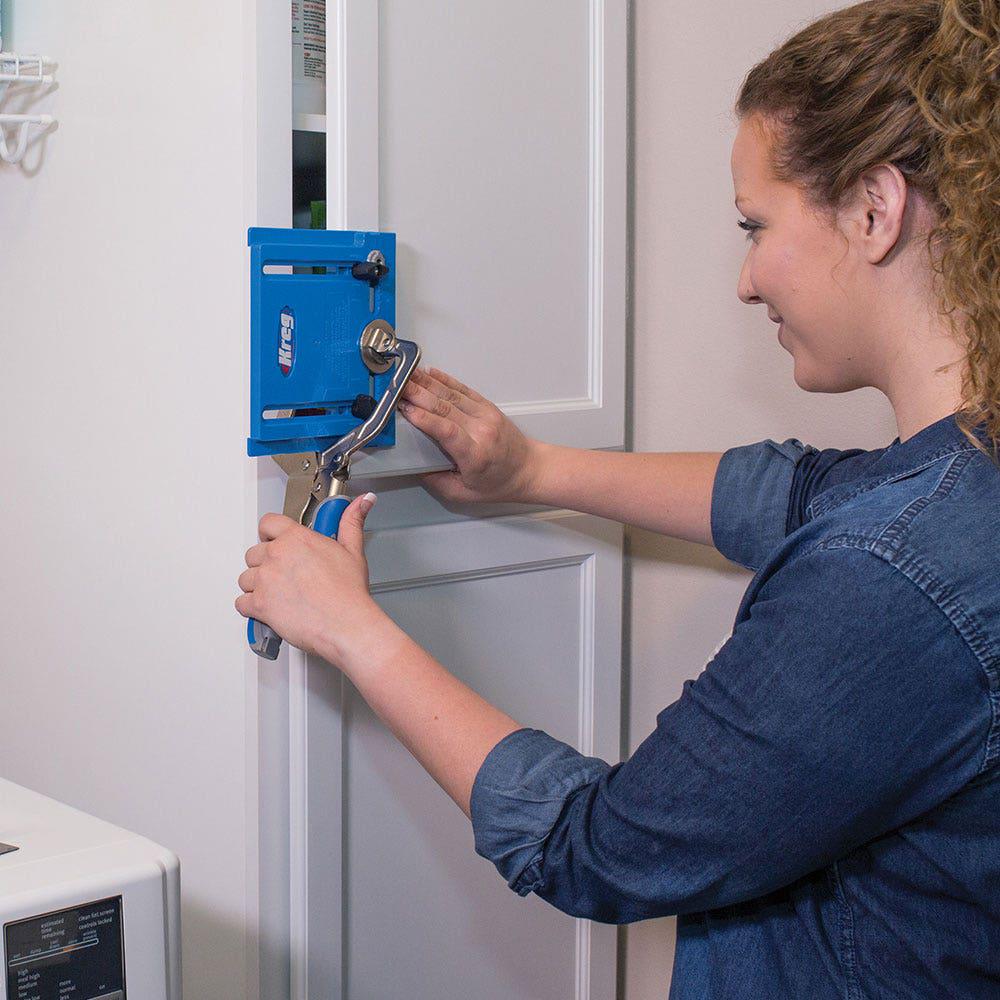

• Ensures accuracy and consistency for installing knobs and pulls
• Moveable edge guide with built-in measuring scales (imperial and metric)
• Hardened-steel drill guides that lock in place for common hole spacing

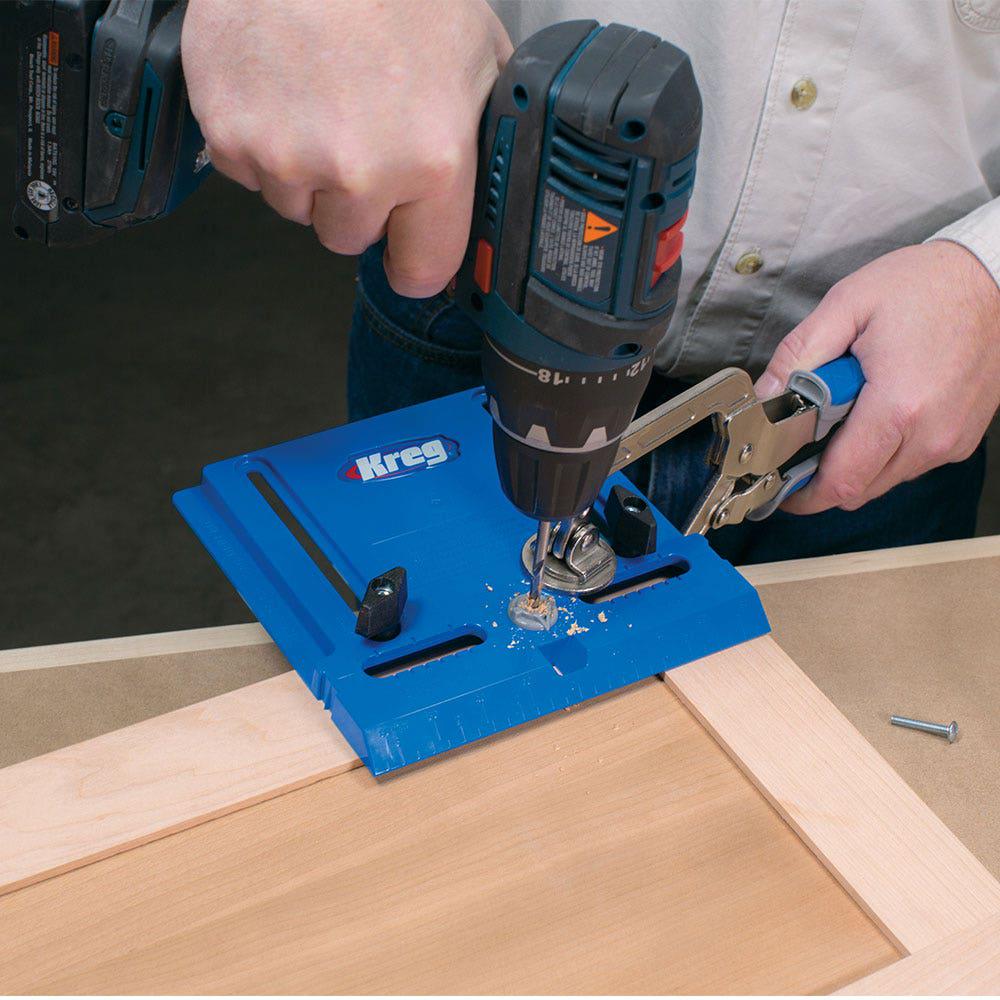

• Simplifies drilling of straight, accurately positioned holes
• Compatible with nearly all styles of knobs and pulls
• Includes jig base, edge guide, two drill guides with knurled nuts, non-slip pads, T-knobs and bolts, and owner's manual

Specifications

• Construction: Polycarbonate/ABS
• Drill Guide: Two 3/16'' moveable guides with locking nuts
• Drill Guide Material: Hardened steel
• Drill Guide Spacing: 0'', 2 1/2'', 3'', 3 1/2'', 4'', 4 1/2'', 5'', 64mm, 96mm, 128mm
• Edge Guide to Hole-Center Spacing: 1'' to 5'' (25mm-127mm)
• Measuring Scales: Imperial and Metric
• Brand: Kreg
• Part No: KR-KHI-PULL
• Barcode: 647096807351
