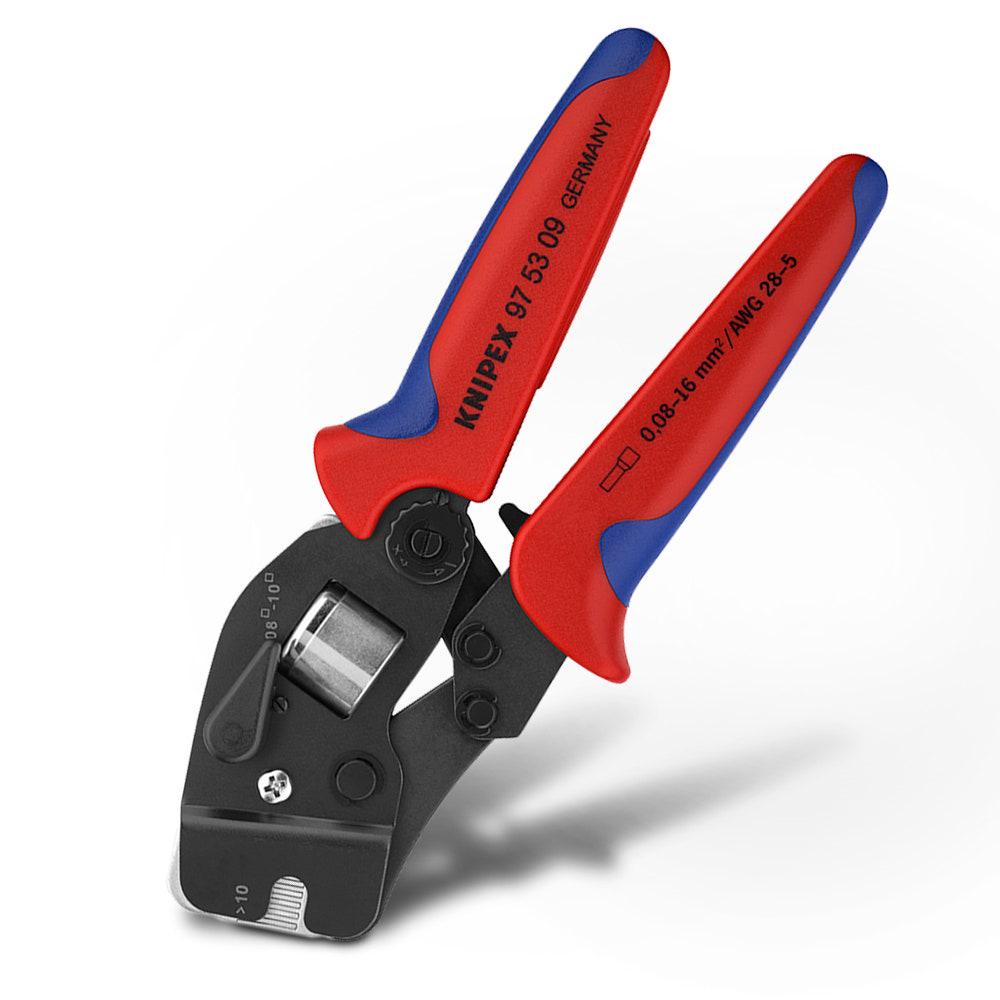

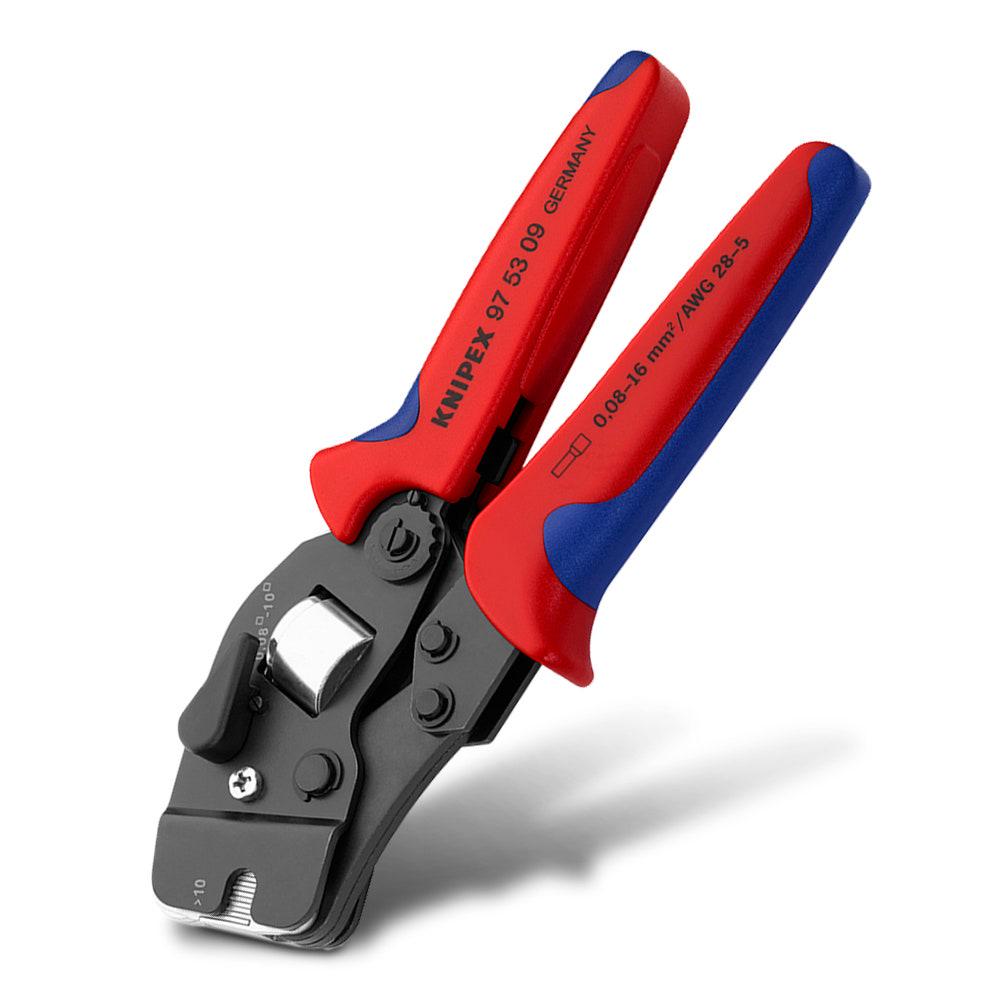

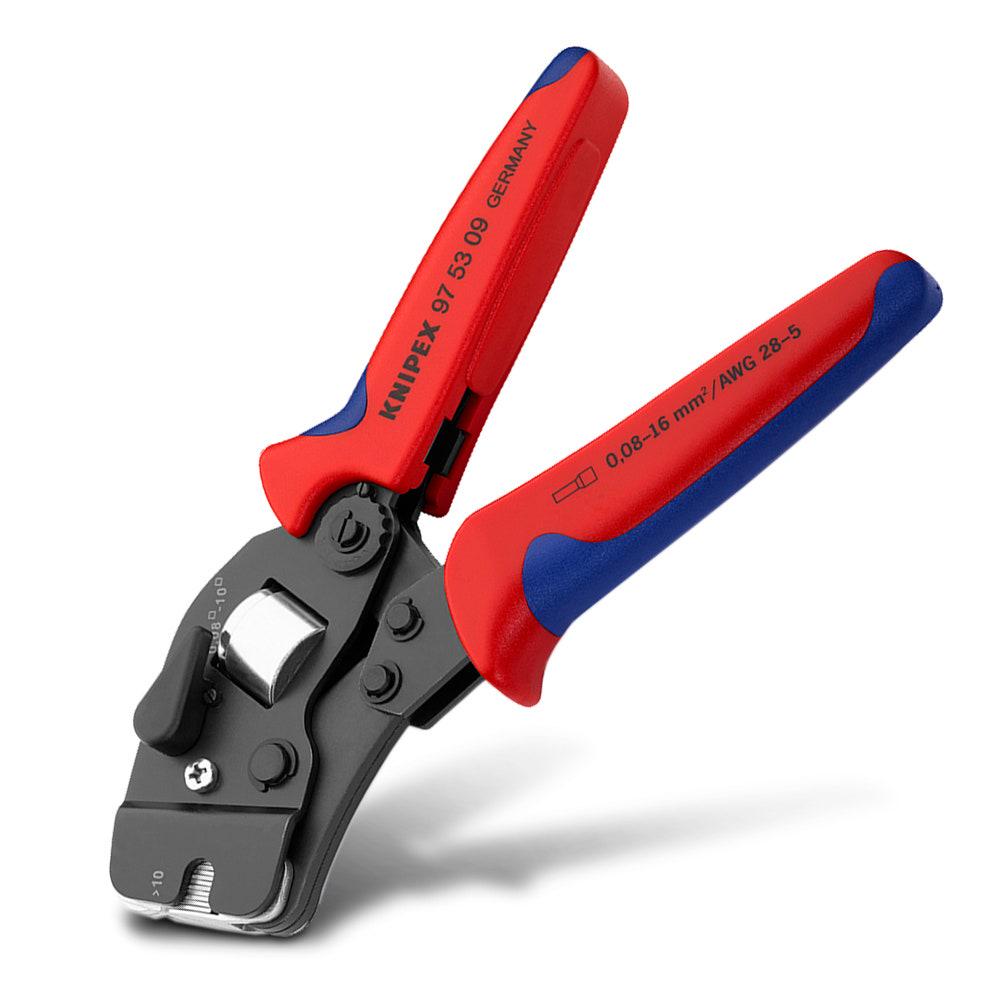

KNIPEX 190mm Self-adjusting Crimping Pliers 975309SB

Features

• Self-adjusting crimping pliers for wire ferrules (DIN 46228 parts 1 + 4)
• No incorrect crimps due to automatic adaptation to wire ferrule size
• Frontal insertion of wire ferrules for ease of use
• High crimping quality through an unlockable ratchet mechanism
• Factory calibrated for precise tool settings
• Toggle lever for optimal force transmission and reduced fatigue
• Lightweight and ergonomic design for comfortable operation
• Compression range: 0.08 - 10.0 and 16.0 mm²
• Selector lever for crimping area adjustment (0.08 - 10 mm² or 16 mm²)
• Compatible with twin wire ferrules up to 2 x 10 mm² (smaller than 6.6 mm)
• Self-service card/blister packaging
• Application: Wire ferrules
• Capacity: 0.08 - 10 / 16 mm²
• Number of crimping positions: 1
• AWG compatibility: 28 - 6

Specifications

• Part No: 975309SB
• Made In: Germany
• Barcode: 4003773044758
• Brand: Knipex
• Product Length: 271 mm
• Product Width: 115 mm
• Product Height: 26 mm
