KLEIN LAN Scout Jr. 2 Cable Tester A-VDV526-200

- Cable tester for data (RJ45) terminated cables and patch cords
- Large backlit LCD for low lit areas displays pin to pin wiremap results

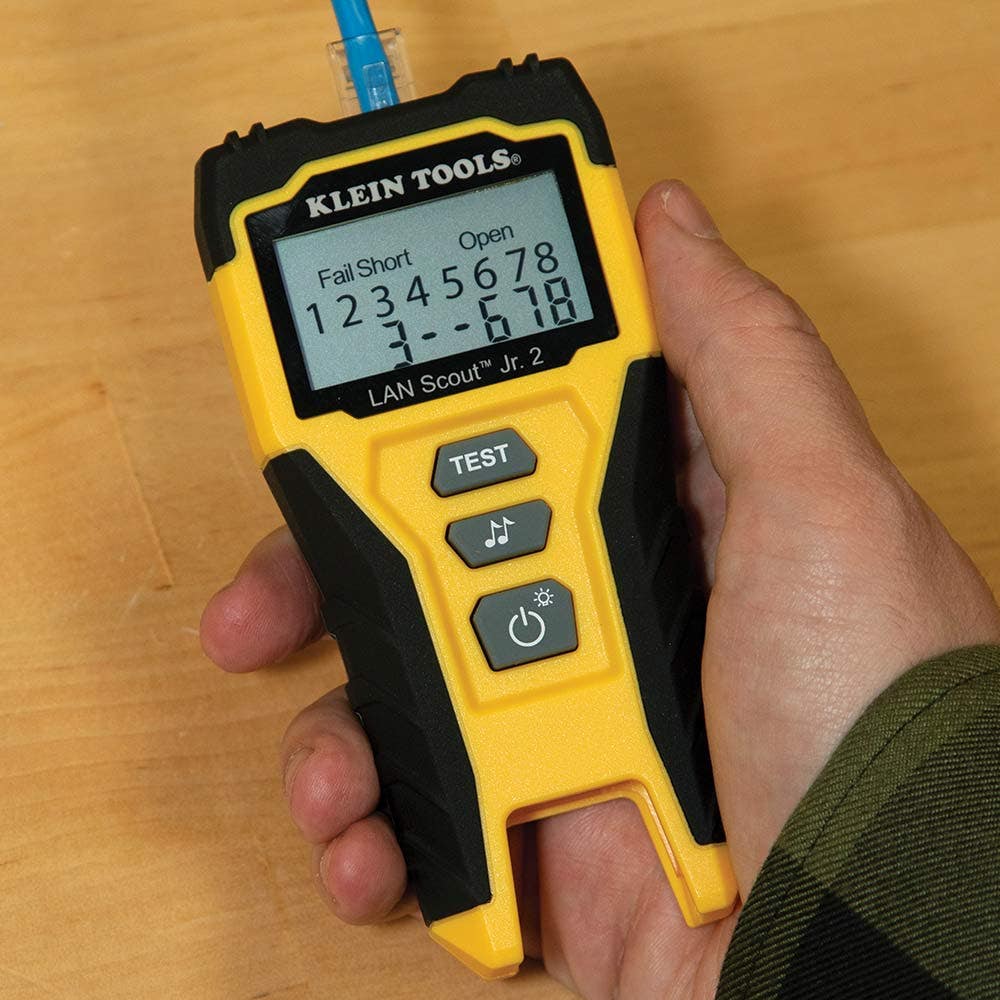

- Test for Open, Short, Miswire or Split-Pair faults, Cross-over and Shield

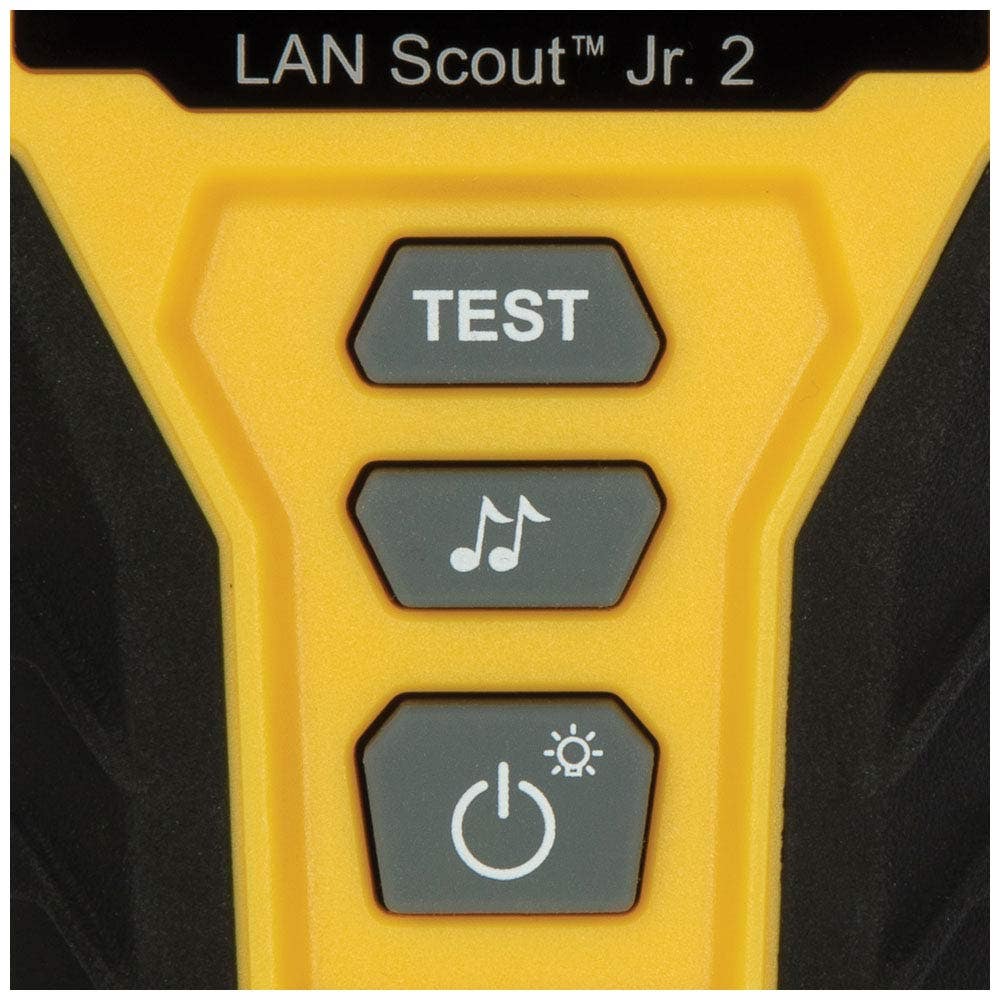

- Intuitive user interface features three buttons with simple, easy-to-identify test responses

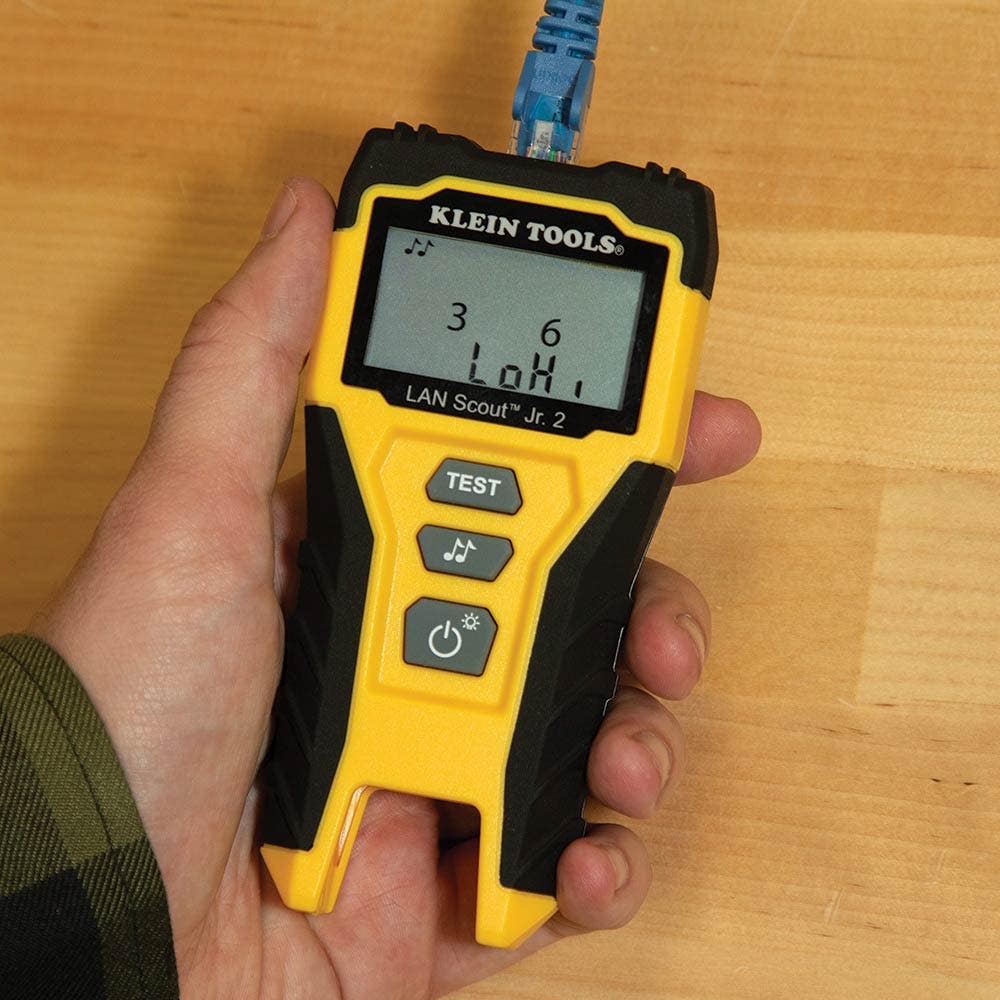

- Tone on single wire, wire pair or all 8 conductor wires
- Multiple style tone generator (solid / warble); requires probe Cat. No. VDV500-123 (sold separately)
- Auto Power-Off feature; 10-minutes in test mode, 60-minutes in tone mode
- Soft, slip-resistant, rugged overmold for easy gripping and durability
- Replaceable 2 x AAA batteries (included)
- Replaceable self-storing remote (included)
- Replacement remote available; sold separately (Cat. No. VDV999-200)

Specifications

- Type: DATA, Voice, LAN
- Application: Cable Testing
- Special Features: Backlit LCD
- Cable Type: Shielded or Unshielded; Cat7, Cat6/6A, Cat5E, Cat3
- Overall Length: 5'' (13 cm)
- Overall Height: 1'' (2.5 cm)
- Overall Width: 2.5'' (6.4 cm)
- Material: Plastic and Stamped Metal
- Test-n-Map ID Remotes: 1
- Location ID: No
- Batteries: 2 × AAA Alkaline
- Battery Life: Active: 80 hr; Standby: 3 yr.
- Drop Protection: 2' (0.6 m)
- Supported Remotes: (1) Self-Storing
- Connection & Adapter Types: RJ45
- Display: LCD
- Multiple Style Tone Generator: Yes
- Faults Detected: Pass, Miswire, Open-Fault, Short-Fault, Split Pair and Shield
- Test & Measure Types: Data, RJ45
- Included: Tester, Remote, 2 × AAA Alkaline Batteries

Warnings

- Always wear approved eye protection.
- Read all safety Information before using the product.
- Carefully read all instructions.
- Designed for use on unpowered/dark cable systems.
- Do NOT connect to live AC power.
- For indoor use only.
