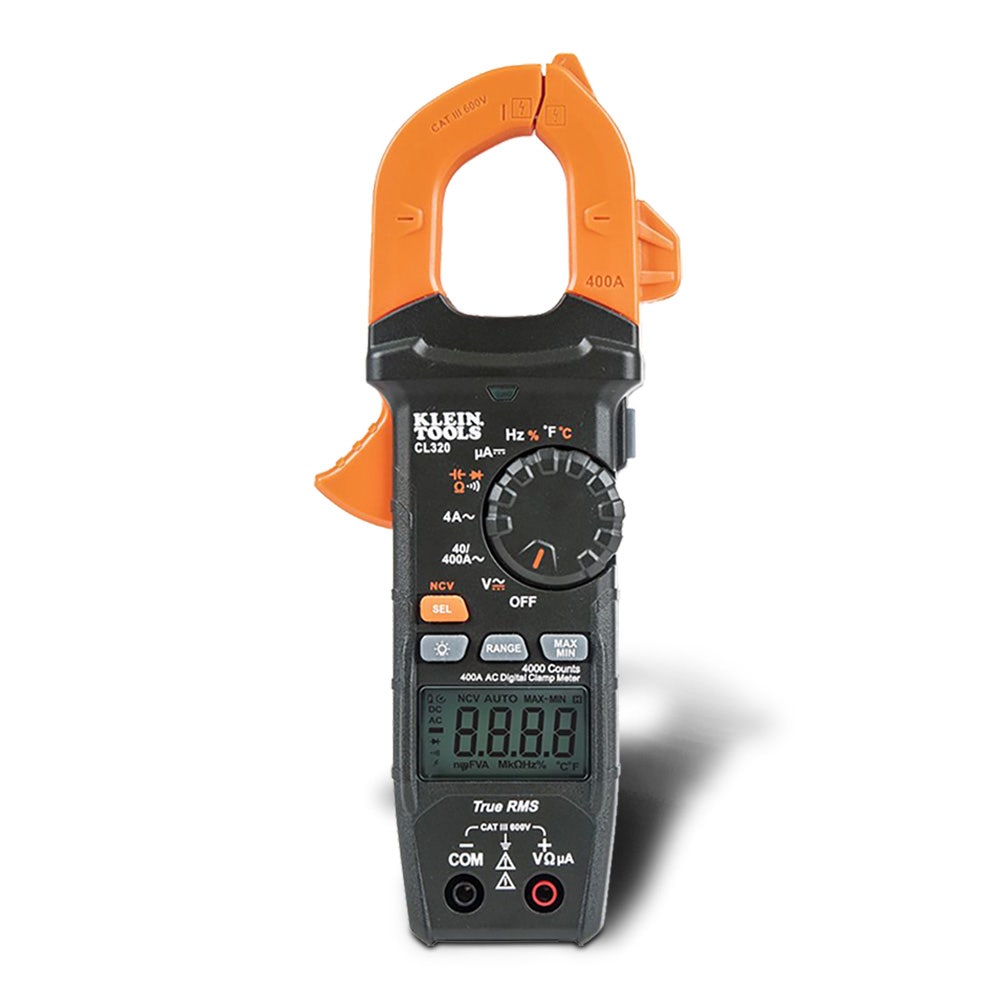

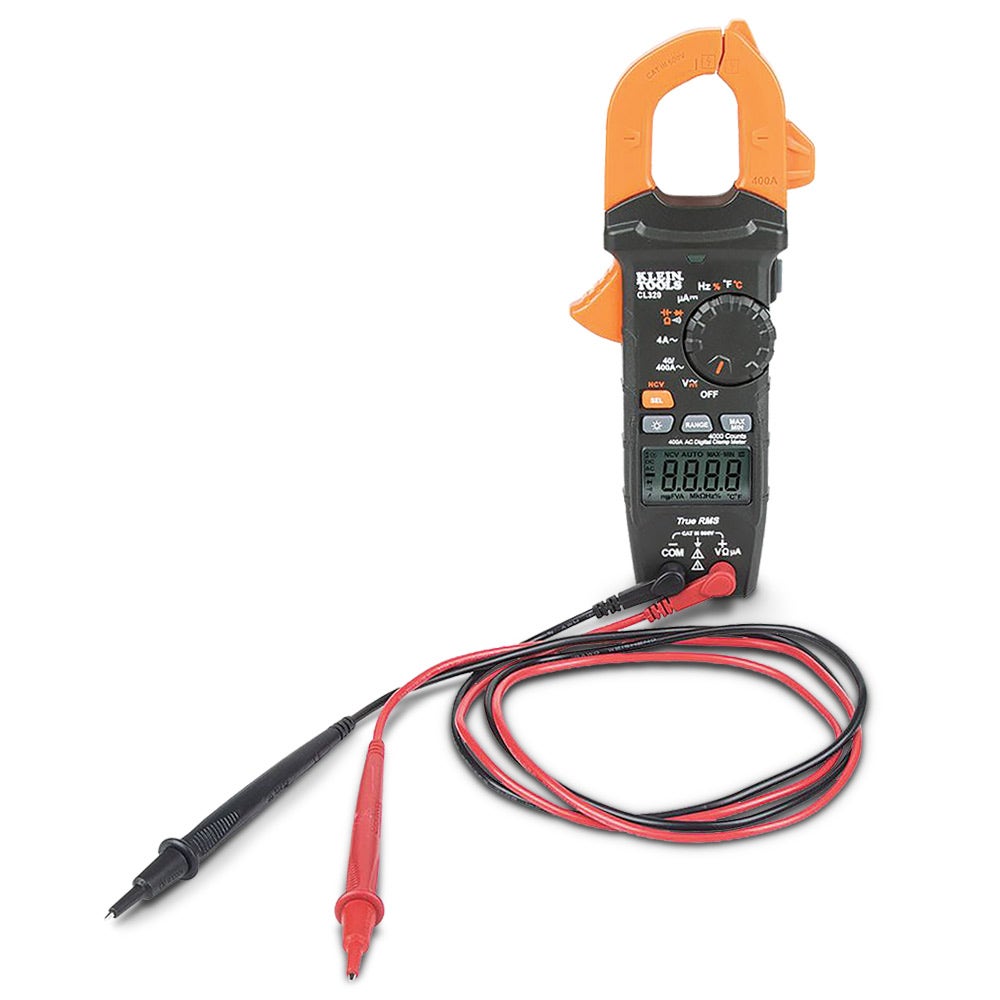

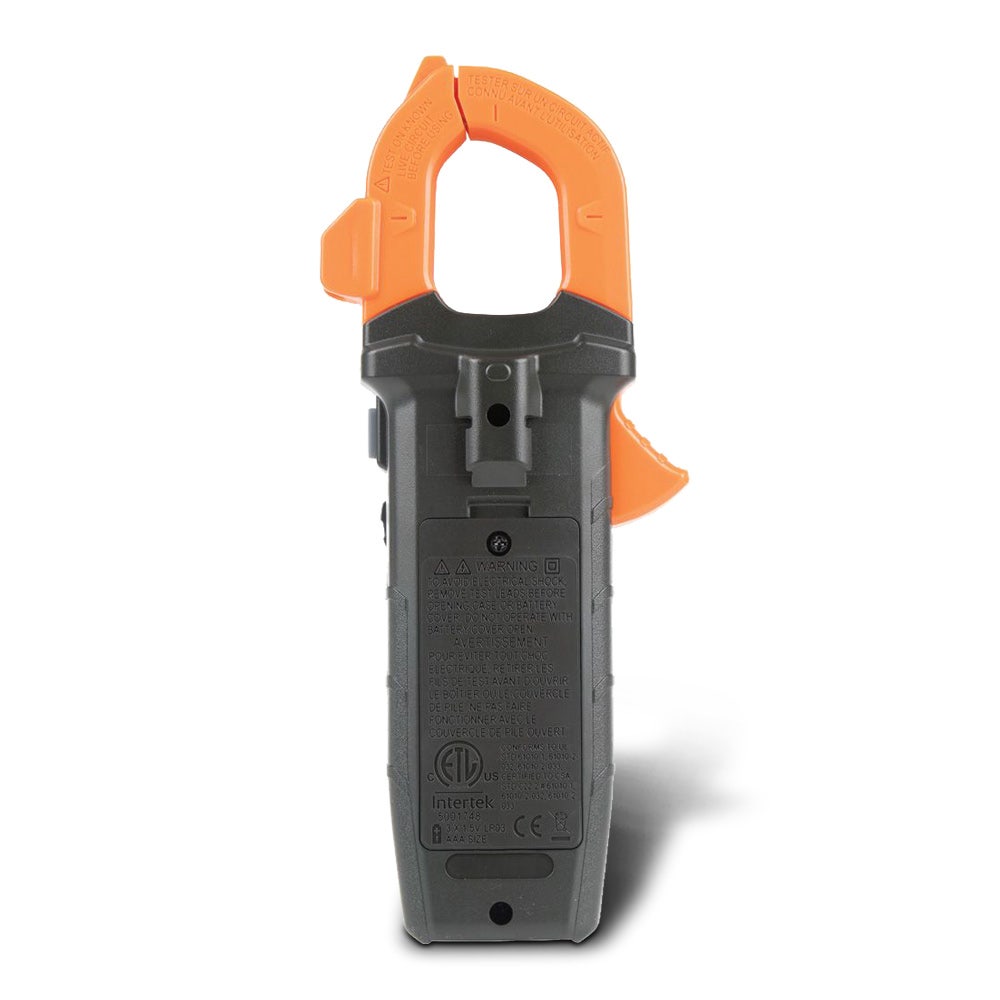

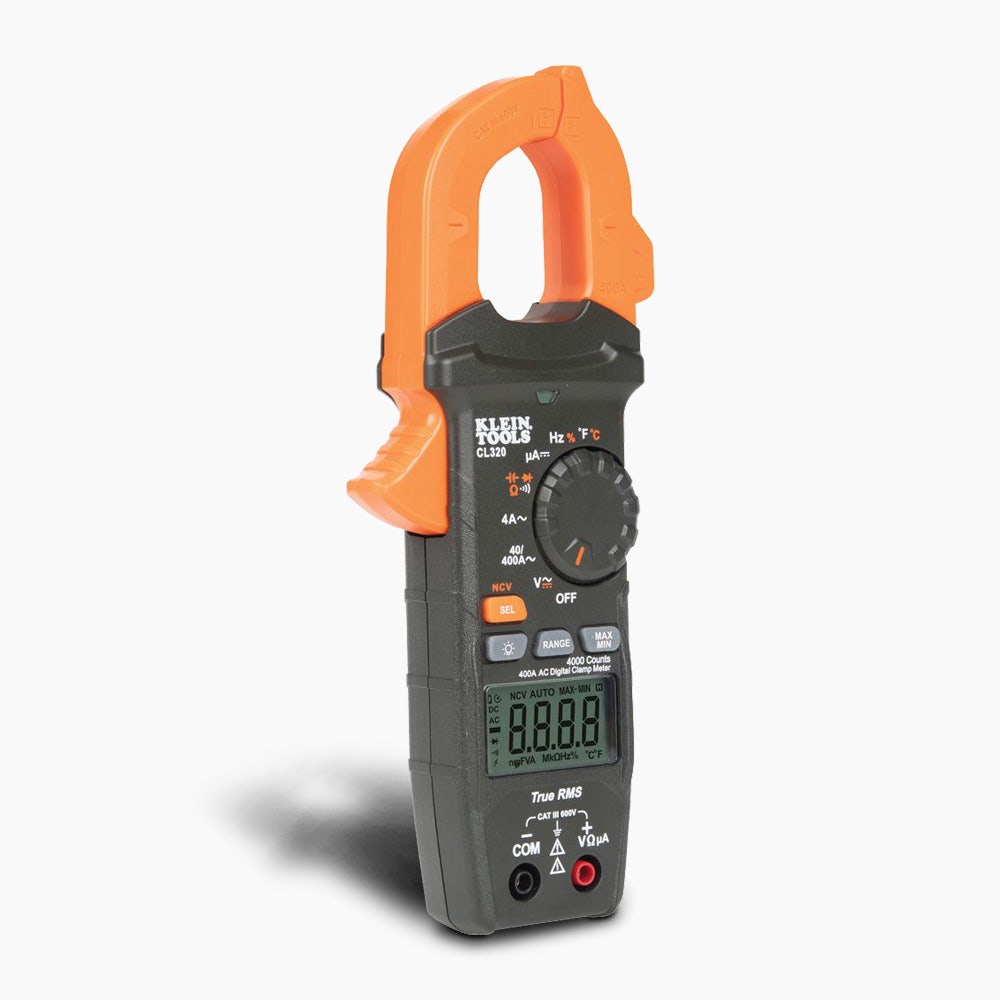

KLEIN HVAC Digital Clamp Meter AC Auto-Ranging 400 Amp A-CL320

Features

• Automatically ranging TRMS digital clamp meter

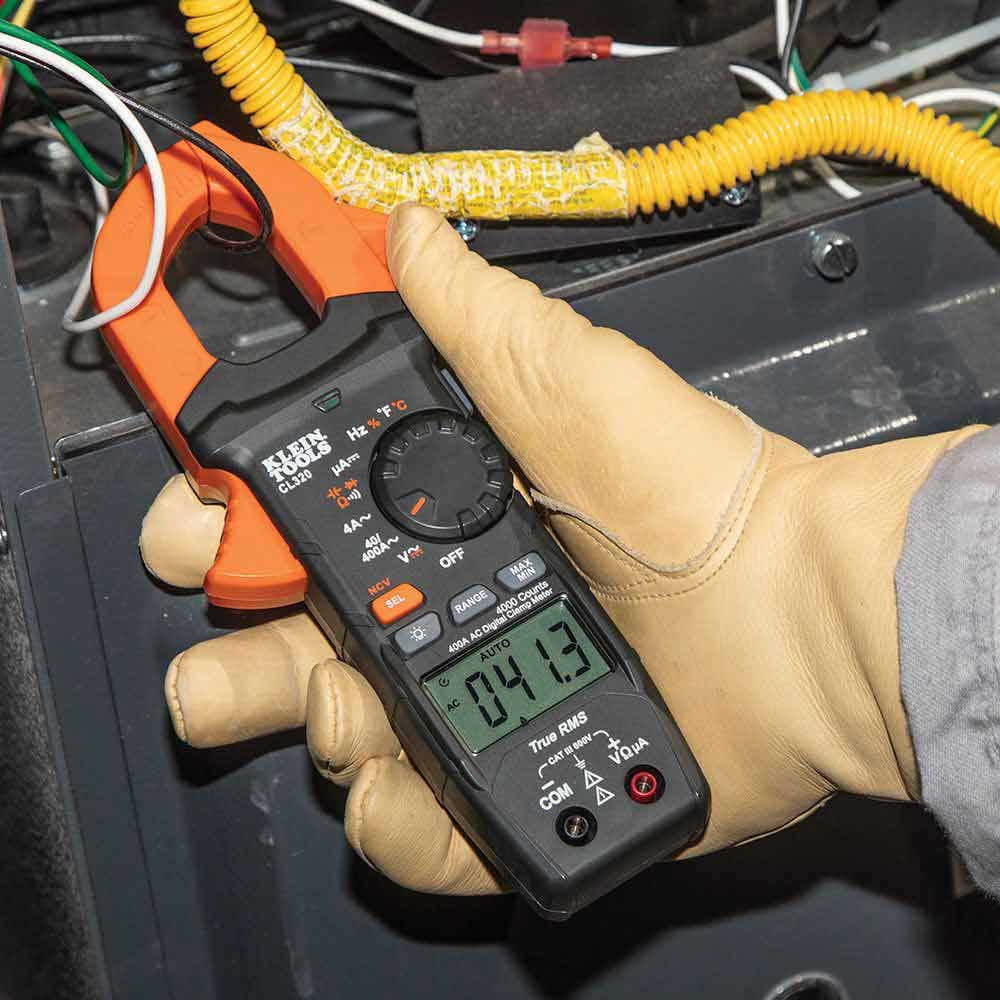

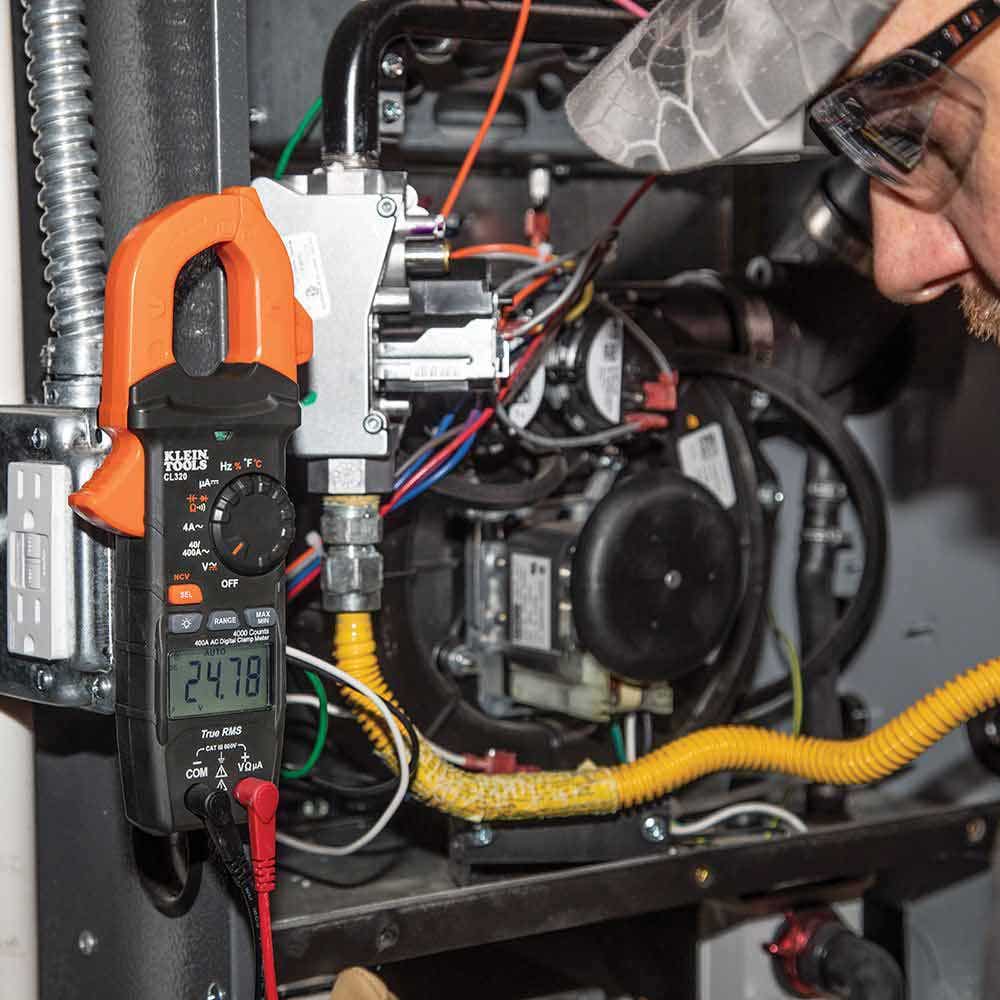

• Measures AC current and NCVT via clamp

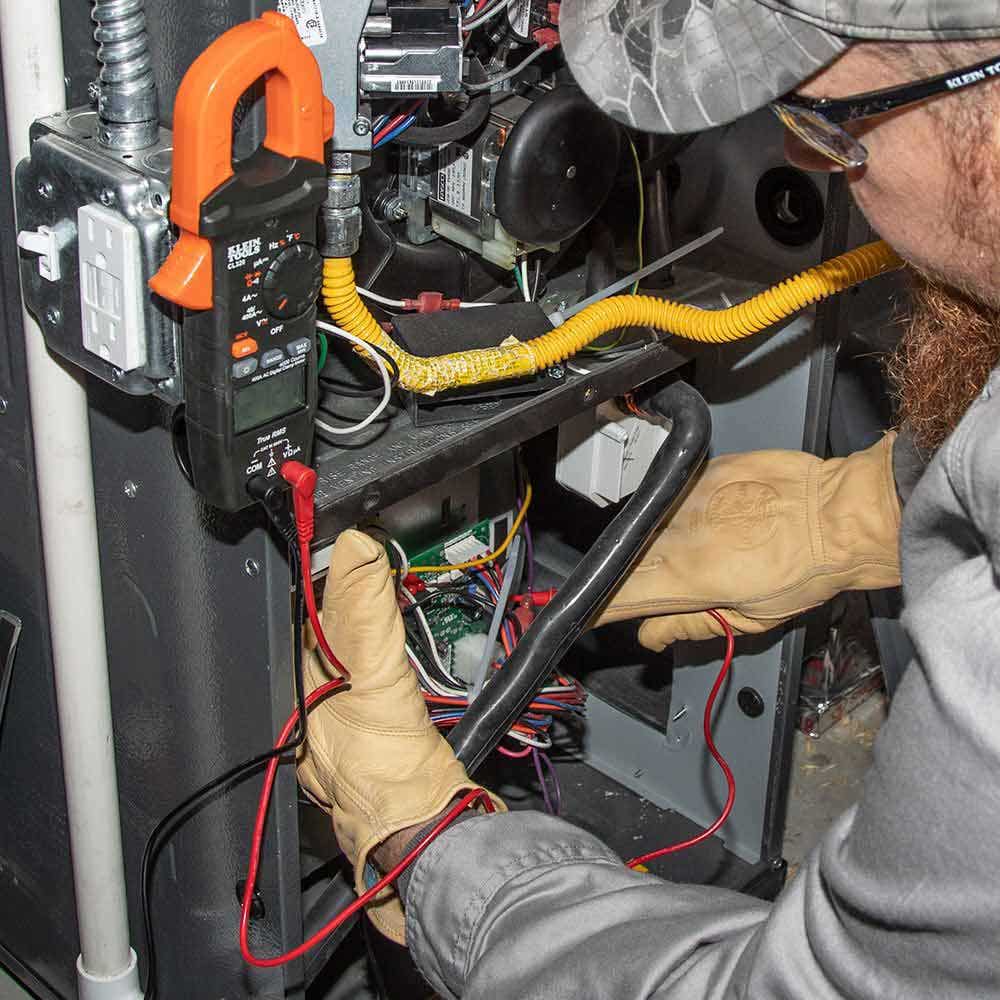

• Tests AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and diodes via test leads
• Non-contact voltage tester integrated into the clamp jaw
• Temperature measurement with K-Type thermocouple probe
• Backlit LCD for low-light visibility
• Data Hold, Auto-Range, and Max/Min value features
• Auto Power-Off after 10 minutes for battery conservation

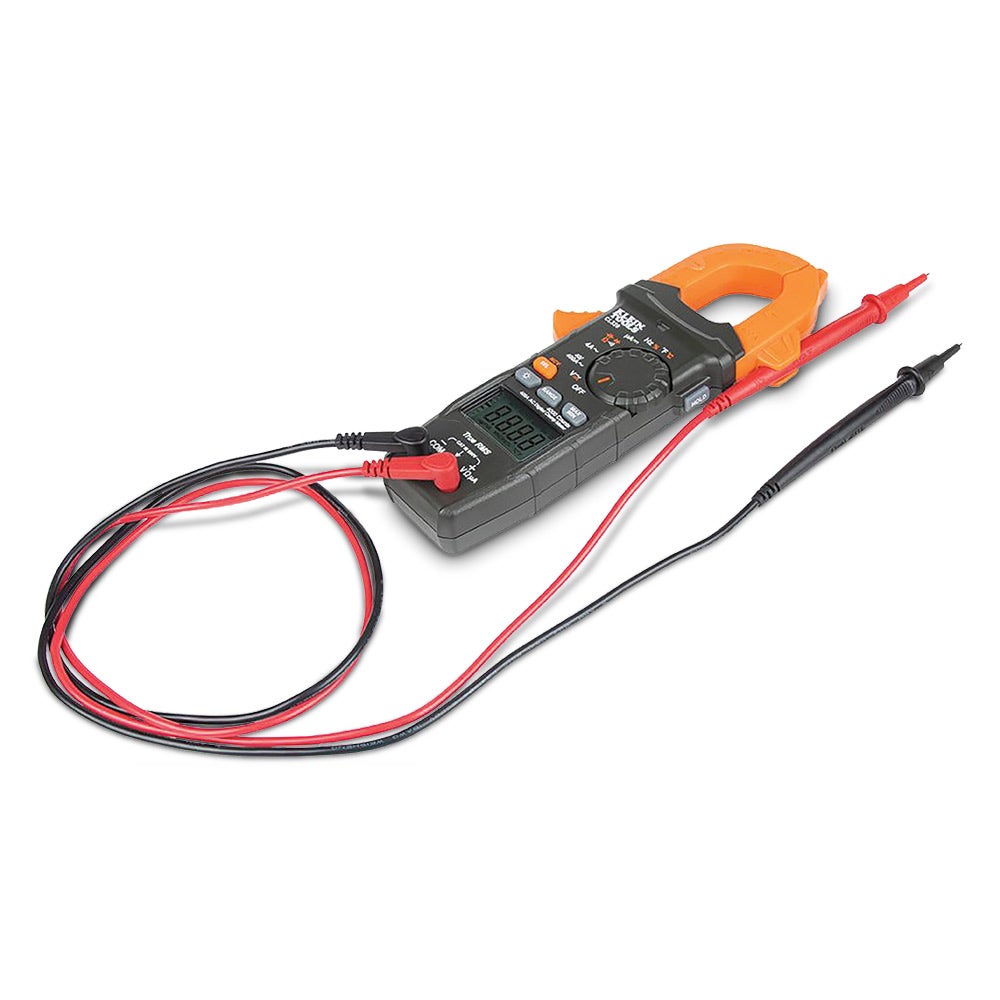

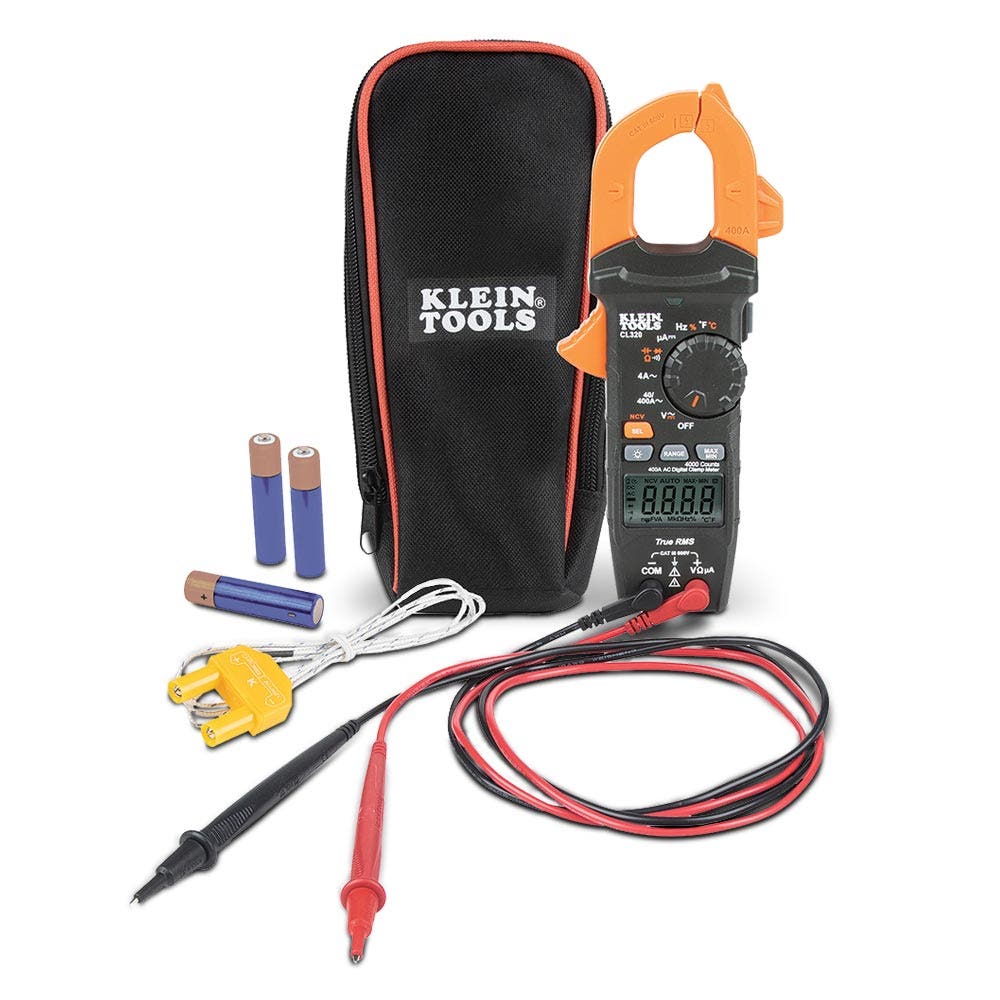

• Includes carrying case, test leads, thermocouple, and 3 x AAA batteries
• Low-battery indicator with accessible battery compartment
• Drop protection from heights up to 6.6' (2 m)
• CAT III 600 V, Class 2, Double Insulation safety rating
• Meets requirements for basic and controlled electromagnetic environments

Specifications

• Type: HVAC TRMS Clamp
• Jaw Size: 1.6" (4.1 cm)
• Display: 4000 Count Backlit LCD
• Voltage: 600V AC/DC
• Frequency Range: 10 Hz - 1 MHz
• Current: 400 A AC
• Capacitance: 4000 µF
• DC Voltage: 600V
• DC Microamp: 200 A
• Temperature Range: -40° to 1832°F (-40° to 1000°C)
• Material: ABS/Electronics
• Standard: CAT III 600V, Class 2, Double Insulation Safety Rating, CE Certified
