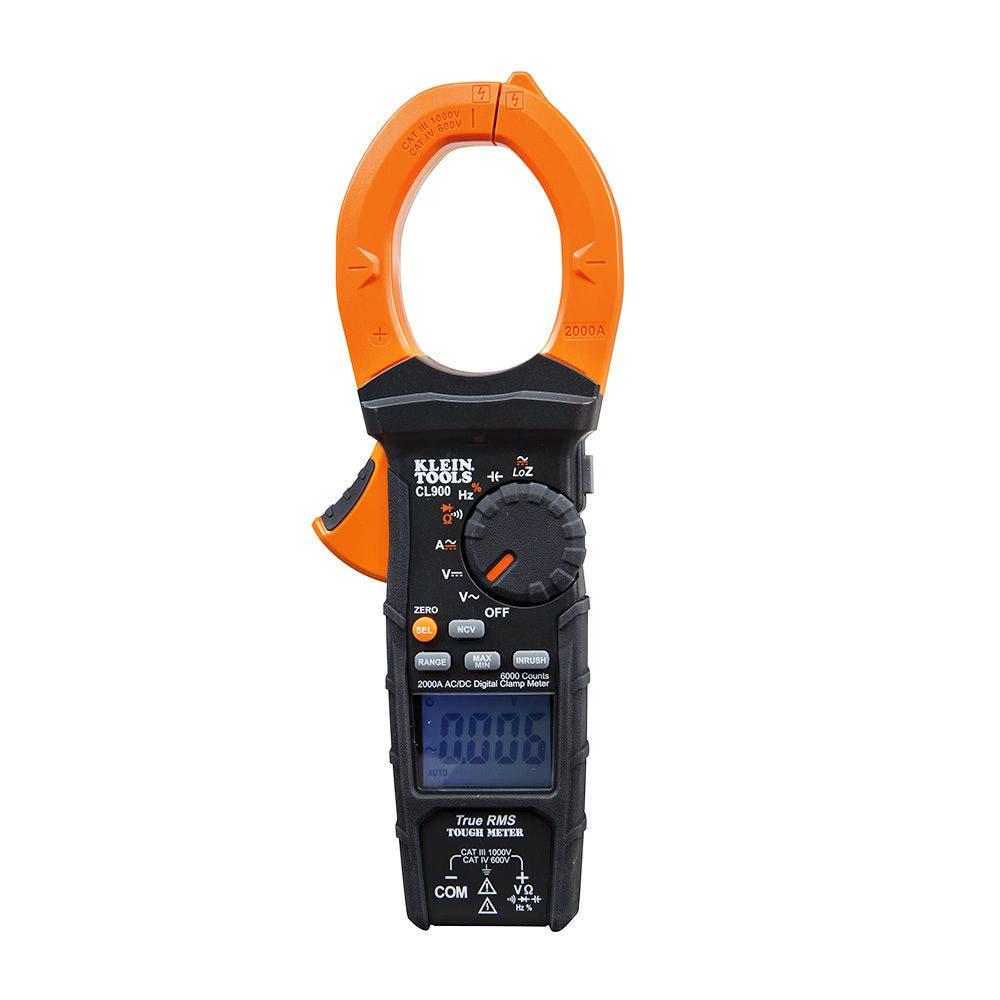

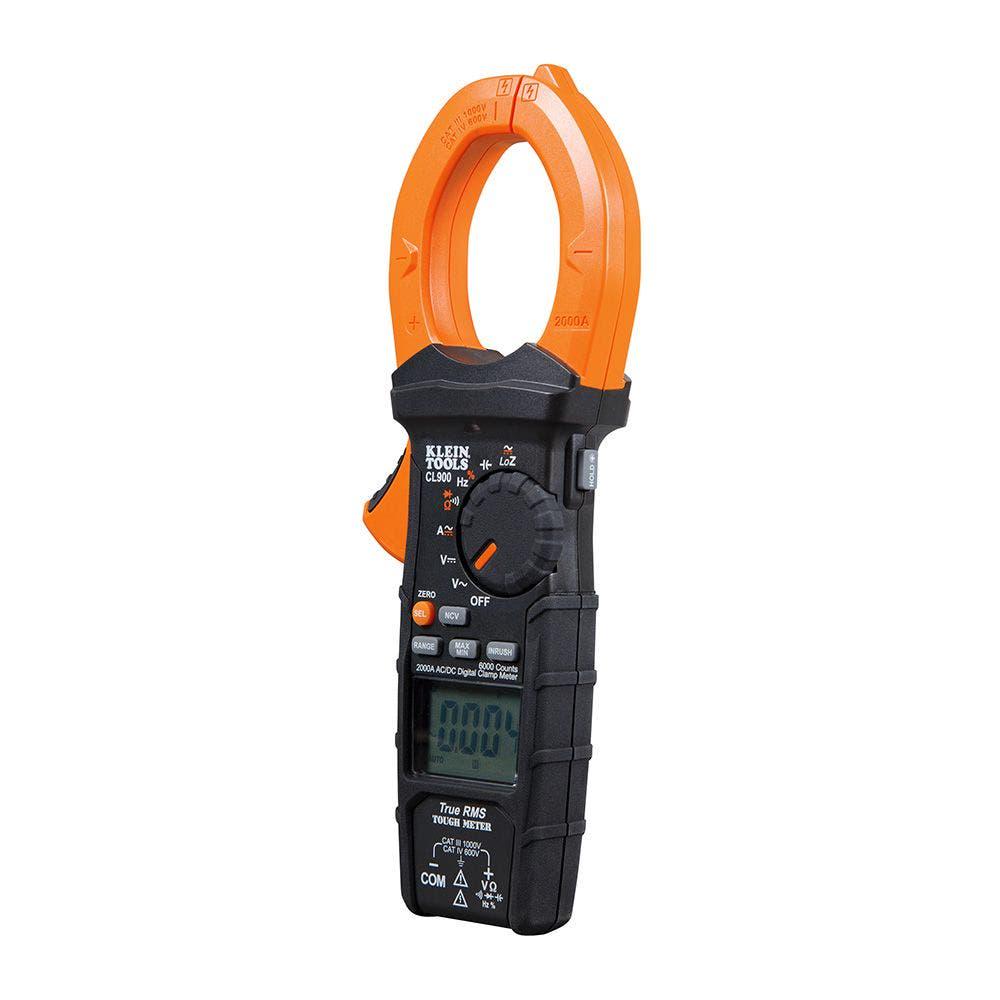

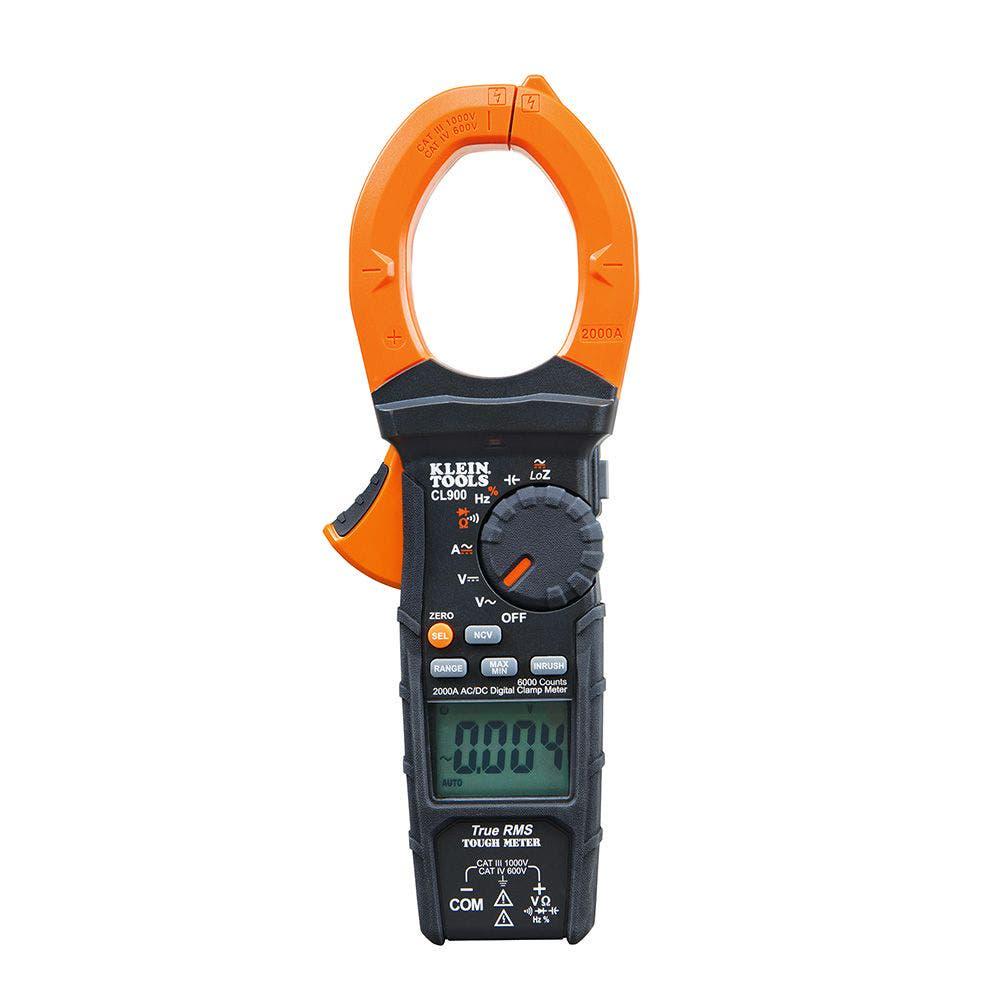

KLEIN 600V CAT4 2000AMP 1000V CAT3 AC DC Digital Clamp Meter ACL900

Features

• Auto-ranging true root mean square (TRMS) digital clamp meter
• Measures AC/DC current via clamp; AC/DC voltage, resistance, continuity, frequency, duty-cycle, capacitance, and diodes via test leads
• Dedicated mode for capturing Inrush Current
• Low Impedance (LoZ) mode to identify and eliminate ghost or stray voltages
• Digital Clamp Meter measures 2000A AC/DC, 1000V AC/DC, 60M Ohm
• Rugged Klein "TOUGH METER" design withstands 6.6-foot (2m) drops
• CAT IV 600V, CAT III 1000V, Class 2 safety rating with double insulation
• Backlit display for visibility in low light conditions
• Non-contact voltage tester integrated into the clamp
• Audible continuity, capacitance, diode test, frequency, duty cycle, min/max feature, data hold capability
• Powers off automatically after 30 minutes of inactivity
• Low battery indicator and accessible battery compartment

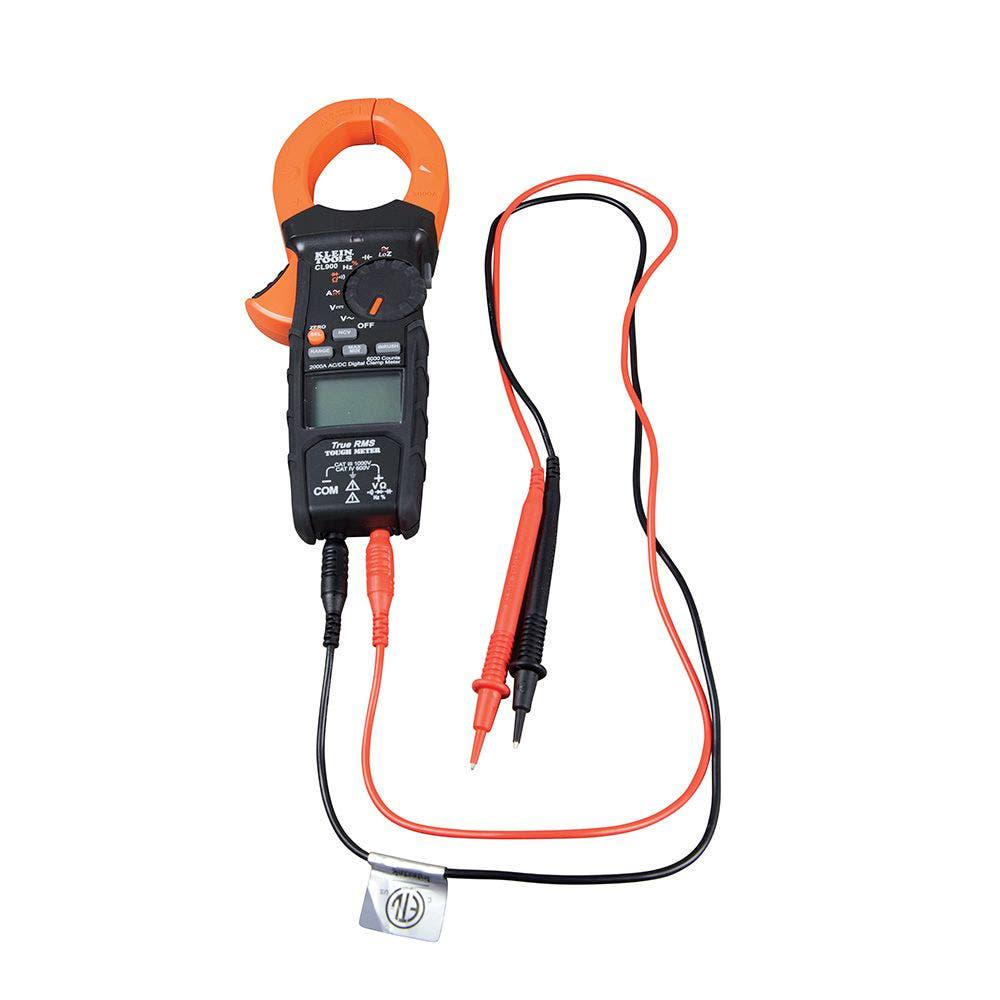

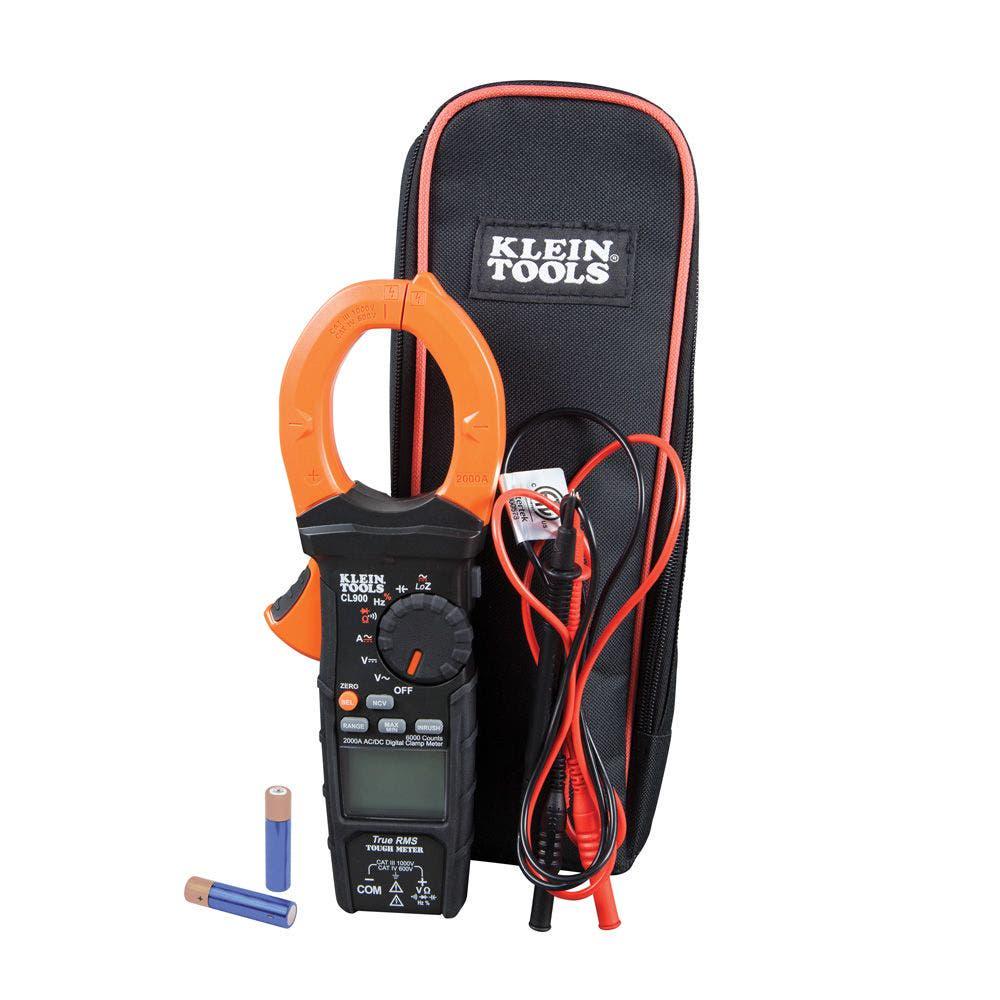

• Includes carrying case, instruction manual, straight input test leads, and 2 x AAA batteries
• Compatible with Magnetic Hanger Cat. No. 69417 (sold separately)

Specifications

• Type: Clamp Meter
• Application: Measures Current up to 2000A AC/DC
• Special Features: Low Impedance (LoZ) Mode, Dedicated Inrush Current Mode, Integrated Non-Contact Voltage Tester
• Material: Plastic/Electronics
• Batteries: 2 x AAA
• Auto-Power Off: Yes
• Jaw Size: 2'' (5 cm)
• Display: 6000 Count LCD
• Functions: Audible Continuity, Capacitance, Diode Test, Frequency & Duty Cycle, Min/Max feature, Data Hold capability, Inrush Current, Low Impedance
• Voltage: 1000V AC/DC
• Frequency: 500kHz
• Capacitance: 6000µF
• Ingress Protection: IP40
• Standard: CAT IV 600V, CAT III 1000V
