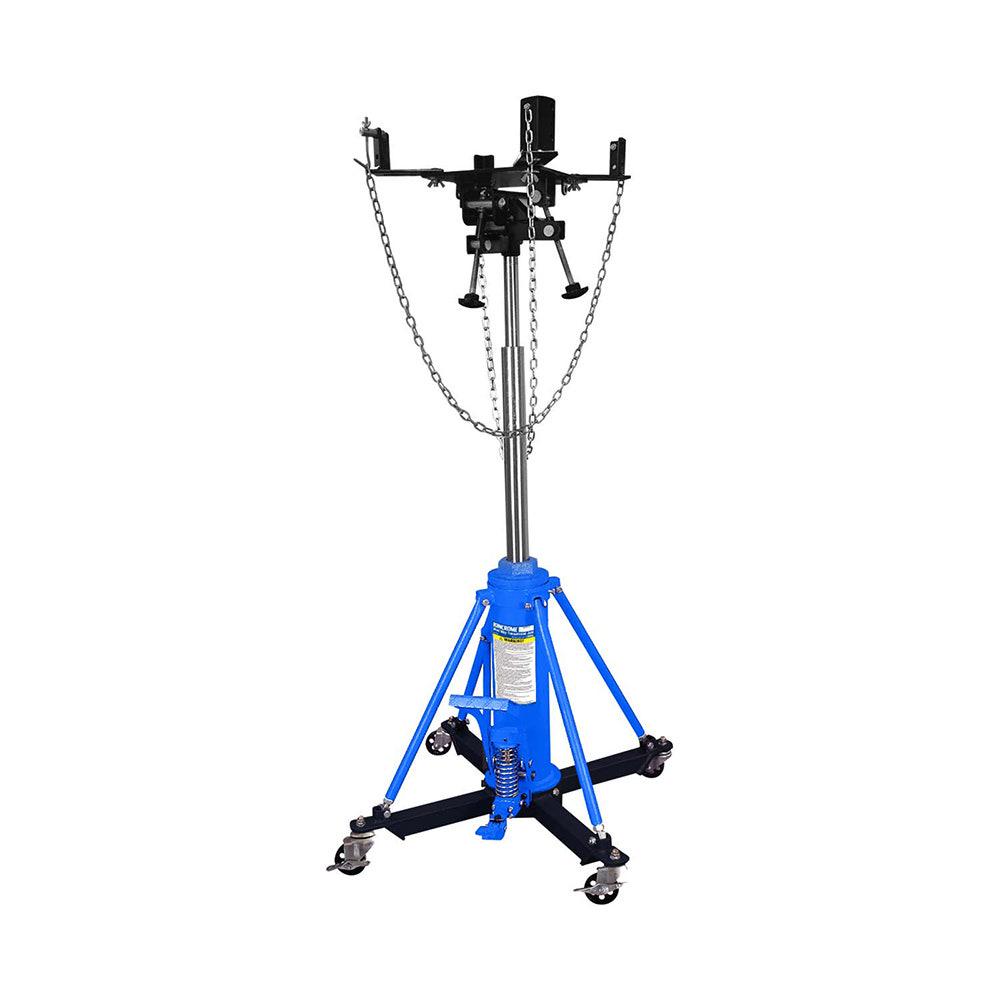

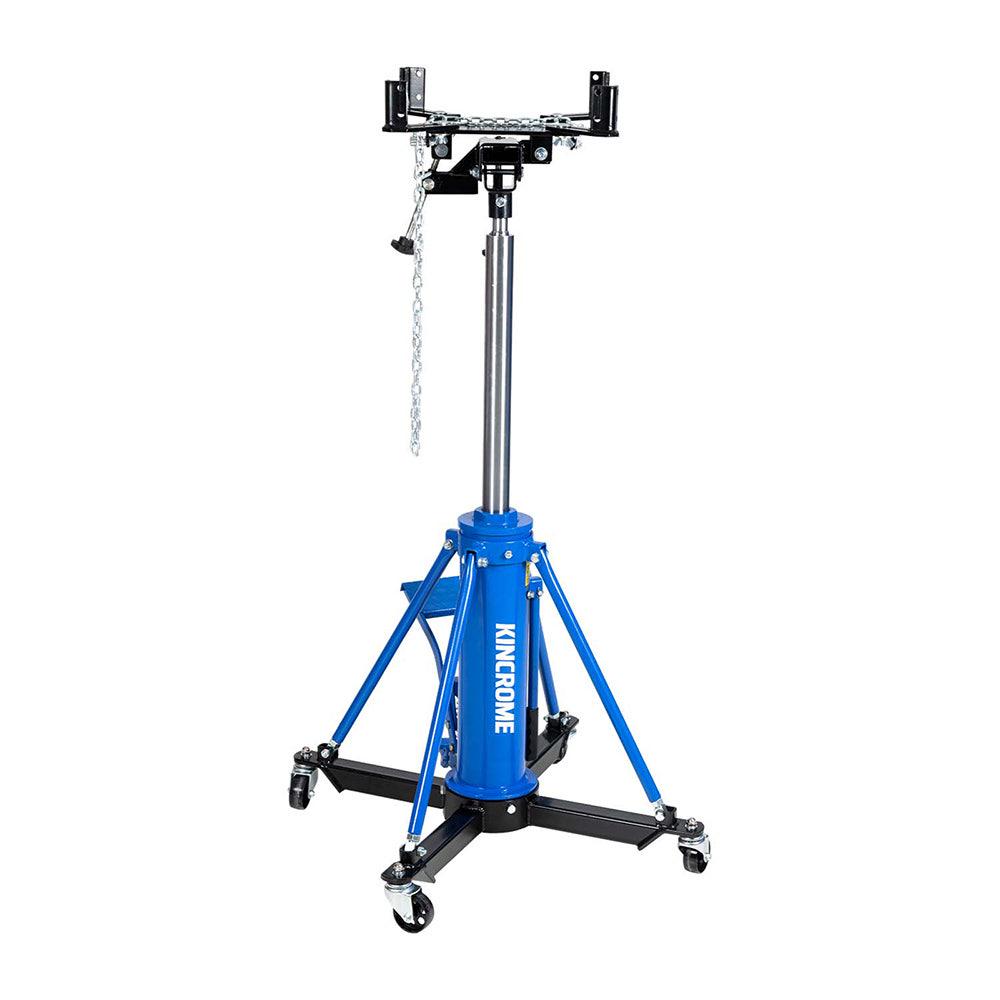

KINCROME 1,000KG Dual Stage Transmission Jack K12134

Features

• 1,000kg working load limit
• Dual stage transmission jack
• Industrial workshop quality

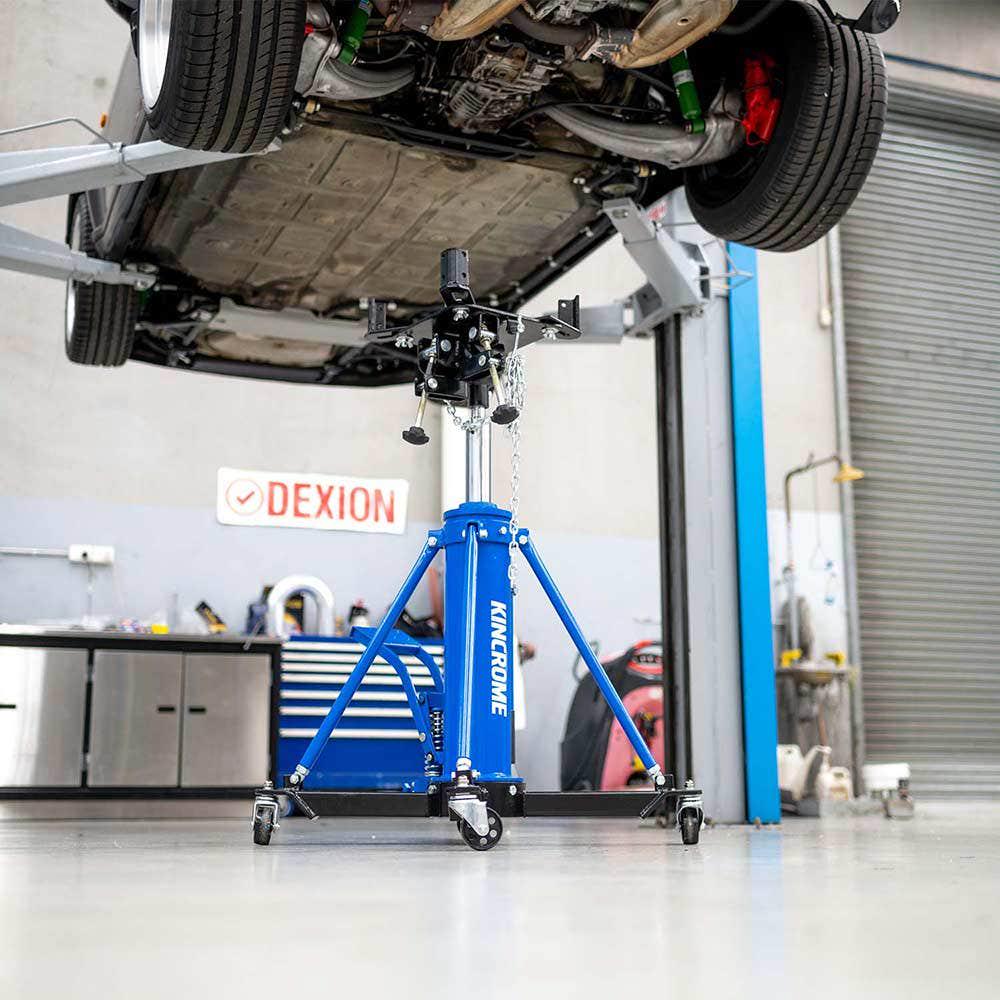

• Designed for safe transmission removals and installations
• Compatible with FWD, RWD, and 4WD light cars or trucks
• Universal mounting head with 7-12° tilt adjustment
• Adjustable transmission saddle and safety chains
• Hydraulic foot pedal system for smooth operation
• Steering handle for easy maneuverability
• Wide 4-leg base for maximum stability
• Heavy-duty cast iron swivel castors for mobility
• High-quality seals and materials for professional use

Specifications

• Rated Capacity: 1,000kg
• Height Lowered: 920mm
• Height Raised: 1,905mm
• Lift Height: 985mm
• First Stage Ram Stroke: 505mm
• Second Stage Ram Stroke: 480mm
• Saddle Tilt: 7-12°
• Base Dimensions: 660 x 660mm
• Saddle Size: 280 x 280 x 165mm
