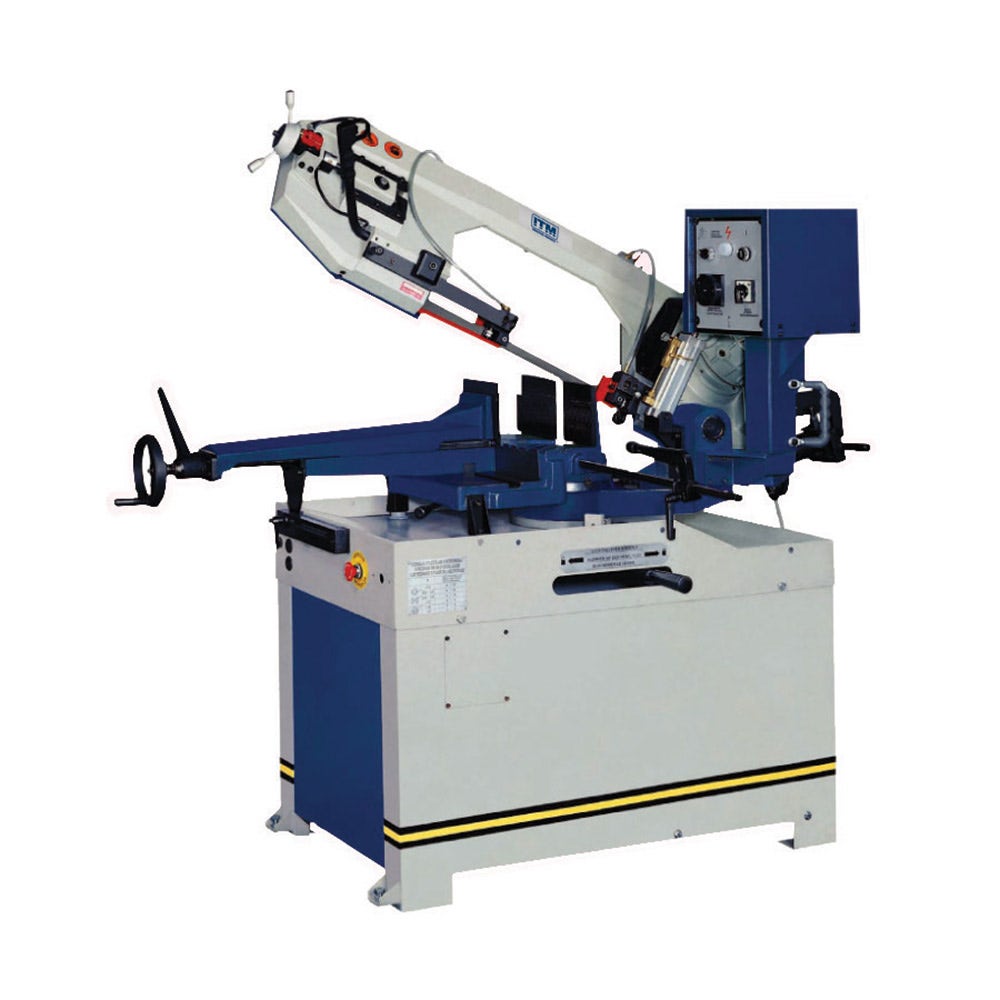

ITM 270mm Swivel Head Dual Mitre Bandsaw 3 Phase WE350DS
ITM 270mm Swivel Head Dual Mitre Bandsaw 3 Phase WE350DS
Regular price
$13,044.00 AUD
Regular price
$17,392.00 AUD
Sale price
$13,044.00 AUD
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Features
- 2 Way swivel head for 0° to 60° mitre cuts
- Dual mode operation available
- Trigger switch with manual downfeed for quick cuts
- Fully adjustable hydraulic down feed with automatic shut-off for larger material
- 2 speed motor operating at 34 / 68 mpm
- Heavy duty vice with dual direction
- Hydraulic blade tension gauge included
- Incorporated recirculating coolant system
- Brass chip brush to minimize blade breakage
- Adjustable material stop for repetitive cuts
- Includes stand and blade
Specifications
- Motor: 2.0HP Three Phase (415V)
- Blade Speed: 2 Speed 34 / 68 mpm
- Blade Size: 27mm x 0.9mm x 3160mm
- Bed Height: 890mm
- Weight: 410kg
- Cutting capacity: 90° - Round: 270mm / Box: 260 x 260mm / Rectangle: 350 x 220mm
- Cutting capacity: 45° Right - Round: 240mm / Box: 220 x 220mm / Rectangle: 240 x 160mm
- Cutting capacity: 60° Right - Round: 160mm / Box: 150 x 150mm
- Cutting capacity: 45° Left - Round: 210mm / Box: 180 x 180mm / Rectangle: 180 x 180mm
