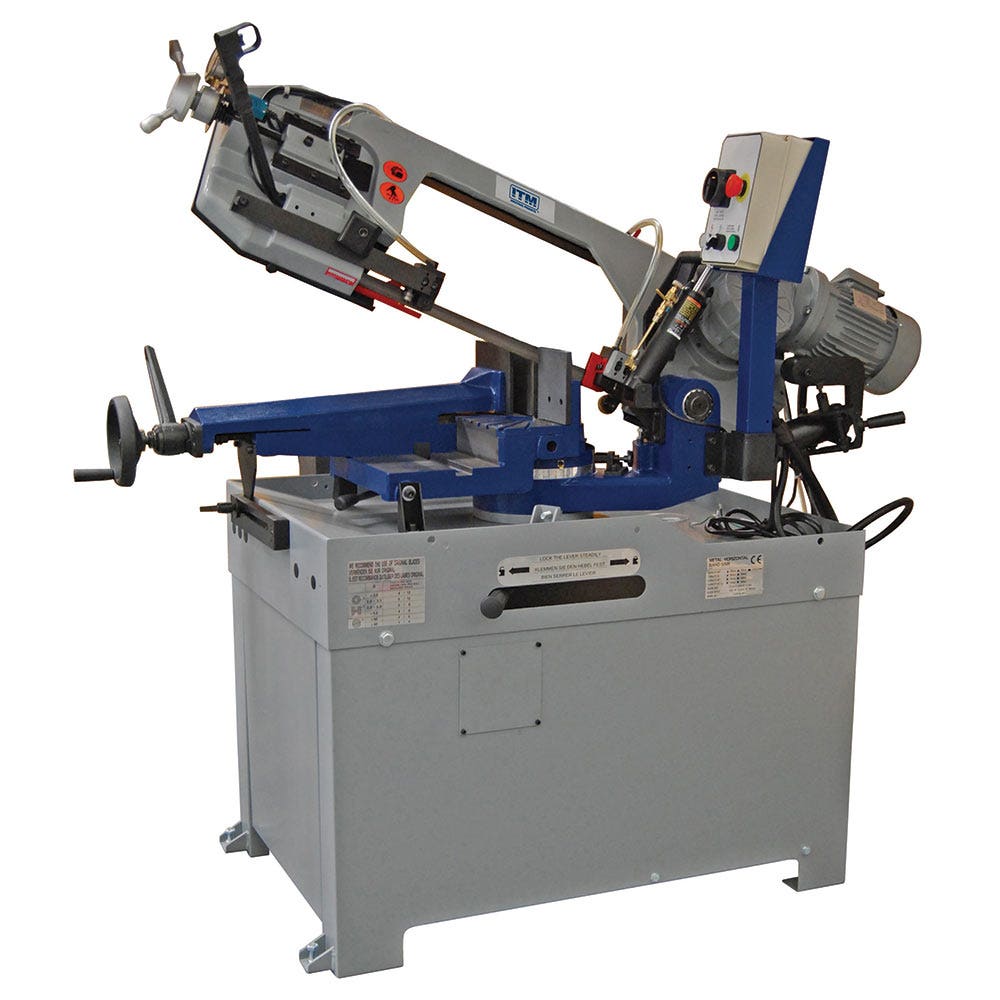

ITM 250mm Swivel Head Dual Mitre Bandsaw 3 Phase WP310DS-3

Features

• 2 Way swivel head for 0° to 60° mitre cuts
• Variable speed motor for diverse material cutting
• Dual mode operation
• Trigger switch with manual downfeed for quick cuts
• Control panel includes adjustable hydraulic down feed
• Automatic shut-off at end of cut for larger materials
• Dual direction heavy duty vice
• Hydraulic blade tension gauge
• Incorporated recirculating coolant system
• Brass chip brush to prevent blade breakage
• Adjustable material stop for repetitive production
• Includes stand and blade

Specifications

• Motor: 2.0HP Three Phase (415V)
• Blade Speed: 2 Speed 36 / 72mpm
• Blade Size: 27mm x 0.9mm x 2725mm
• Bed Height: 895mm
• Weight: 302kg
• Cutting Capacity - 90°: Round 250mm, Square 240 x 240mm, Rectangle 310 x 210mm
• Cutting Capacity - 45° Right: Round 200mm, Square 180 x 180mm, Rectangle 200 x 140mm
• Cutting Capacity - 60° Right: Round 120mm, Square 95 x 95mm, Rectangle 120 x 95mm
• Cutting Capacity - 45° Left: Round 150mm, Square 150 x 150mm, Rectangle 170 x 90mm
