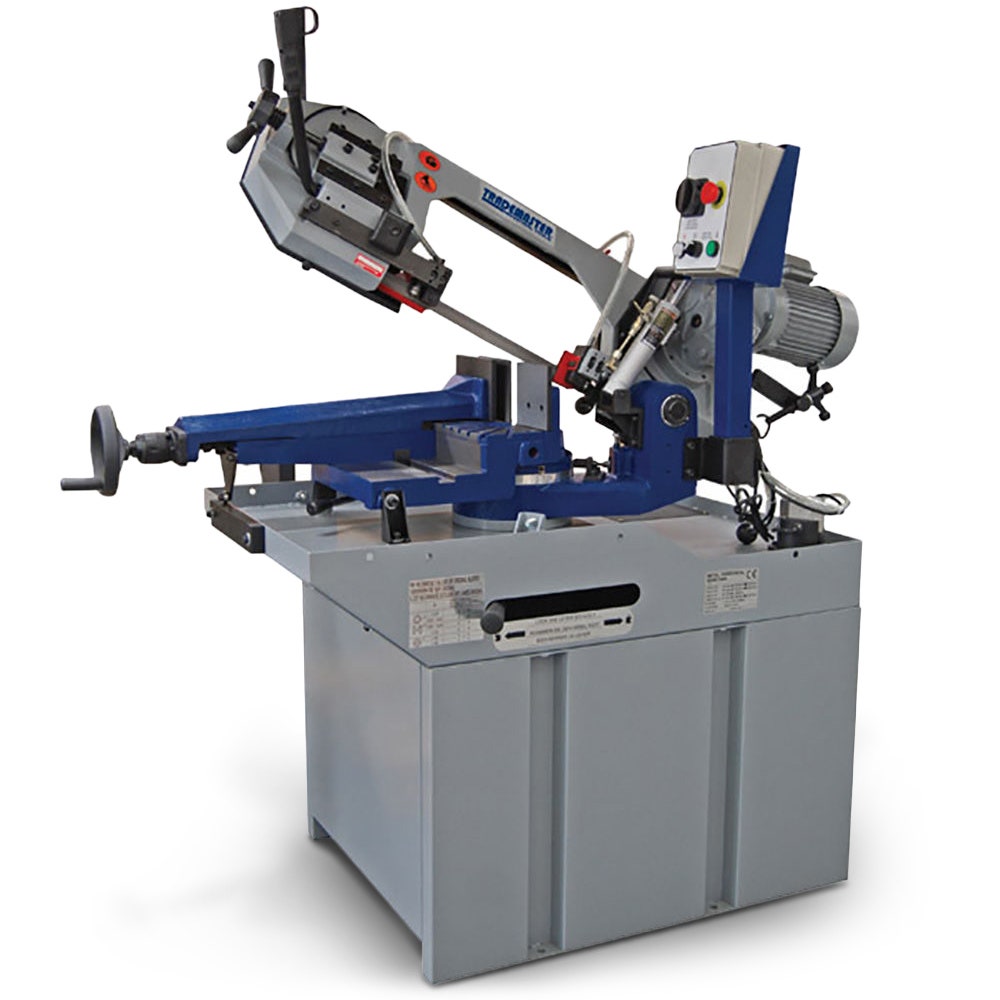

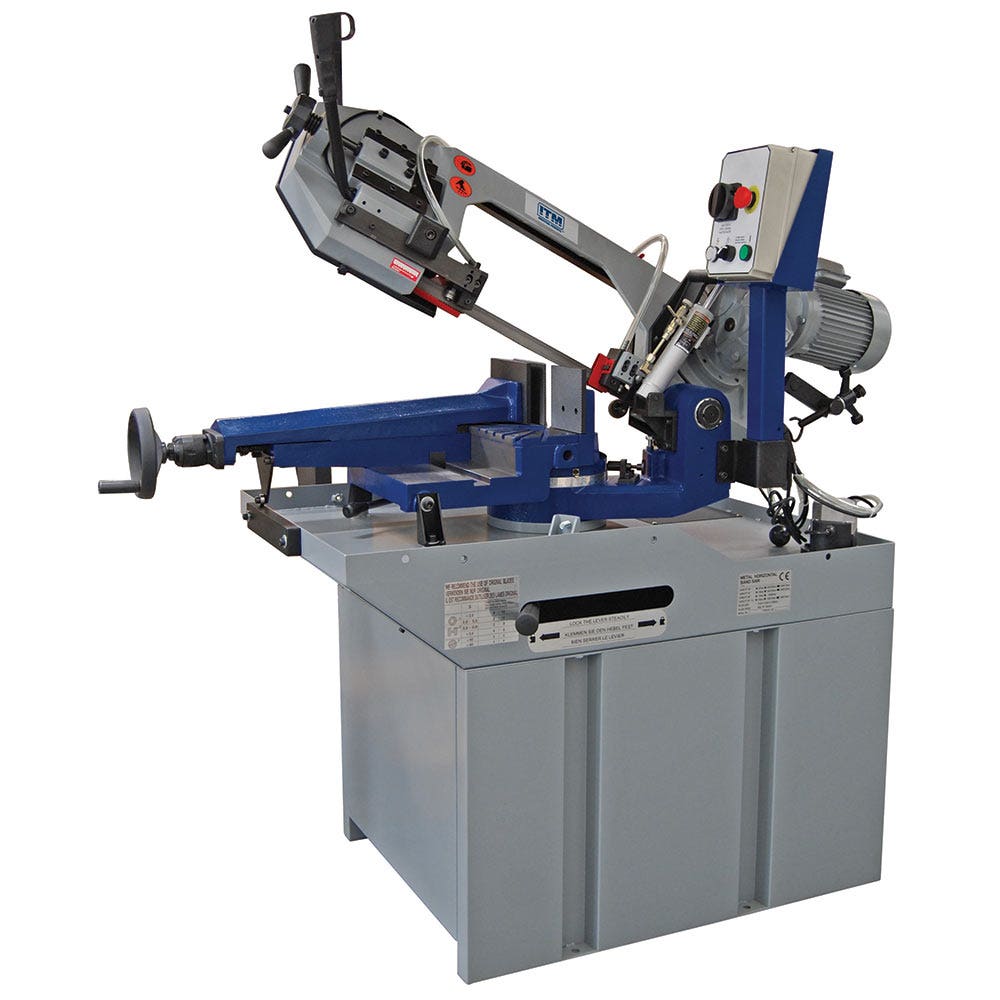

ITM 227mm Swivel Head Dual Mitre Bandsaw 3 Phase WP275DS-3

Features

• 2 Way swivel head for 0° to 60° mitre cuts
• Dual mode operation available
• Trigger switch with manual downfeed for quick cuts
• Control panel with adjustable hydraulic down feed
• Automatic shut-off at end of cut for large materials
• Heavy-duty vice with dual direction
• Built-in recirculating coolant system
• Brass chip brush to prevent blade breakage
• Adjustable material stop for repetitive cuts
• Includes stand and blade
• Cutting capacity: 90° Round: 227mm, Box: 220 x 220mm, Rectangle: 260 x 110mm
• Cutting capacity: 45° Right Round: 150mm, Box: 145 x 145mm, Rectangle: 200 x 125mm
• Cutting capacity: 60° Right Round: 90mm, Box: 85 x 85mm
• Cutting capacity: 45° Left Round: 110mm, Box: 110 x 110mm, Rectangle: 160 x 110mm

Specifications

• Motor: 1.5HP Three Phase
• Blade Speed: 2 Speed 36 / 72mpm
• Blade Size: 27mm x 0.9mm x 2455mm
• Bed Height: 900mm
• Weight: 285kg
• Part No: WP275DS-3
• Barcode: 9328042021908
• Brand: ITM
• Warranty: 1 Year
