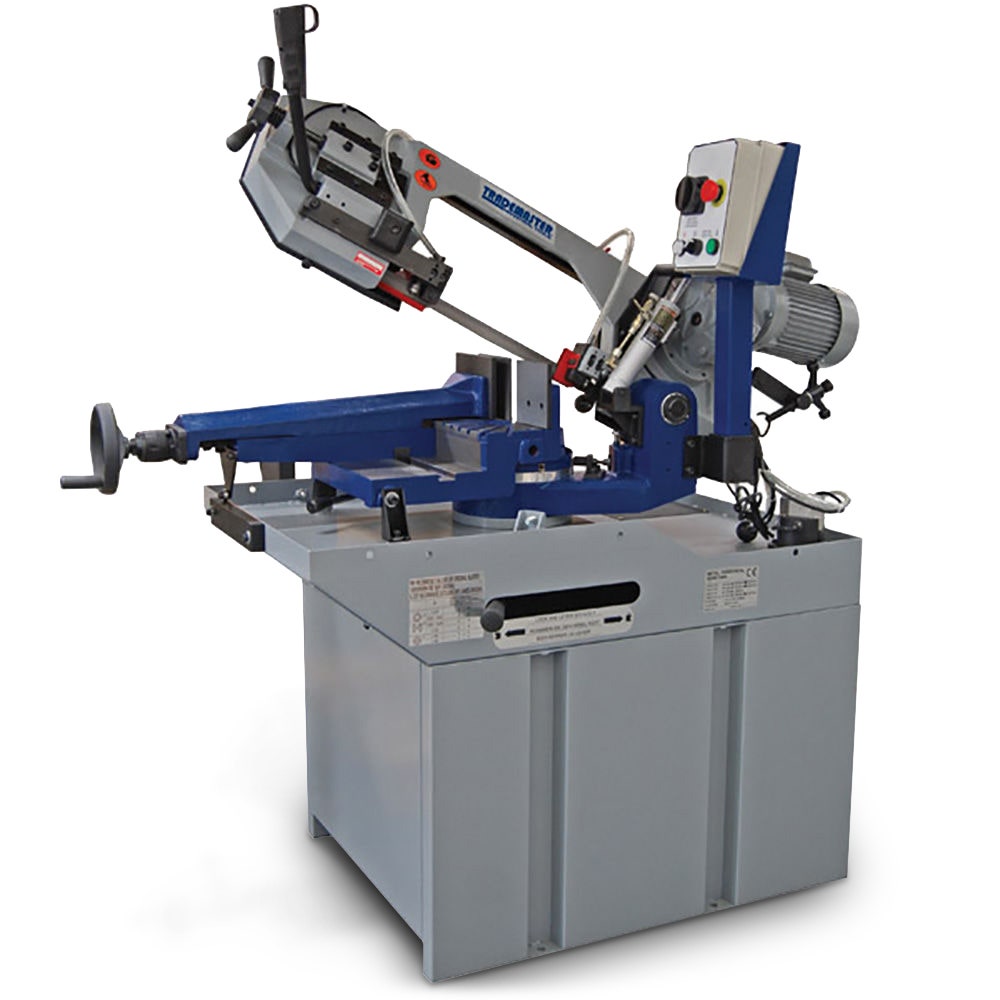

ITM 227mm 240V Swivel Head Dual Mitre Bandsaw WP275DS-1

Features

• 2 Way swivel head for mitre cuts from 0° to 60°
• Dual mode operation available
• Manual downfeed trigger switch for quick cuts
• Control panel with adjustable hydraulic down feed
• Automatic shut-off feature at end of cut
• Heavy-duty vice with dual direction
• Integrated recirculating coolant system
• Brass chip brush to reduce blade breakage
• Adjustable material stop for repetitive cutting
• Includes stand and blade

Specifications

• Motor: 1.5HP Single Phase
• Blade Speed: Single Speed 72mpm
• Blade Size: 27mm x 0.9mm x 2455mm
• Bed Height: 900mm
• Weight: 285kg
• Cutting Capacity: 90° - Round: 227mm / Box: 220 x 220mm / Rectangle: 260 x 110mm
• Cutting Capacity: 45° Right - Round: 150mm / Box: 145 x 145mm / Rectangle: 200 x 125mm
• Cutting Capacity: 60° Right - Round: 90mm / Box: 85 x 85mm
• Cutting Capacity: 45° Left - Round: 110mm / Box: 110 x 110mm / Rectangle: 160 x 110mm
