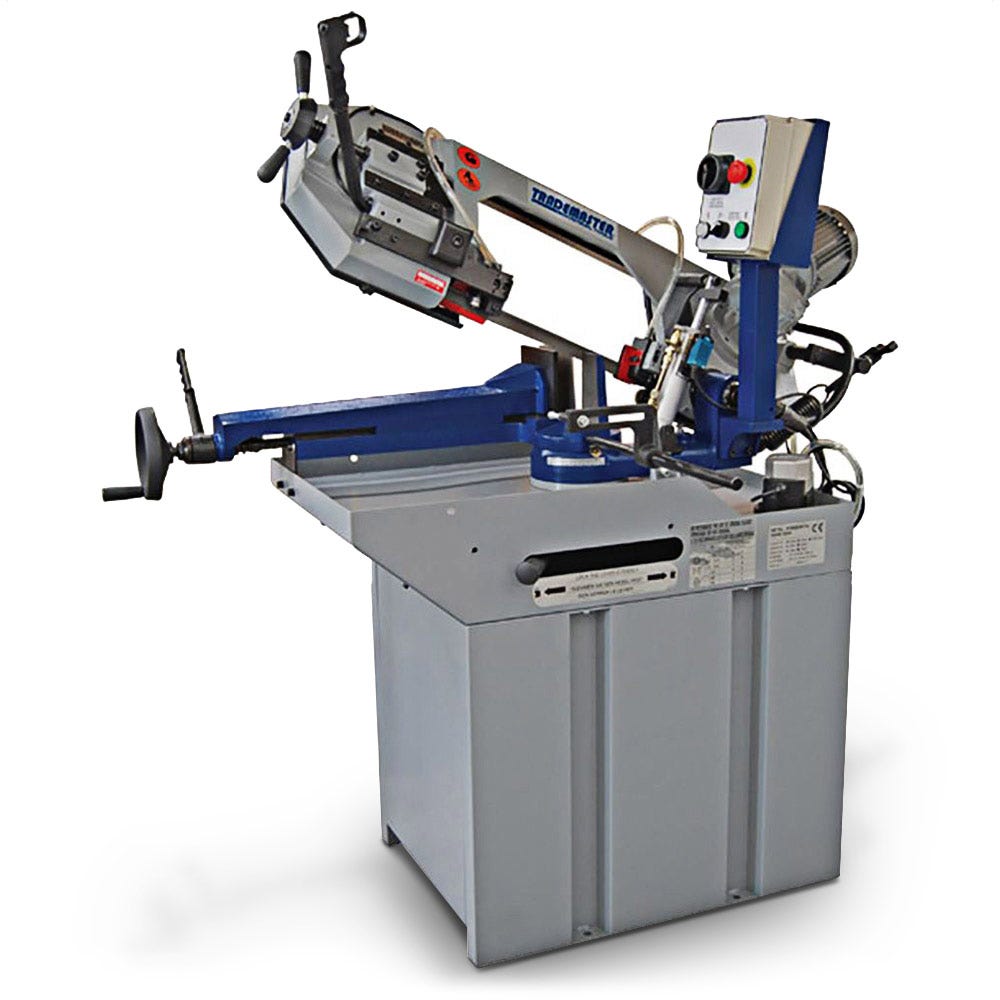

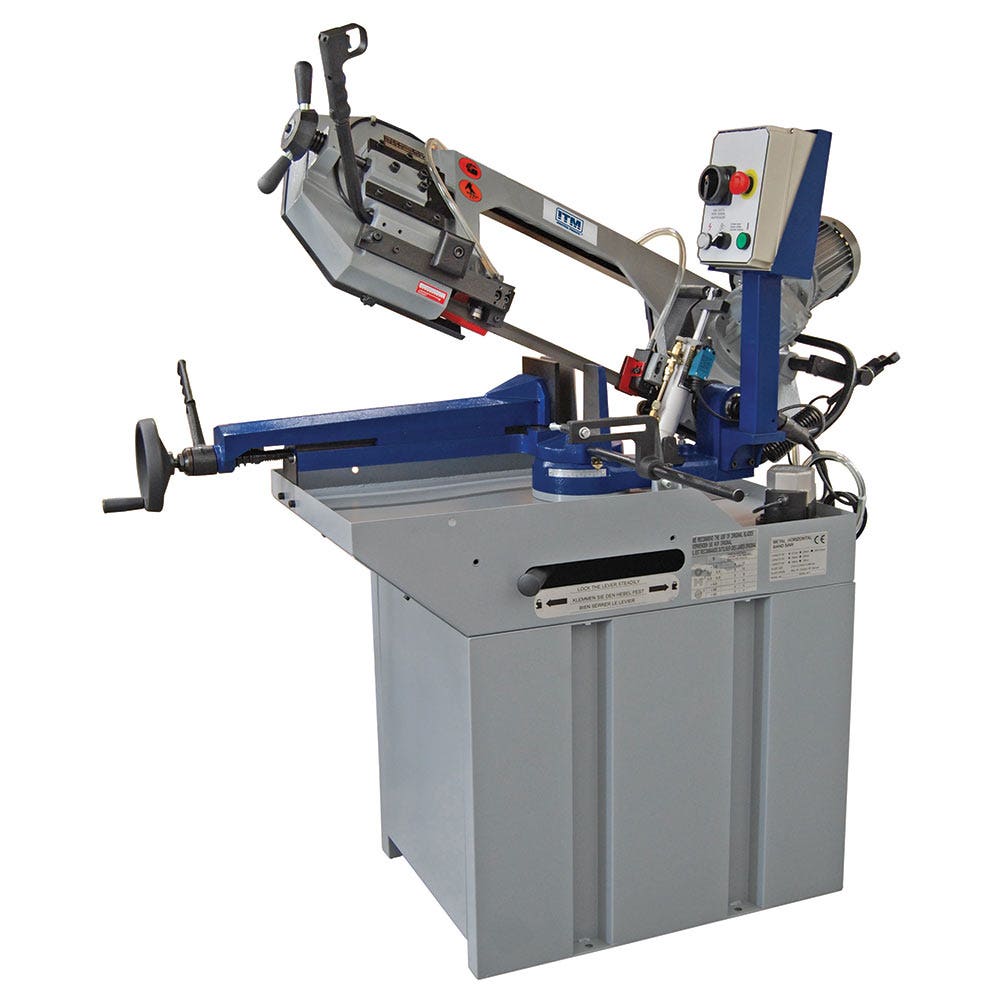

ITM 227mm 240V Swivel Head Bandsaw WP270SH-1

Features

• Swivel head allows 0 to 60 degree mitre cuts
• Dual mode operation with trigger switch for manual downfeed
• Control panel features adjustable hydraulic downfeed
• Automatic shut-off at end of cut for larger materials
• Incorporated recirculating coolant system
• Adjustable material stop for repetitive production
• Bandsaw includes stand and blade

Specifications

• Motor: 1.5HP Single Phase
• Blade Speed: Single Speed 72mpm
• Blade Size: 27mm x 0.9mm x 2460mm
• Bed Height: 885mm
• Weight: 216kgs
• 90° Round Cutting Capacity: 227mm
• 90° Square Cutting Capacity: 220 x 220mm
• 90° Rectangular Cutting Capacity: 260 x 110mm
• 45° Round Cutting Capacity: 150mm
• 45° Square Cutting Capacity: 145 x 145mm
• 45° Rectangular Cutting Capacity: 200 x 145mm
• 60° Round Cutting Capacity: 90mm
• 60° Square Cutting Capacity: 85 x 85mm
