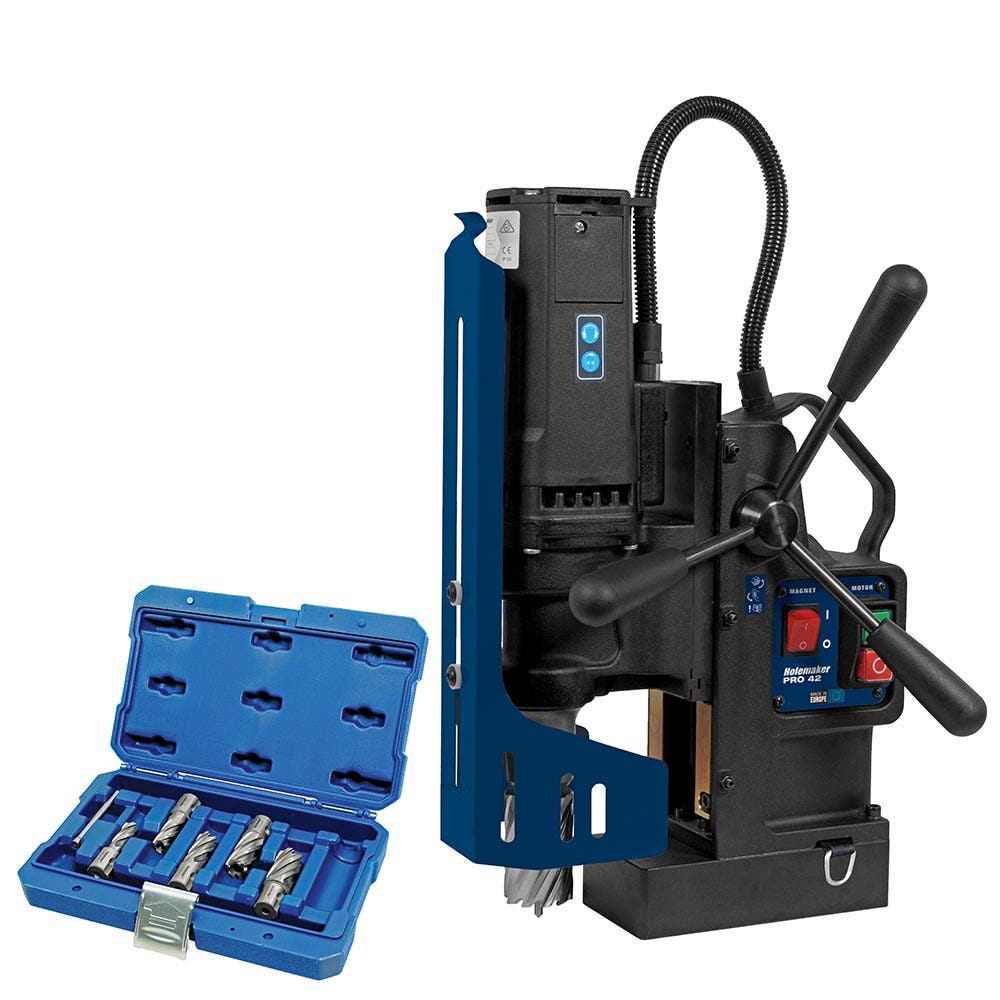

HOLEMAKER PRO42 42 X 52mm Magnetic Base Drill HMPRO42K1

- New generation machines with the latest technology and design.
- New Rigid Frame Design
- Provides increased life of cutting tools.
- New Extra Large 165mm Stroke
- Enables the use of long tooling such as extension arbors and large depth cutters for drilling box section steel in one pass, twist drills, reamers, taps etc.
- Magnetic Field Shape Control (MFSC)
- Provides maximum holding power on thin materials.
- Lightweight & Powerful
- The new generation Holemaker machines are lighter and more powerful than other brands on the market.

Features:

- European made machine
- Extra large 165mm stroke allowing the use of an optional 13mm twist drill chuck
- Through spindle coolant system, with an external side mounted gravity feed coolant tank
- The feed handles can be placed on either the left or right hand side, for increased versatility
- Smart magnet technology to ensure sufficient magnetic adhesion
- Integrated cutter guard for increased user safety
- Supplied in a blow mould plastic carry case
- Grub screw arbor system, which fastens positively onto Holemaker cutters
- 13mm drill chuck SADCA-13 available separately.

Specifications:

- Capacity (Diameter): 42mm
- Capacity (Depth): 52mm
- Capacity (Twist Drills): 10mm (Jobber Drills)
- Capacity (Twist Drills): 13mm (Stub Drills)
- Capacity (Twist Drills): 16mm (Weldon Shank Drills)
- Motor Power: 1020 Watt
- Input Power: 1100 Watt Single Phase 240V
- Speed: 440rpm
- Weight: 12.5kg
- Magnetic Dead Lift: 9,900Nm On 25mm Steel Plate
- Stroke: 165mm
- Height (Min. / Max.): 346 / 511mm
