HiKOKI

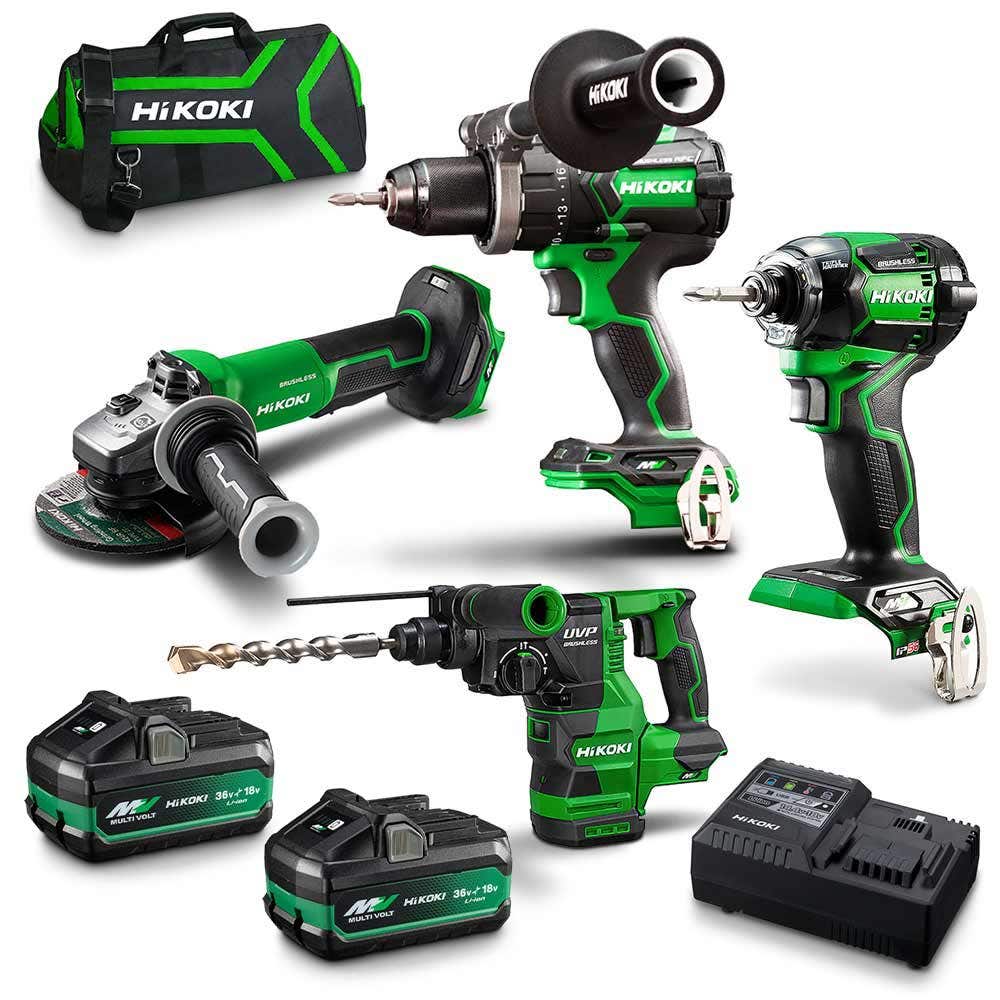

HiKOKI 36V Brushless 4 Piece 2 x 2.5 5.0Ah Combo Kit KC36D4A3(HRZ)
Store rating:Regular price: Was $3,118.00
-
Nationwide Shipping
-
Australian Owned
-
Secure checkout
Other options
Product information
Package Includes
- 1 x HiKOKI 36V 13mm Hammer Drill Skin DV36DC(H4Z)
- 1 x HiKOKI 36V Brushless 28mm SDS-Plus Rotary Hammer Skin DH3628DA(H4Z)
- 1 x HiKOKI 36V Brushless ¼" Impact Driver Skin WH36DC(H4Z)
- 1 x HiKOKI 36V 125mm Angle Grinder w/ Paddle Switch Skin G3613DVF(H4Z)
- 2 x HiKOKI 18V/36V MultiVolt 2.5/5.0Ah Lithium-Ion Battery BSL36A18
- 1 x HiKOKI 18V Battery Charger UC18YSL3(H0Z)

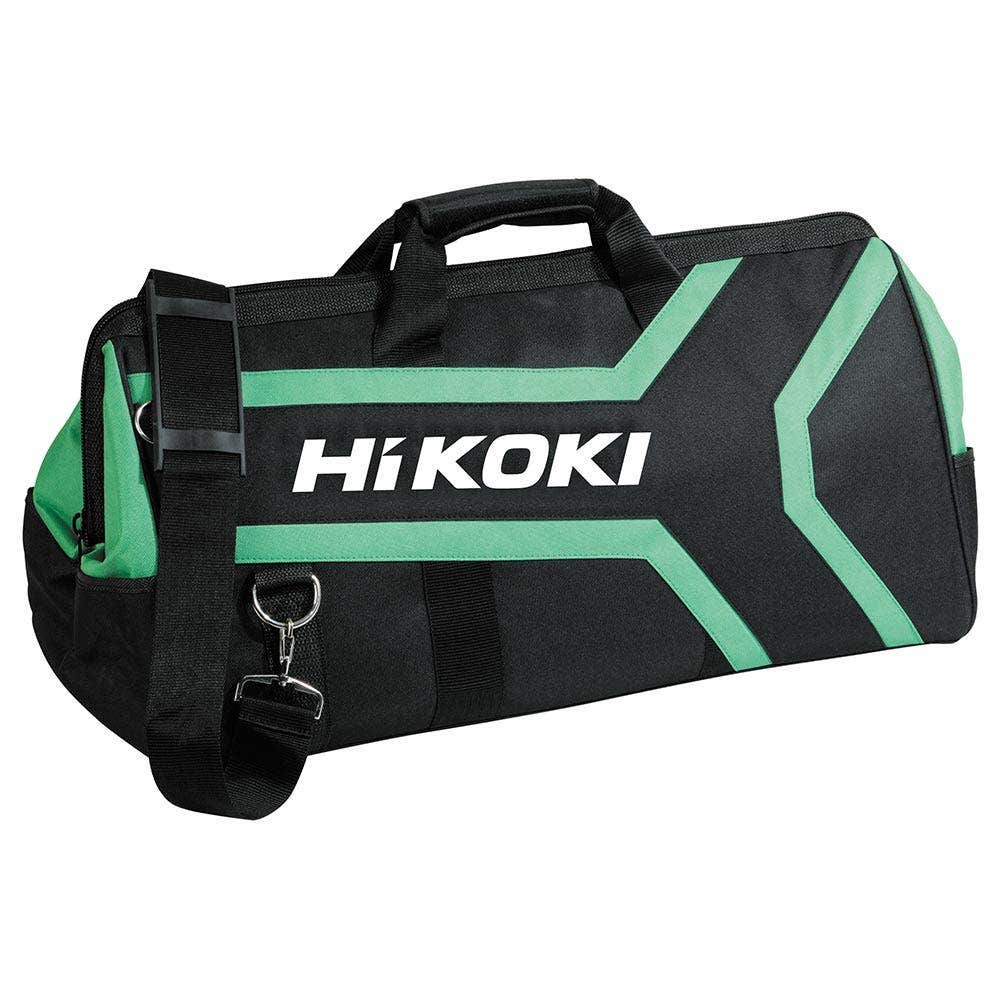

- 1 x HiKOKI Site Bag

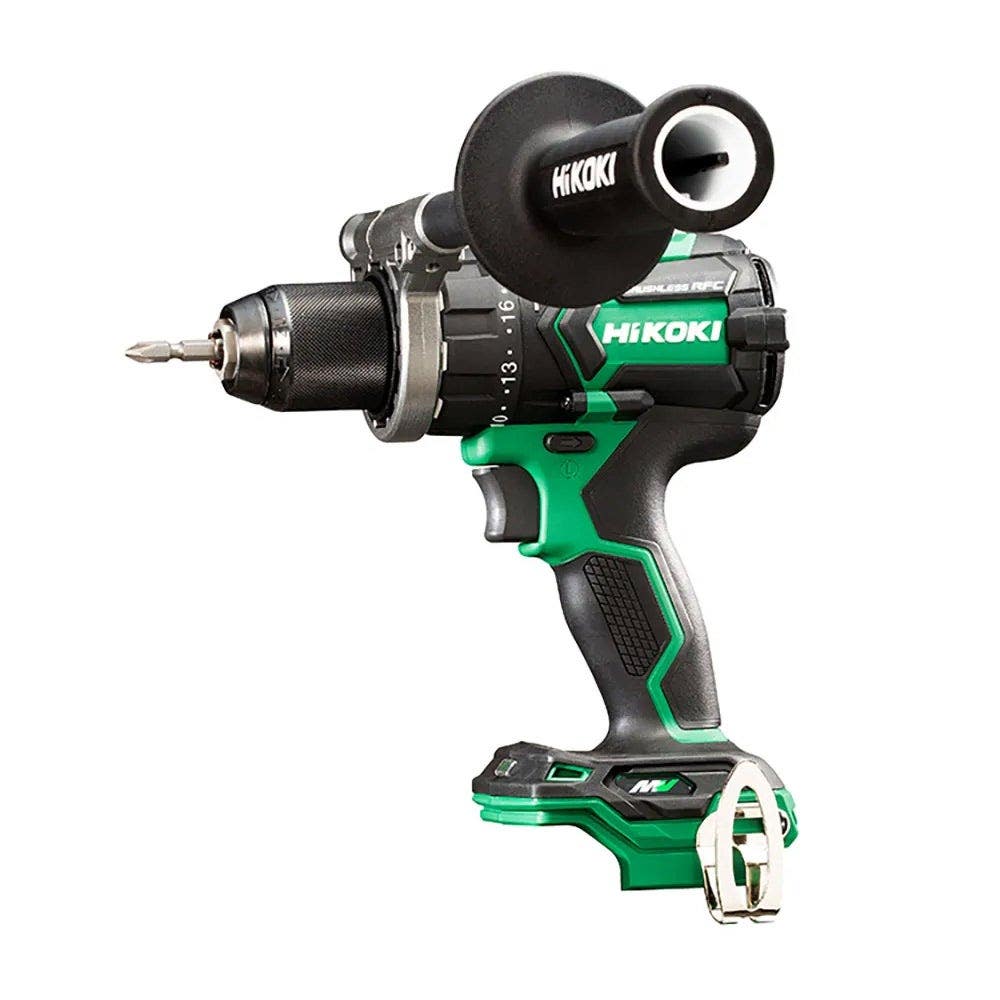

- HiKOKI 36V 13mm Hammer Drill Skin DV36DC(H4Z)
- Whether you're taking on a big job or tightening or loosening screws, the HiKOKI 36V Brushless Impact Driver Drill DV36DC will help you get the job done faster and easier! Featuring Reactive Force Control (RFC), durable design resistant to heat generation and side handle that can be mounted in 11 different positions.
- RFC (Reactive Force Control) - When the gyroscope sensor built in the controller detects a predetermined angle, the motor stops automatically to prevent excessive jerking of the tool
- LED Light warning signals occur with RFC and when the tool is overburdened or overheats
- Due to the highly durable design that is resistant to heat generation, it is difficult to stop even during continuous work
- The side handle can be mounted in 11 different positions to improve workability
- Compatible with the HiKOKI MultiVolt battery (sold separately)
Specifications
| Specification | Details |
|---|---|
| Switch type | Trigger |
| Drill chuck type | Keyless metal chuck |
| Chuck capacity | 1.5-13mm |
| Light | LED White |
| Clutch stages | 22 (Torque 1.5 -8.0Nm) |
| Maximum Torque Hard Joint | 155Nm |
| Maximum Torque Soft Joint | 100Nm |
| No load speed - low | 0-550rpm |
| No load speed - high | 0-2200rpm |
| Capacity: | |
| Brick & Masonary | 22mm |
| Steel & Aluminium | 20mm |
| Wood hole saw | 118mm |
| Wood self feed bit | 95mm |
| Small screw | M6 |
| Wood screw | M16 x 100mm |
| RFC (Reactive Force Control) | Yes |
| Forward / Reverse Mode | Yes |

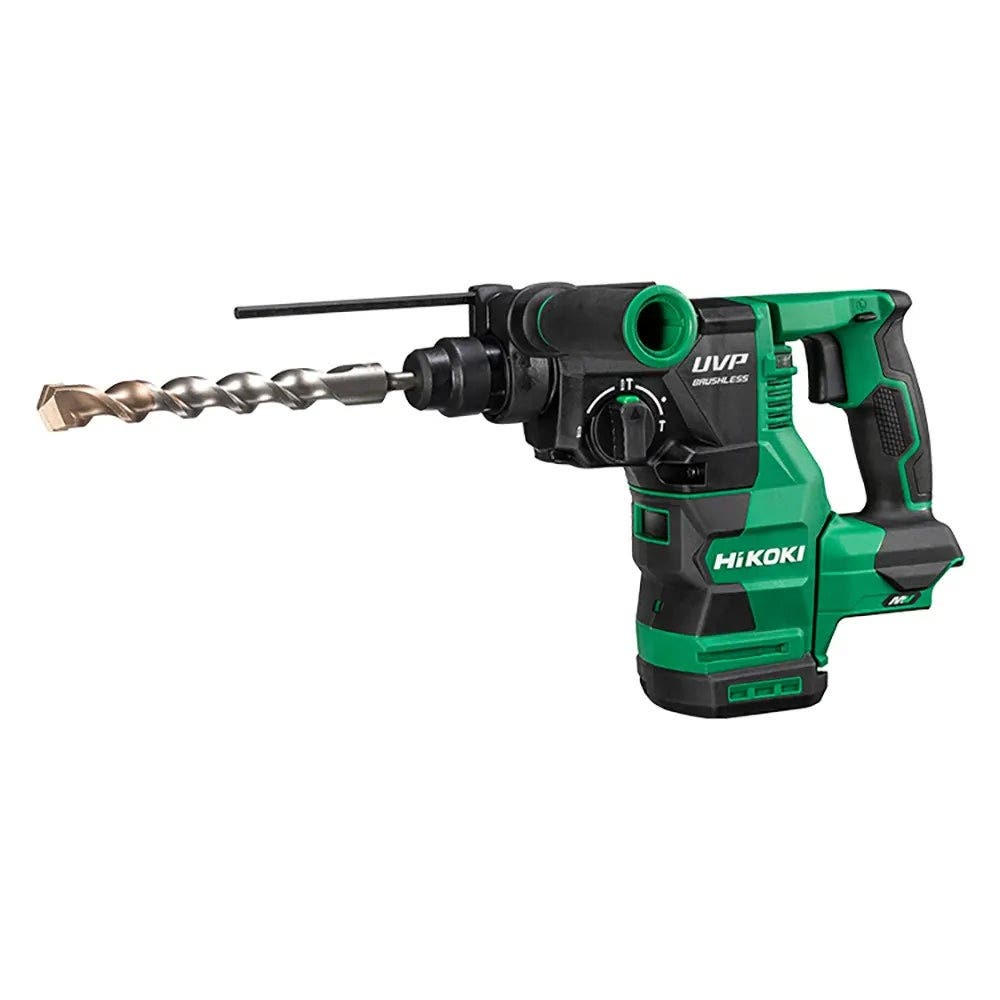

| HiKOKI 36V Brushless 28mm SDS-Plus Rotary Hammer Skin DH3628DA(H4Z) | |
| High drilling speed and chiseling performance with impact energy 3.2 Joules | |
| UVP (User Vibration Protection) - Dynamic vibration absorber & Low vibration handle | |
| RFC (Reactive Force Control) to stop the tool jerking excessively | |
| Switch type | Variable speed trigger switch |
| Impact energy | 3.2J |
| Drilling Range Capacity: | |
| Concrete drill bit | 3.4 - 28mm |
| Concrete core bit | 25 - 50mm |
| Steel | 13mm |
| Wood | 32mm |
| Full load impact rate | 0 - 4,300bpm |
| No-load rotation speed | 0-950rpm |
| 3 operating modes | Hammer only, drilling only & Hammer / Drilling |
| Light | LED |
| UVP (User Vibration Protection) | Yes |
| Low Vibration Handle | Yes |
| RFC (Reactive Force Control) | Yes |
| One-Push Action for Quick Bit Mounting | Yes |
| Constant Speed Control | Yes |
| 2 Step Speed Control | Yes |
| Auto Stop Function | Yes |
| LED level | Yes |

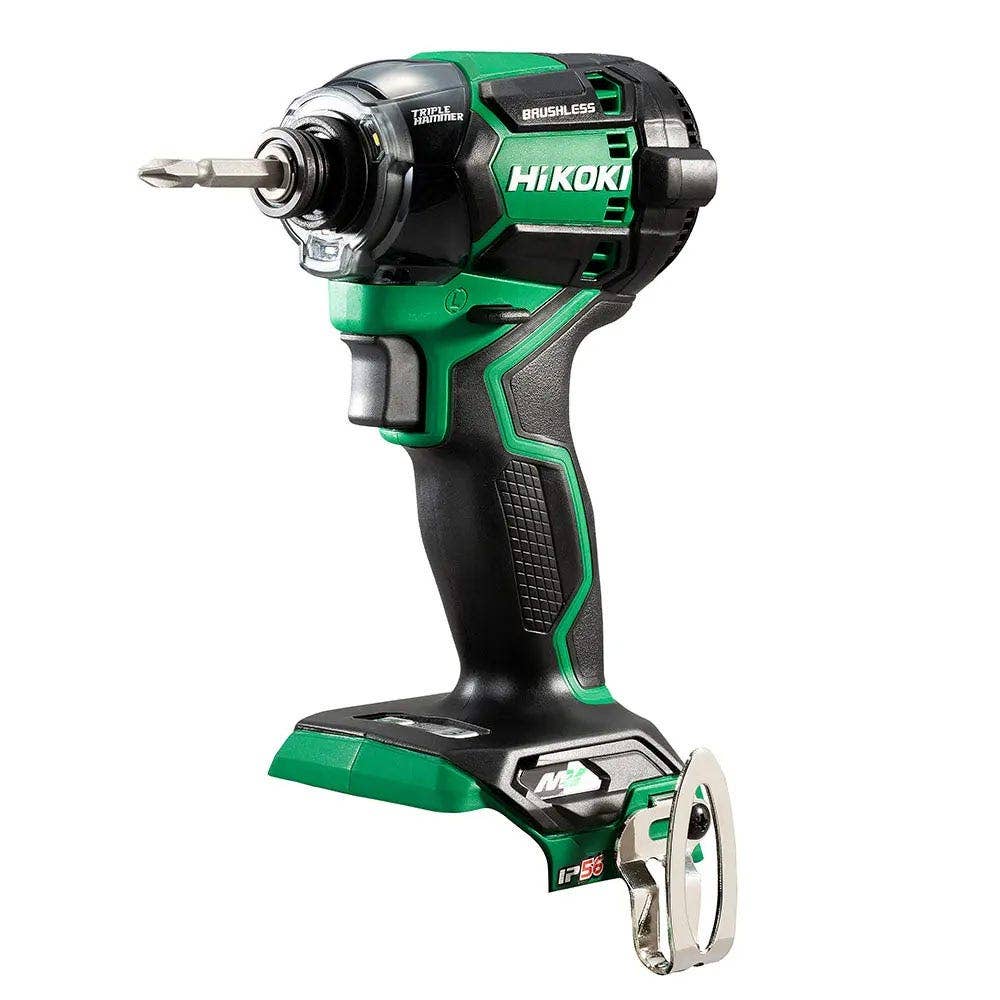

| HIKOKI 36V Brushless ¼" Impact Driver Skin WH36DC(H4Z) | |
| Industry s Most Compact Head and Lightest Weight | |
| High Torque and High Speeds Help You Get the Job Done Quickly | |
| Three LED lights illuminate a wide area without shadows getting in the way. | |
| IP56 Dust and Water Resistant | |
| Drive | 6.35mm |
| Max. Tightening Torque | 215Nm |
| Battery Voltage | 36V |
| Overall Head Length | 114mm |

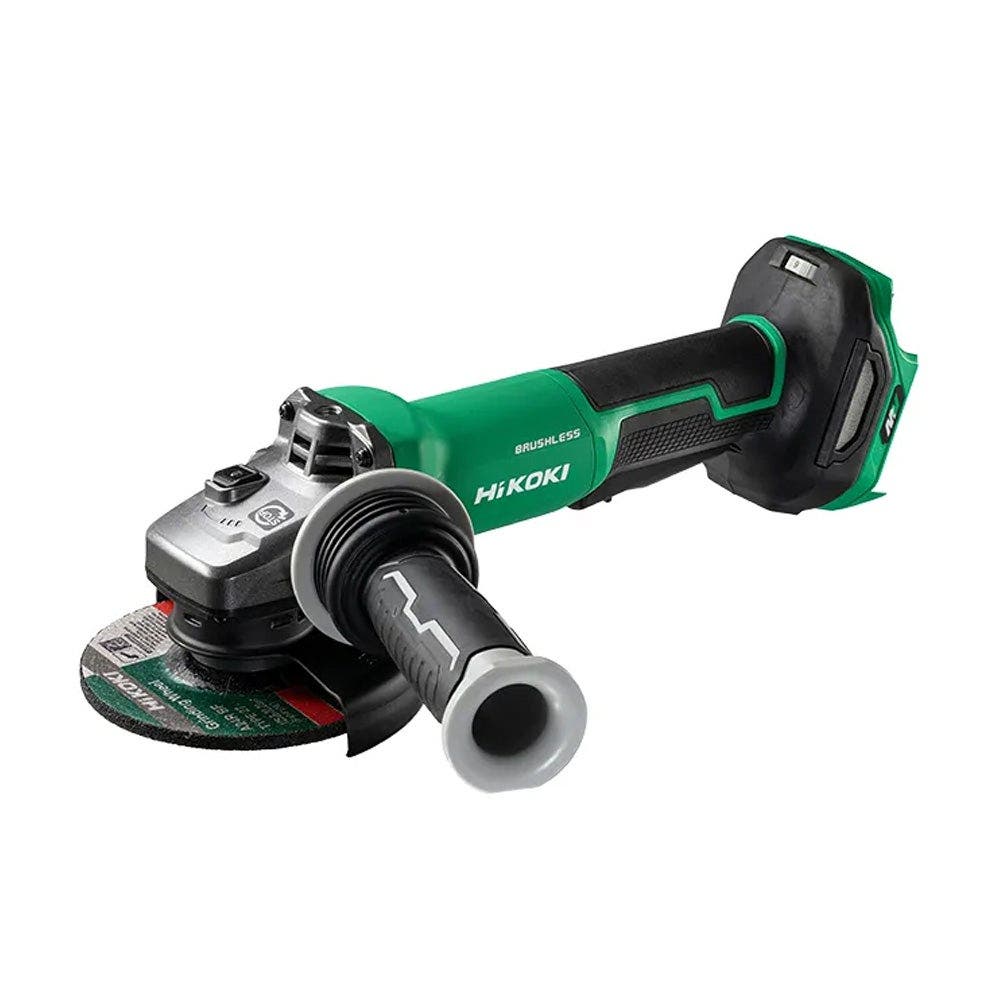

| HiKOKI 36V 125mm Angle Grinder w/ Paddle Switch Skin G3613DVF(H4Z) | |
| Whether you're grinding welded sections or cutting synthetic resins and concrete, this grinder will help you get the job done faster and easier! Featuring a 1500W motor, 56mm grip, brake system, detachable dust filer and side handle that can be mounted in 3 directions. | |
| The high power 1500W motor provides more productive work time | |
| Detachable filter as standard | |
| Paddle Switch | |
| Side handle can be mounted in 3 directions | |
| Toolless wheel guard | |
| Safety functions - Brake Function, Kick Back Protection | |
| System, Soft Start, 0 Voltage Restart Protection & Overload Protection | |
| LED status indicator | |
| Switch type | Paddle |
| Brake Function | Yes |
| 0 Voltage Restart Protection | Yes |
| Soft Start | Yes |
| Overload Protection | Yes |
| Variable Speed Control Dial | Yes, 6 settings |
| Kick Back Protection System | Yes |
| Changeable dust filter | Yes |
| Spindle Lock | Yes |
| 3 Position side handle | Yes |
| Light LED | Yes |
| Grinding Wheel Ø | 125mm Ø |
| Grinding Wheel bore Ø | 22.23mm Ø |

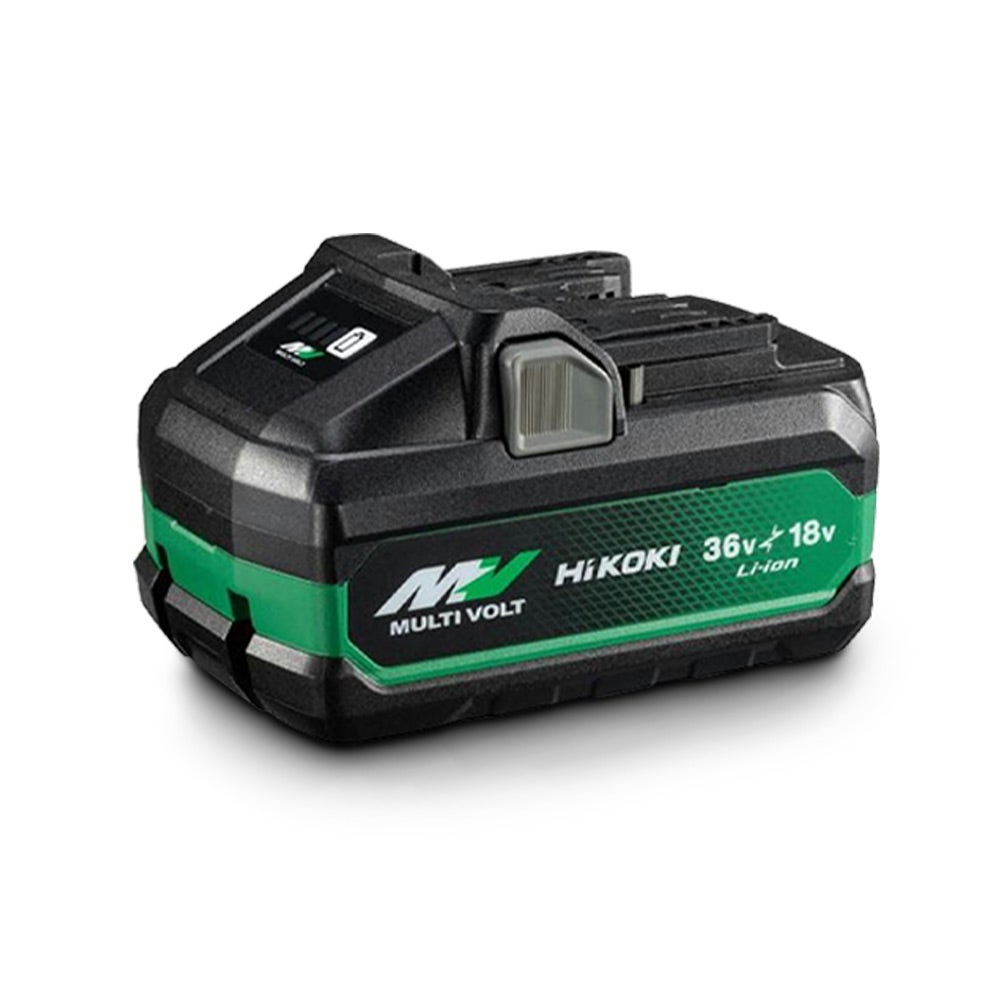

| HiKOKI 18V/36V MultiVolt 2.5/5.0Ah Lithium-Ion Battery BSL36A18 | |
| The HiKOKI BSL36A18 18V/36V 5.0Ah Multi-Volt High Power 1080W Battery offers over 1000 watts for cordless power in nearly the same compact and lightweight size as HiKOKI standard battery models. | |
| The BSL36A18 Multi Volt Battery automatically changes between 36V and 18V making it compatible with all of HiKOKI's current slide range as well as being able to give 36V when needed. | |
| 1080W Power and compact & lightweight (almost the same size and weight as an 18V BSL1850 or 60 battery) with 18,650 cells | |
| Automatic voltage change between 36V and 18V | |
| Remaining battery indicators display the charging state in 4 stages | |
| Battery Composition | Li-ion |
| Voltage & Capacity | 36V-2.5Ah / 18V-5.0Ah |
| Cooling System | Yes |
| Charging Time | Approx. 32 min (when using the UC 18YSL3) |
| Compatible Chargers | All chargers compatible with slide-type Lithium-ion batteries |
| Battery Level Indicator | 4 Stage |

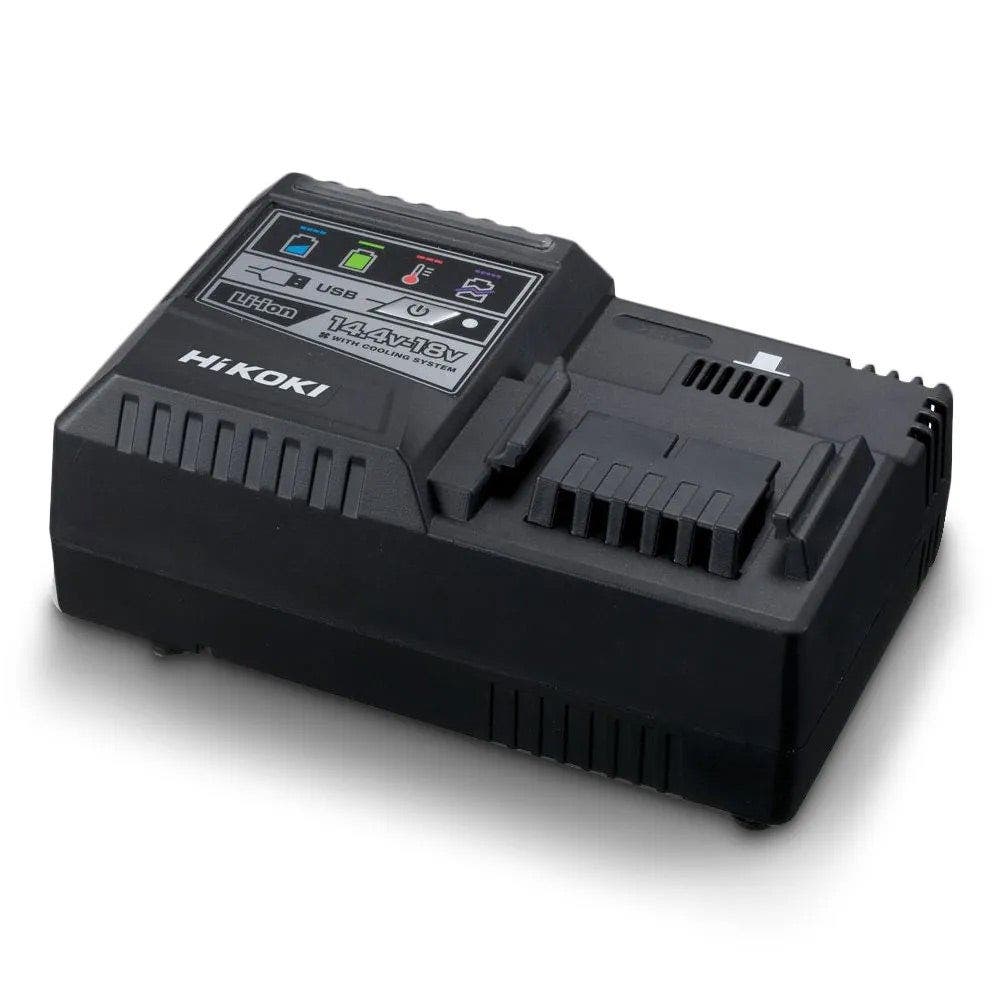

| HiKOKI 18V Battery Charger UC18YSL3(H0Z) | |
| HiKOKI's Rapid Charger charges 14.4V and 18V slide batteries in record time. | |
| Cooling feature helps cool battery during charging or before charging commences to prevent battery overheating ensuring extended battery life | |
| Preventative mechanism against charging a hot battery to extend battery life | |
| 3 way overcharge protection system to ensure battery is not overcharged | |
| Two colour indicator light to indicate what stage of charging the battery is in | |
| USB port for charging mobile devices | |
| Part No | KC36D4A3(HRZ) |
| Brand | HiKOKI |
| Barcode | 9323624001675 |
| Warranty | 3 Year (6 Years Extended Warranty if registered through HiKOKI Australia website) |
| Combo Kit | 4 Piece |
| Corded / Cordless | Cordless |
| Brushless/Brushed | Brushless |
| Voltage | 36V |
| Batteries Supplied | 2x5.0Ah/2.5Ah |
| Battery Capacity | 2.5Ah & 5.0Ah |
| Battery / Manual | Battery |
